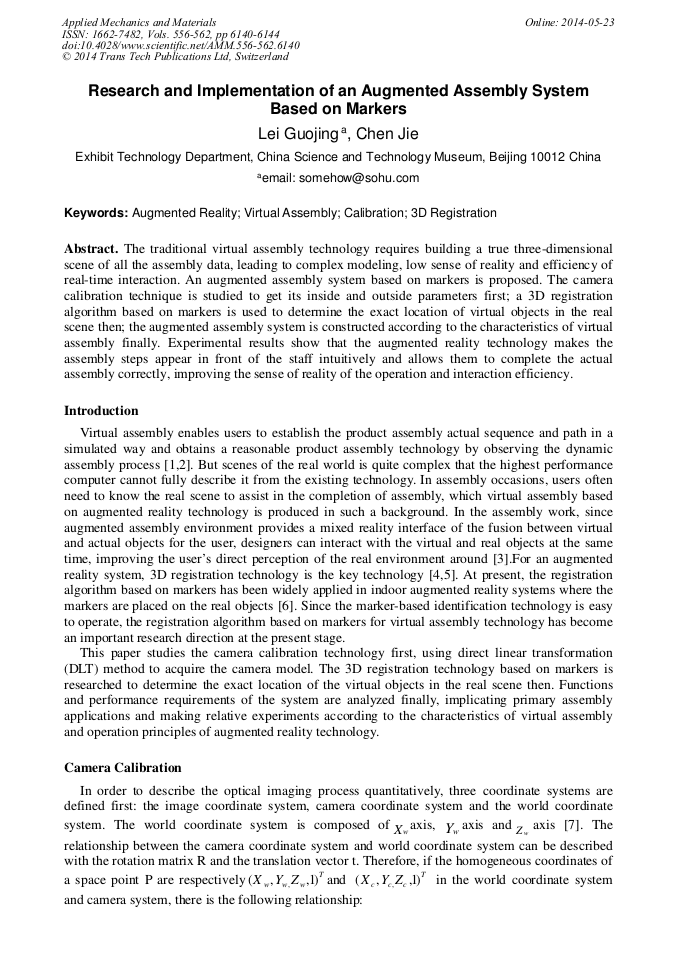

Research and Implementation of an Augmented Assembly System Based on Markers

Abstract:

The traditional virtual assembly technology requires building a true three-dimensional scene of all the assembly data, leading to complex modeling, low sense of reality and efficiency of real-time interaction. An augmented assembly system based on markers is proposed. The camera calibration technique is studied to get its inside and outside parameters first; a 3D registration algorithm based on markers is used to determine the exact location of virtual objects in the real scene then; the augmented assembly system is constructed according to the characteristics of virtual assembly finally. Experimental results show that the augmented reality technology makes the assembly steps appear in front of the staff intuitively and allows them to complete the actual assembly correctly, improving the sense of reality of the operation and interaction efficiency.

• Periodical: Applied Mechanics and Materials (Volumes 556-562)
• Pages: 6140-6144
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.556-562.6140
• Online since: May 2014
• Authors: Guo Jing Lei*, Jie Chen
• Keywords: 3D Registration, Augmented Reality, Calibration, Virtual Assembly

References

[1] Gao Jian, Wang Shouzun, Ma Liangli. Research on Universality of Virtual Assembly and Its Application[J]. Computer Applications and Software. 2013, 30(10): 216-219.

[2] Zhang Zhixian, Liu Jianhua. Physical Assembly Process Simulation Based on Multi-rigid-body Dynamics in Virtual Assembly[J]. Journal of Mechanical Engineering. 2013, 19(5): 90-98.

DOI: 10.3901/jme.2013.05.090

[3] Luo Bin, Wang Yongtian. Overview of Hybrid Tracking in Augmented Reality[J]. Acta Automatica Sinica. 2013, 39(8): 1185-1201.

DOI: 10.3724/sp.j.1004.2013.01185

[4] Ruobing Yang. The Study and Improvement of Augmented Reality Based on Feature Maching[J]. Software Engineering and Service Science. 2011, 2(15): 586-589.

DOI: 10.1109/icsess.2011.5982388

[5] Xu Wenlong. Key Technology Research of the Augmented Reality Actual Registration Based on Vision[D]. Bei Jing: Beijing University of Chemical Technology, (2013).

[6] Gao X, Hu H, etc. 3-D Augmented Reality Teleoperated Robot System Based on Dual Vision[J]. The Journal of China University of Posts and Telecommunications. 2011, 18(1): 105-112.

DOI: 10.1016/s1005-8885(10)60035-0

[7] Huang Kan. Research and Application on the Algorithms of Camera Calibration on Computer Stereo Vision[D]. Shenyang: Shenyang University of Technology, (2007).

[8] Xiong Youjun, Li Shiqi, Liu Zuguo. Research on Augmented Reality of Tracking Registration[J]. Application Research of Computers. 2005, 22(4): 81-83.

[9] Meng YueHua, Deng Jiyuan. Application and Development of DirectShow Technology[J]. Computer Systems & Applications. 2013, 1(6): 196-199.

[10] Wen Kun, Gao Shengfa. The Program Design Principle and Application of DirectShow[J]. Computer Systems & Applications. 2006, 2(3): 25-28.

[11] Yang Geng. Study of System on Image Recognition and Tracking of Moving Object[J]. Measurement & Control. 2005. 13(3): 267-269.
