Effects of the Type of Cement and the Concentration of CO₂ on the Carbonation Rate of Portland Mortars

Abstract:

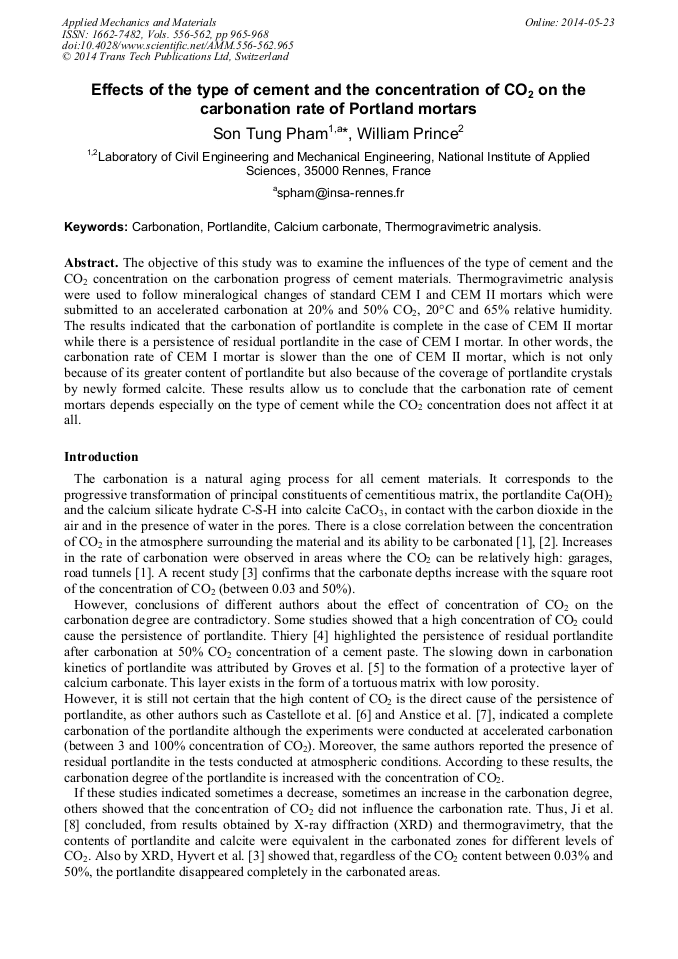

The objective of this study was to examine the influences of the type of cement and the CO₂ concentration on the carbonation progress of cement materials. Thermogravimetric analysis were used to follow mineralogical changes of standard CEM I and CEM II mortars which were submitted to an accelerated carbonation at 20% and 50% CO₂, 20°C and 65% relative humidity. The results indicated that the carbonation of portlandite is complete in the case of CEM II mortar while there is a persistence of residual portlandite in the case of CEM I mortar. In other words, the carbonation rate of CEM I mortar is slower than the one of CEM II mortar, which is not only because of its greater content of portlandite but also because of the coverage of portlandite crystals by newly formed calcite. These results allow us to conclude that the carbonation rate of cement mortars depends especially on the type of cement while the CO₂ concentration does not affect it at all.

• Periodical: Applied Mechanics and Materials (Volumes 556-562)
• Pages: 965-968
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.556-562.965
• Online since: May 2014
• Authors: Son Tung Pham*, William Prince
• Keywords: Calcium Carbonate, Carbonation, Portlandite, Thermogravimetric Analysis

References

[1] P. Nischer, 1984, Effect of environment and concrete quality on carbonation, Betonwerk + Fertigteil-Technik, n°11, pp.752-757.

[2] L.J. Parrott, A review of carbonation in reinforced concrete, Cement and Concrete Association, 1987, 41 pages.

[3] N. Hyvert, A. Sellier, F. Duprat, P. Rougeau, P. Francisco, Dependency of C-S-H carbonation rate on CO2 pressure to explain transition from accelerated tests to natural carbonation, Cement and Concrete Research, Vol 40, 2010, p.1582 – 1589.

DOI: 10.1016/j.cemconres.2010.06.010

[4] M. Thiery, Modelling of atmospheric carbonation of cement based materials considering the kinetic effects and modifications of the microstructure, PhD Thesis, L'école nationale des ponts et chausses, (2005).

[5] G.W. Groves, A. Brough, I.G. Richardson, C.M. Dobson, Progressive changes in the structure of hardened C3S cement pastes due to carbonation, Journal of American Ceramic Society, Vol 74, Issue 11, 1991, p.2891–2896.

DOI: 10.1111/j.1151-2916.1991.tb06859.x

[6] M. Castellote, L. Fernandez, C. Andrade, C. Alonso, Chemical changes and phase analysis of OPC pastes carbonated at different CO2 cocentrations, Materials and Structures, Vol 42, Issue 4, 2009, p.515 – 525.

DOI: 10.1617/s11527-008-9399-1

[7] D.J. Anstice, C.L. Page, M.M. Page, The pore solution phase of carbonated cement pastes, Cement and Concrete Research, Vol 35, Issue 2, 2005, pp.377-383.

DOI: 10.1016/j.cemconres.2004.06.041

[8] Y. Ji, Y. Yuan, J. Shen, Y. Ma, S. Lai, 2010, Comparison of concrete carbonation process under natural condition and high CO2 concentration environments, Journal of Wuhan University of Technology – Materials, Vol 25, Issue 3, 2010, pp.515-522.

DOI: 10.1007/s11595-030-0034-y

[9] F.Z. Darkhmouche, Carbonatation des béton adjuvants à base de ressources locales algériennes, PhD Thesis, Université d'Orléans, (2009).
