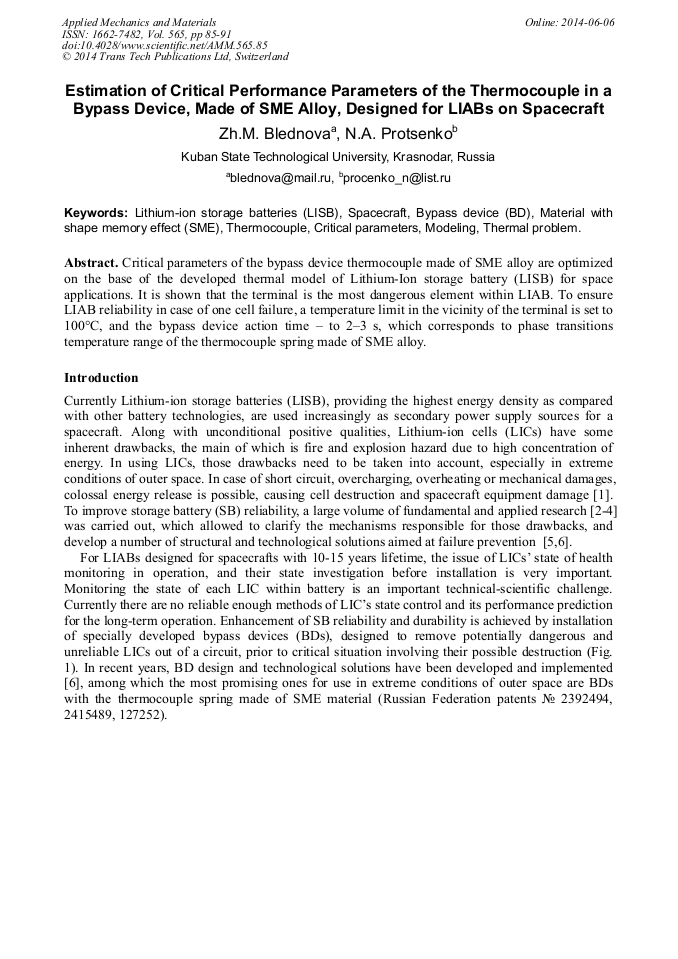

Estimation of Critical Performance Parameters of the Thermocouple in a Bypass Device, Made of SME Alloy, Designed for LIABs on Spacecraft

Abstract:

Critical parameters of the bypass device thermocouple made of SME alloy are optimized on the base of the developed thermal model of Lithium-Ion storage battery (LISB) for space applications. It is shown that the terminal is the most dangerous element within LIAB. To ensure LIAB reliability in case of one cell failure, a temperature limit in the vicinity of the terminal is set to 100°C, and the bypass device action time – to 2–3 s, which corresponds to phase transitions temperature range of the thermocouple spring made of SME alloy.

• Periodical: Applied Mechanics and Materials (Volume 565)
• Pages: 85-91
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.565.85
• Online since: June 2014
• Authors: Zhesfina Blednova*, N.A. Protsenko
• Keywords: Bypass Device (BD), Critical Parameters, Lithium-Ion Storage Batteries (LISB), Material with Shape Memory Effect (SME), Modeling, Spacecraft, Thermal Problem, Thermocouple

References

[1] M.V. Luk'yanenko, V.S. Kudryashov/ Spacecrafts energy equipment and on-board power supplies / Bulletin of Siberian State Aero-space University named after M. F Reshetnev. 2008. № 1. P. 141-145. (in Russian).

[2] Gang, Ning, Branko N. Popov. Capacity fade study of lithium-ion batteries cycled at high discharge rates. / Journal of Power Sources. – 2003. – № 117. – P. 160-169. doi: 10. 1016/S0378-7753(03)00029-6.

DOI: 10.1016/s0378-7753(03)00029-6

[3] Meng Guo, Ralph E. White. Thermal Model for Lithium Ion Battery Pack with Mixed Parallel and Series Configuration. J. Electrochem. Soc. 2011, 158 (10), A1166-A1176.

DOI: 10.1149/1.3624836

[4] Е.А. Nizhnikovskiy/ Sources of autonomous power supply for operation in extreme conditions /Russian Chemical Journal. 2006,Т. 1, № 5. P. 102-112. (in Russian).

[5] Blednova Zh.M., Galkin V.V., Makhutov N.А., Protsenko N.A. Ways of safety and lifetime insurance for Lithium-Ion storage batteries for space application / Problems of safety and emergency. 2010. №1. - P. 43-54. (in Russian).

[6] Zh.M. Blednova, N.A. Protsenko. Ensuring reliability of Lithium- ion batteries for space applications using functional shape memory materials. Advanced Materials Research, Vol. 772, Trans Tech Publications (2013).

DOI: 10.4028/www.scientific.net/amr.772.693

[7] Zh.M. Blednova, N.А. Makhutov, N.А. Protsenko. Ensuring reliability of Lithium-ion batteries for space applications using functional shape memory materials. / Problems of mechanical engineering and automatization, 2013 - № 12. – P. 3-13. (in Russian).

DOI: 10.4028/www.scientific.net/amr.772.693

[8] Zh.M. Blednova, V. Yu. Lapshin, N.A. Protsenko/ Estimation of LISB thermo-physical parameters on the base of energy-balance model / Transactions of Academenergo, 2011 - № 2. – P. 117-127. (in Russian).

[9] S.V. Patankar. Numerical methods for solving problems of heat exchange and dynamics of liquid. - M.: Energoatomizdat, 1984. – 152 p. (in Russian).

[10] N.A. Protsenko, Zh.M. Blednova Structural-mechanical Control of Bypass Reactivity in LISB for Space Application using Shape Memory Alloys. Materials Science Forum Vols. 738-739 Trans Tech Publications, Switzerland (2013).

DOI: 10.4028/www.scientific.net/msf.738-739.601

[11] V.V. Galkin, Zh.М. Blednova, N.А. Protsenko. Reliability and life time estimation of LISB bypass device with a spring made of SME materials for space application, taking into account technological and operational factors, Polyot, № 5 (2012).
