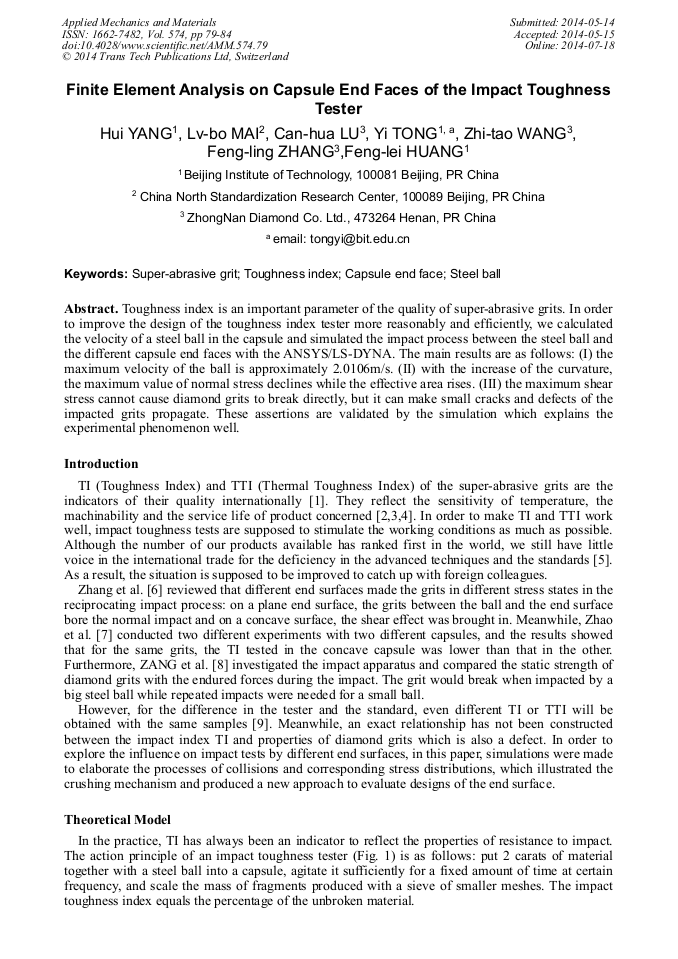

Finite Element Analysis on Capsule End Faces of the Impact Toughness Tester

Abstract:

Toughness index is an important parameter of the quality of super-abrasive grits. In order to improve the design of the toughness index tester more reasonably and efficiently, we calculated the velocity of a steel ball in the capsule and simulated the impact process between the steel ball and the different capsule end faces with the ANSYS/LS-DYNA. The main results are as follows: (I) the maximum velocity of the ball is approximately 2.0106m/s. (II) with the increase of the curvature, the maximum value of normal stress declines while the effective area rises. (III) the maximum shear stress cannot cause diamond grits to break directly, but it can make small cracks and defects of the impacted grits propagate. These assertions are validated by the simulation which explains the experimental phenomenon well.

• Periodical: Applied Mechanics and Materials (Volume 574)
• Pages: 79-84
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.574.79
• Online since: July 2014
• Authors: Hui Yang, Lv Bo Mai, Can Hua Lu, Yi Tong*, Zhi Tao Wang, Feng Ling Zhang, Feng Lei Huang
• Keywords: Capsule End Face, Steel Ball, Super-Abrasive Grit, Toughness Index

References

[1] J.X. Zhang, X.F. Huang, N. He, Impact toughness test technique for super-abrasive grits and its application, Diamond & Abrasives Engineering. (2004) 78.

[2] S.H. Zhang, Diamond and diamond tools, Central South University Press, Changsha, (2005).

[3] J.E. Field, C.J. Freeman, Strength and fracture properties of diamond, Philos. Mag. A., 43 (1981) 595-618.

[4] Z. Feng, J.E. Field, Dynamic strengths of diamond grits, Ind. Diamond Rev., 49 (1989) 104.

[5] H.Y. Zhang, Some suggestions to the current standard of synthetic diamond, Diamond & Abrasives Engineering, 6 (2006) 84-86.

[6] X.L. Zhang, Q.G. Zhao, Q.S. Wang, H.L. Gao, Impact toughness test for SCB diamond grits, in: The development of China super-hard Materials Industry and Technology Conference Proceeding, Zhuhai, 2007, pp.135-139.

[7] W.D. Zhao, L.X. Zheng, et al., Some relative factors influencing impact toughness of manmade diamond, Super Hard Material & Gem, 3 (2002) 17-20.

[8] J.B. Zhang, H.X. Wang, Analyse on the Forces on Diamond Grits during Impact Experiment, Diamond & Abrasives Engineering, 5 (2001) 25-26.

[9] B.F. Zhang, Z.H. Zhou, G.P. Liu, Some problems concerned during diamond impact toughness test, Superhard Material Engineering, 5 (2006) 18-20.

[10] FEPA standard for measuring the relative strengths of saw diamond grits, Federation of European Producers of Abrasives 1, Paris, (1994).
