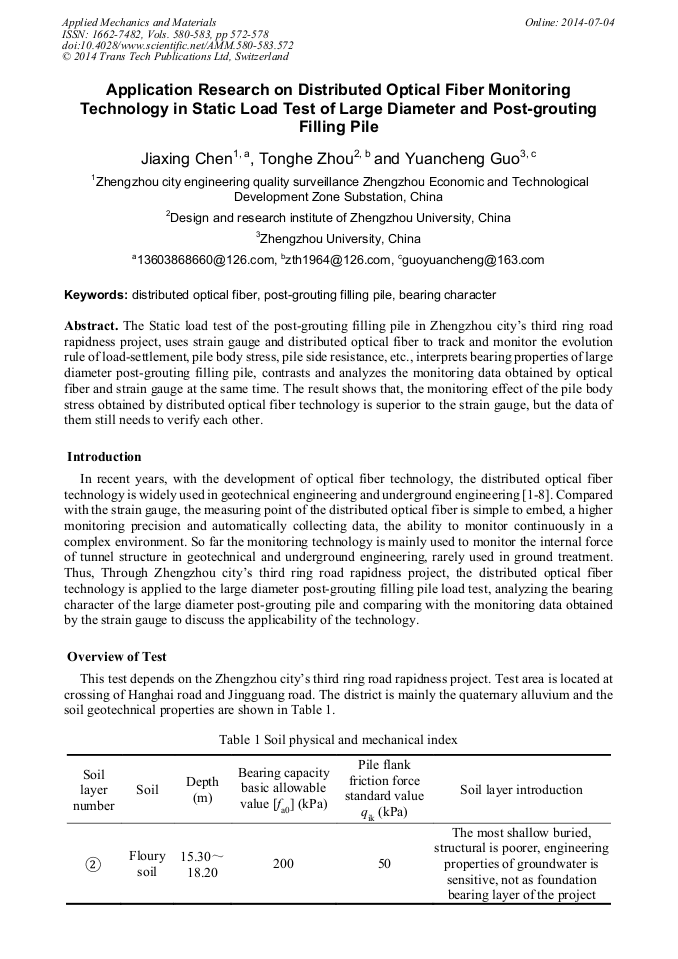

Application Research on Distributed Optical Fiber Monitoring Technology in Static Load Test of Large Diameter and Post-Grouting Filling Pile

Abstract:

The Static load test of the post-grouting filling pile in Zhengzhou city’s third ring road rapidness project, uses strain gauge and distributed optical fiber to track and monitor the evolution rule of load-settlement, pile body stress, pile side resistance, etc., interprets bearing properties of large diameter post-grouting filling pile, contrasts and analyzes the monitoring data obtained by optical fiber and strain gauge at the same time. The result shows that, the monitoring effect of the pile body stress obtained by distributed optical fiber technology is superior to the strain gauge, but the data of them still needs to verify each other.

• Periodical: Applied Mechanics and Materials (Volumes 580-583)
• Pages: 572-578
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.580-583.572
• Online since: July 2014
• Authors: Jia Xing Chen, Tong He Zhou, Yuan Cheng Guo
• Keywords: Bearing Character, Distributed Optical Fiber, Post-Grouting Filling Pile

References

[1] Guangqing Wei, Bin Shi and Xiaokui Yu, etc: BOTDR distributed detection technology in complex formation drilling filling pile test [J]. Journal of engineering geology, 2008, 16(6): 826~832. In Chinese.

[2] Huawei Guo and Chuanhui Cheng: BOTDR fiber optical strain test pile body measurement [J]. Journal of pingdingshan institute of technology, 2007, 16(3): 55~58. In Chinese.

[3] Yong Ding: Tunnel structure health monitoring research based on BOTDR [D]. Nanjing: Nanjing University, 2005. In Chinese.

[4] Design and research institute of Zhengzhou University: The report of grouting shaft piles compressive static load test of distributed optical fiber inspection in East district of Zhengzhou [R]. Zhengzhou: Design and research institute of Zhengzhou University. 2007. In Chinese.

DOI: 10.5152/tjg.2022.21340

[5] Yaxing Pei, Xiankang Tan and Aixun Wang: Application of the optical fiber sensing technology in prestressed anchor rod stress test [J]. The people of the Yangtze river, 2004, 35(1): 25-27. In Chinese.

[6] Bin Shi, Xuejun Xu and Di Wang, etc: Research on tunnel health diagnosis of BOTDR distributed fiber optic strain monitoring technology [J]. Journal of Rock Mechanics and Geotechnical Engineering2005, 24(15): 2622-2628. In Chinese.

[7] Dan Zhang : Research on distributed optical fiber sensing technology based on BODTR and its application in tunnel deformation monitoring [D]. Nanjing: Nanjing University, 2004. In Chinese.

[8] Suozhu Ma: The application of optical fiber sensing technology in underground engineering [J]. Journal of Railway Engineering Society, 2006, 2: 67-70. In Chinese.

[9] Shenghe Sun, Tingyun Wang and Ying Xu: Optical fiber measurement and sensing technology (Edition 2) [M]. Haerbin: Harbin industrial university press, 2002. In Chinese.
