Dynamic Recrystallization Behavior of High Carbon Chromium Bearing Steel

Abstract:

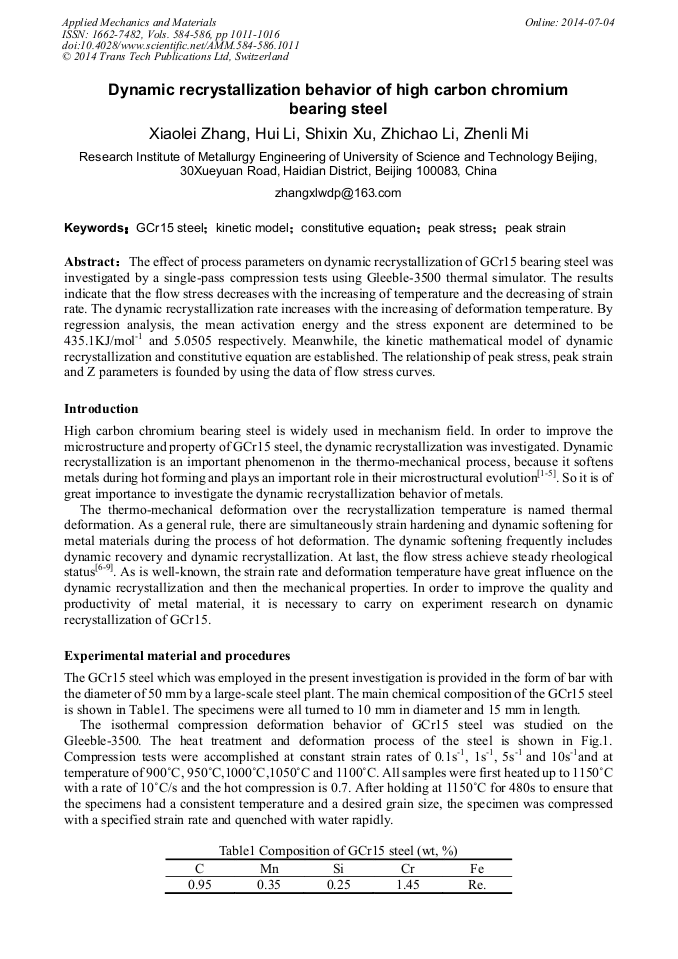

The effect of process parameters on dynamic recrystallization of GCr15 bearing steel was investigated by a single-pass compression tests using Gleeble-3500 thermal simulator. The results indicate that the flow stress decreases with the increasing of temperature and the decreasing of strain rate. The dynamic recrystallization rate increases with the increasing of deformation temperature. By regression analysis, the mean activation energy and the stress exponent are determined to be 435.1KJ/mol^-1 and 5.0505 respectively. Meanwhile, the kinetic mathematical model of dynamic recrystallization and constitutive equation are established.The relationship of peak stress, peak strain and Z parameters is founded by using the data of flow stress curves.

• Periodical: Applied Mechanics and Materials (Volumes 584-586)
• Pages: 1011-1016
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.584-586.1011
• Online since: July 2014
• Authors: Xiao Lei Zhang, Hui Li, Shi Xin Xu, Zhi Chao Li, Zhen Li Mi
• Keywords: Constitutive Equation, GCr15 Steel, Kinetic Model, Peak Strain, Peak Stress

References

[1] Zhanying Liu, Liansheng Chen, Manchun Zhou, etal. Journal of Iron and Steel Research, 2004, 16(1) : 49-52.

[2] Samuel F H, Yue S, Jonas J J, etal. ISIJ International, 1990, 30(3): 216-225.

[3] Elwazri A M, Wannjara P, Yue S. Materials Science and Engineering A, 2003, A339: 209-215.

[4] Zhengsheng Li, Zhili Fan, Guanyun Zhang, etal. Iron and steel, 1996, 31(S): 61-66. (In Chinese).

[5] Jingrong Liu, Bin Li, Lei Mao. Physical test: 1995(6)7-11. (In Chinese).

[6] Yongning Yu. Beijing: High learning press, (2006).

[7] Yue CX, Zhang LW, Liao SL, etal. Mater Sci Eng A, 2009, 499: 177-181.

[8] Gu SD, Zhang LW, Yue CX, etal. Computer Mater Sci 2011, 50: 1951-7.

[9] Zhien Liu. Xi an: Northwestern poly technical university press, 2007. (In Chinese).

[10] Shi H, Mclaren AJ, Sellars CM, etal. Mater SciEng 1997, 13: 210-6.

[11] Zencer C, Hollomon JH. J ApplPhys 1994, 15: 22-32.

[12] Changizian P, Zarei-Hanzaki A, Roostaei AA. Mater Des 2012, 39: 384-9.

[13] Yizhu He, Dahong Chen, Tingquan Lei, etal. Journal of East China University of Metallurgy: 1995(4)146-151. (In Chinese).

[14] Mcqueen H, Ryan N. Materials Science and Engineering: A, 2002, 322(1): 43-63.
