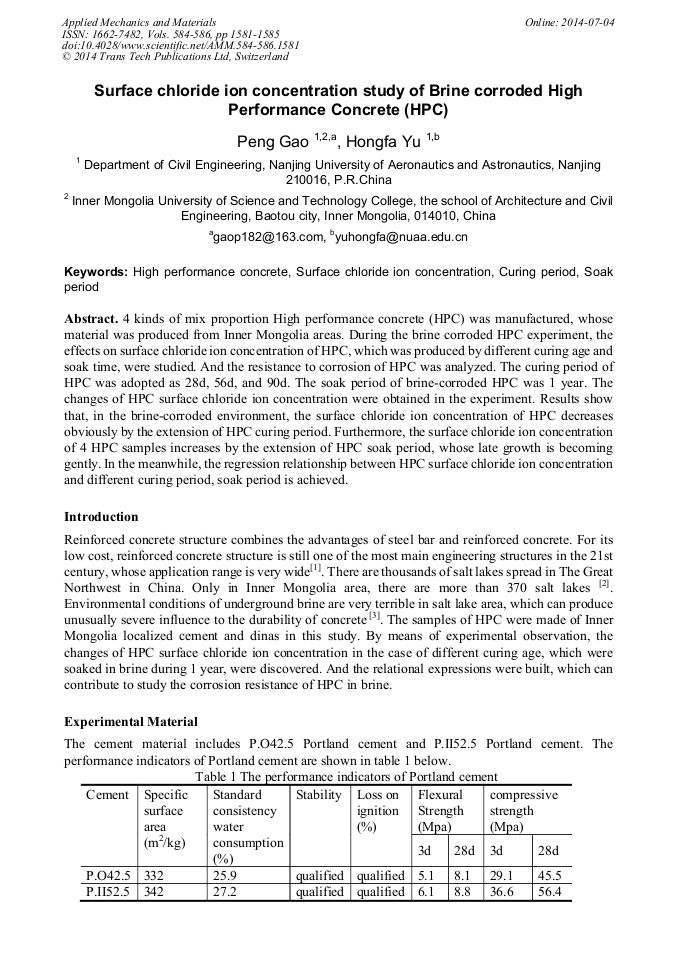

Surface Chloride Ion Concentration Study of Brine Corroded High Performance Concrete (HPC)

Abstract:

4 kinds of mix proportion High performance concrete (HPC) was manufactured, whose material was produced from Inner Mongolia areas. During the brine corroded HPC experiment, the effects on surface chloride ion concentration of HPC, which was produced by different curing age and soak time, were studied. And the resistance to corrosion of HPC was analyzed. The curing period of HPC was adopted as 28d, 56d, and 90d. The soak period of brine-corroded HPC was 1 year. The changes of HPC surface chloride ion concentration were obtained in the experiment. Results show that, in the brine-corroded environment, the surface chloride ion concentration of HPC decreases obviously by the extension of HPC curing period. Furthermore, the surface chloride ion concentration of 4 HPC samples increases by the extension of HPC soak period, whose late growth is becoming gently. In the meanwhile, the regression relationship between HPC surface chloride ion concentration and different curing period, soak period is achieved.

• Periodical: Applied Mechanics and Materials (Volumes 584-586)
• Pages: 1581-1585
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.584-586.1581
• Online since: July 2014
• Authors: Peng Gao*, Hongfa Yu
• Keywords: Curing Period, High-Performance Concrete (HPC), Soak Period, Surface Chloride Ion Concentration

References

[1] Guofan Zhao, Weiliang Jin, Jinxin Gong. Structural reliability theory [M]. Beijing: China Architecture & Building Press, 2000: 1-6.

[2] Hongfa Yu. Study on high performance concrete in salt lake: durability, mechanism and service life prediction [D]. Nanjing: Southeast University Materials Science and Engineering school, 2004: 1-4.

[3] Peng Gao, Hongfa Yu. Mechanical Property Study of Brine corroded High Performance Concrete [C]. Zhuhai, China: the 2013 2nd International Conference on Civil Architectural and Hydraulic Engineering (ICCAHE2013), 2013. 2865-2870(EI).

DOI: 10.4028/www.scientific.net/amm.405-408.2865

[4] Marine Engineering Concrete Test Procedures. JTJ270-98[S]. Beijing: Ministry of Communications of PRC, 1998: 202-205.

[5] Die Hu. Research on Chloride Diffusion Parameters of Concrete Exposed to Marine Environment [D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2009: 20.

[6] Shudong Chen, Hongfa Yu. High strength and high performance concrete in qinghai salt lake brine corrosion resistance [J]. Concrete, 2003, (1): 38-40.

[7] Xiangdong Gao, Winyou Wang. Study on low water-binder ratio of fly ash concrete sulfate attack resistance [J]. Shandong Building Materials, 1999, (6): 5-7.
