Reducing UT Rejections in Cr-Mo and High Mn Steels by Controlling Hydrogen and Optimising Superheat

Abstract:

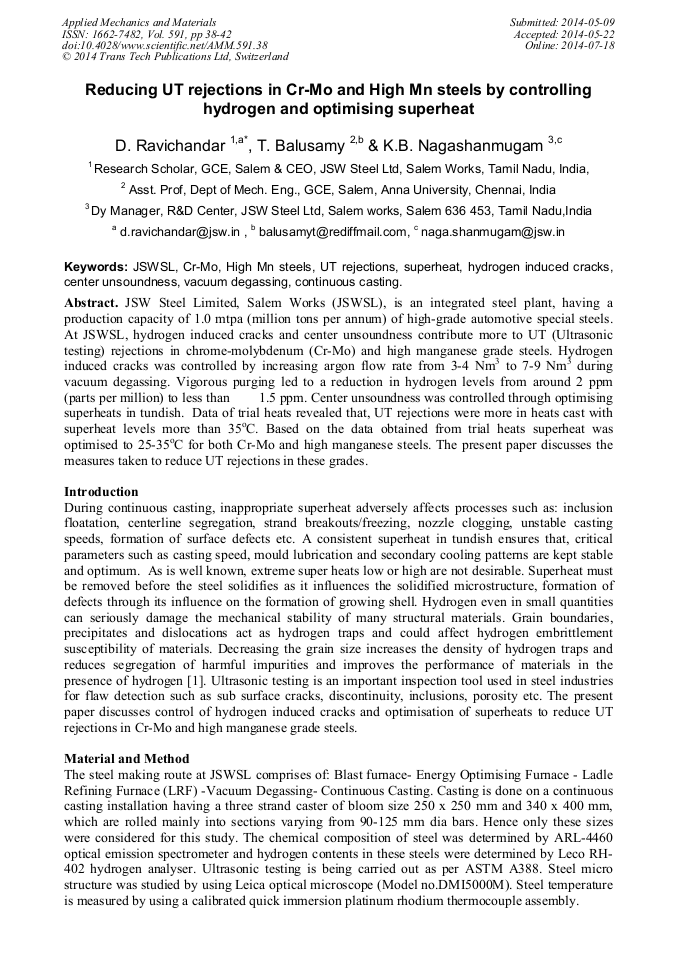

JSW Steel Limited, Salem Works (JSWSL), is an integrated steel plant, having a production capacity of 1.0 mtpa (million tons per annum) of high-grade automotive special steels. At JSWSL, hydrogen induced cracks and center unsoundness contribute more to UT (Ultrasonic testing) rejections in chrome-molybdenum (Cr-Mo) and high manganese grade steels. Hydrogen induced cracks was controlled by increasing argon flow rate from 3-4 Nm³ to 7-9 Nm³ during vacuum degassing. Vigorous purging led to a reduction in hydrogen levels from around 2 ppm (parts per million) to less than 1.5 ppm. Center unsoundness was controlled through optimising superheats in tundish. Data of trial heats revealed that, UT rejections were more in heats cast with superheat levels more than 35°C. Based on the data obtained from trial heats superheat was optimised to 25-35°C for both Cr-Mo and high manganese steels. The present paper discusses the measures taken to reduce UT rejections in these grades.KeywordsJSWSL, Cr-Mo, High Mn steels, UT rejections, superheat, hydrogen induced cracks, center unsoundness, vacuum degassing, continuous casting.

• Periodical: Applied Mechanics and Materials (Volume 591)
• Pages: 38-42
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.591.38
• Online since: July 2014
• Authors: D. Ravichandar*, Thangavel Balusamy, K. Bommannan Nagashanmugam
• Keywords: Center Unsoundness, Continuous Casting, Cr-Mo, High Mn Steel, Hydrogen Induced Cracks, JSWSL, Superheat, UT Rejections, Vacuum Degassing

References

[1] G. Ananta Nagu, Amarnath, T.K.G. Namboodhiri, Effect of heat treatments on the hydrogen embrittlement susceptibility of API X65 grade line pipe steel, Bull. Mater. Sci., 26 (2003) 435-439.

DOI: 10.1007/bf02711189

[2] O. Haida, H. Kitaoka, Y. Habu, S. Kakihara, H. Bada, S. Shiraishi, Macro and semi macroscopic features of the centerline segregation in continuously cast slabs and their effect on product quality, Trans ISU, 24 (1984) 891-898.

DOI: 10.2355/isijinternational1966.24.891

[3] M. Bubicich, P. Eden, A. Porteous, C. Gore, I. Ottaway, I. Murgas, Hydrogen induced cracks in rails, Whyalla Steel Works, Onesteel, (2002).

[4] Erika popa, Teodar Heput, Erika Ardelean, Ana Socalici, Identifying the main defects appeared in structure of continuous blanks, Int. J. Sys. Appl. Eng. & Devlp., 6 (2012) 36-43.
