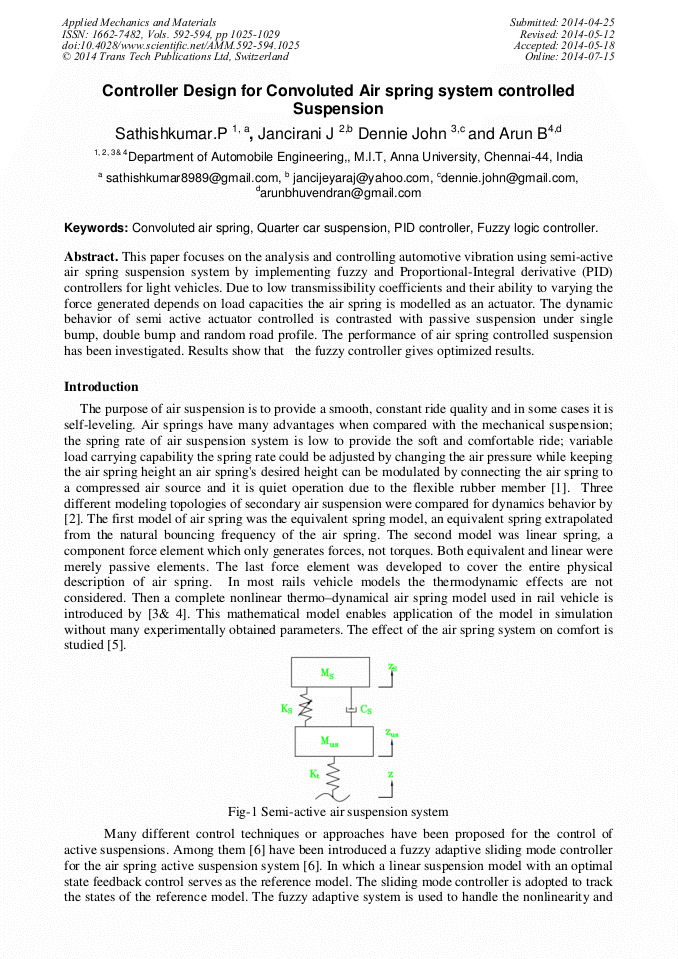

Controller Design for Convoluted Air Spring System Controlled Suspension

Abstract:

This paper focuses on the analysis and controlling automotive vibration using semi-active air spring suspension system by implementing fuzzy and Proportional-Integral derivative (PID) controllers for light vehicles. Due to low transmissibility coefficients and their ability to varying the force generated depends on load capacities the air spring is modelled as an actuator. The dynamic behavior of semi active actuator controlled is contrasted with passive suspension under single bump, double bump and random road profile. The performance of air spring controlled suspension has been investigated. Results show that the fuzzy controller gives optimized results.

• Periodical: Applied Mechanics and Materials (Volumes 592-594)
• Pages: 1025-1029
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.592-594.1025
• Online since: July 2014
• Authors: Palanisamy Sathishkumar*, Jeyaraj Jancirani, John Dennie, B. Arun
• Keywords: Convoluted Air Spring, Fuzzy Logic Controller, PID Controller, Quarter Car Suspension

References

[1] M. Bayraktar, R. Guclu and M. Metin, MODELLING OF AIR SPRINGS IN A RAIL VEHICLE", 13th International Research/Expert Conference "Trends in the Development of Machinery and Associated Technology, Hammamet, Tunisia, 2009, pp.829-832.

[2] C. Pellegrini , F. Gherardi , D. Spinelli , G. Saporito & M. Romani (2006).

[3] H. sayyaadi* and N. Shokouhi, Effects of air reservoir volume and connecting pipes' length and diameter on the air spring behavior in rail–vehicles, Iranian Journal of Science & Technology, Transaction B: Engineering, Vol. 34, No. B5, 2010, pp.499-508.

[4] V. Gavriloski and J. Jovanova, Dynamic Behavior of an Air spring elements.

[5] A. Alonso, J. G. Giménez, J. Nieto and J. Vinolas, Air suspension characterisation and effectiveness of a variable area orifice, Vehicle System Dynamics: International Journal of Vehicle Mechanics and Mobility, 48: sup1, 2010, pp.271-286.

DOI: 10.1080/00423111003731258

[6] W N. Bao p Chen, y q. Zhang and y s. Zhao Fuzzy adaptive sliding mode controller for an air spring active suspension, International Journal of Automotive Technology, Vol. 13, No. 7, p.1057−1065 (2012).

DOI: 10.1007/s12239-012-0108-2

[7] Wei bo Yu ; Lai Wei ; Baimei Pang and Nan Li, Application of self-adjustable fuzzy control algorithm in the air suspension of the vehicle, International Conference on Mechatronics and Automation 2009, pp.676-680.

DOI: 10.1109/icma.2009.5246377

[8] Tanovic, O. ; Bosnia-Herzegovina ; Huseinbegovic, S., Hybrid fuzzy-neural network structure for vehicle seat vibration isolation, IEEE International Conference on Control and Automation, 2009, pp.

DOI: 10.1109/icca.2009.5410379

[9] C. Pellegrini , F. Gherardi , D. Spinelli , G. Saporito & M. Romani (2006).

[10] G. Quaglia, M. Scopesi & W. Franco, A comparison between two pneumatic suspension architectures, International Journal of Vehicle Mechanics and Mobility, 50: 4, 509-526.

DOI: 10.1080/00423114.2011.602420

[11] GoegoesDwi Nusantoro1, GigihPriyandoko, PID State Feedback Controller of a Quarter Car Active Suspension System, J. Basic. Appl. Sci. Res., 1(11)2304-2309, (2011).

[12] Presthus, M. Derivation of air spring model parameters for train simulation. Master's thesis, Department of Applied Physics and Mechanical Engineering, Lulea° University of Technology, Lulea°, Sweden, (2002).

[13] Gavriloski V, Jovanova J, Dynamic behaviour of an air spring element.

[14] G. Quaglia and M. Sorli, Air suspension dimensionless analysis and design procedure, Veh. Syst. Dyn 35, p.443–475 (2001).

DOI: 10.1076/vesd.35.6.443.2040

[15] F. Chang and Z. H. Lu, Air suspension performance analysis using nonlinear geometrical parameters model, SAE Technical Paper Series 01-4270, (2007).

DOI: 10.4271/2007-01-4270

[16] G. D. Nusantoro1, G. Priyandoko, PID State Feedback Controller of a Quarter Car Active Suspension System, J. Basic. Appl. Sci. Res., 1(11)2304-2309, (2011).

[17] M. M. M. Salem and Ayman A. Aly, Fuzzy Control of a Quarter-Car Suspension System, World Academy of Science, Engineering and Technology, 53, (2009).
