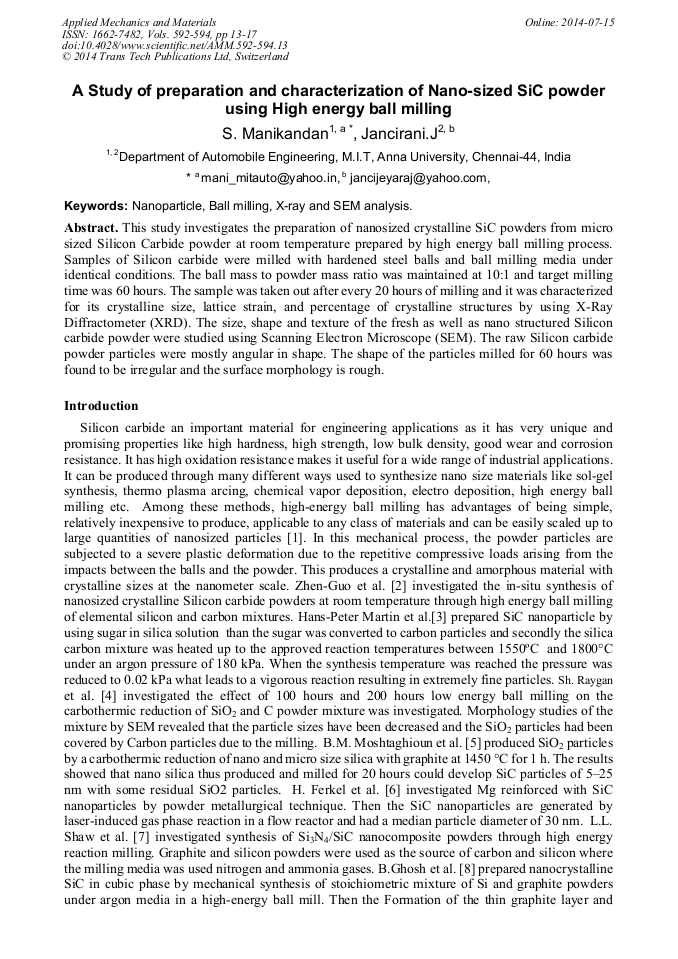

A Study of Preparation and Characterization of Nano-Sized SiC Powder Using High Energy Ball Milling

Abstract:

This study investigated the preparation of nanosized crystalline SiC powders from micro sized Silicon Carbide powder at room temperature through high energy ball milling. Silicon carbide was milled with hardened steel balls and ball milling media under identical conditions of ball mass to powder mass ratio 10:1 and target milling times of 60 h. The sample was taken out after every 20 hours of milling and it was characterized for its crystalline size, lattice strain, and percentage of crystalline by using X-Ray Diffractometer (XRD). It was found that for the 60 hours The size, shape and texture of the fresh as well as nanostructured Silicon carbide powder were studied using Scanning Electron Microscopy (SEM). The raw Silicon carbide powder particles were mostly angular in shape. The shape of the 60h milled particles is irregular and the surface morphology is rough.

• Periodical: Applied Mechanics and Materials (Volumes 592-594)
• Pages: 13-17
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.592-594.13
• Online since: July 2014
• Authors: S. Manikandan*, J. Jancirani
• Keywords: Ball Milling, Nanoparticle, SEM Analysis, X-Ray

References

[1] J. Babu Rao et al, Production of nano structured silicon carbide by high energy ball milling, International Journal of Engineering, Science and Technology Vol. 3, No. 4, 2011, pp.82-88.

[2] Zhen-Guo Yang and L.L. Shaw, Synthesis of nanocrystalline SiC at ambient Temperature through high energy Reaction milling, nanostructured materials. vol-7. No. 8. PP873-886, (1996).

DOI: 10.1016/s0965-9773(96)00058-x

[3] Hans-Peter Martin et al, Synthesis of Nanocrystalline Silicon Carbide Powder by Carbothermal Reduction, Journal of the European Ceramic Society 18 (1998) 1737 -1742.

DOI: 10.1016/s0955-2219(98)00094-6

[4] Sh. Raygan et al, Effect of mechanical activation on the production of SiC from silica sand, Int. Journal of Refractory Metals and Hard Materials 29 (2011) 10–13.

DOI: 10.1016/j.ijrmhm.2010.06.002

[5] B.M. Moshtaghioun et al, A study on the effects of silica particle size and milling time on synthesis of silicon carbide nanoparticles by carbothermic reduction, Int. Journal of Refractory Metals and Hard Materials 29 (2011) 645–650.

DOI: 10.1016/j.ijrmhm.2011.04.009

[6] H. Ferkel , B.L. Mordike, Magnesium strengthened by SiC nanoparticles, Materials Science and Engineering A298 (2001) 193–199.

DOI: 10.1016/s0921-5093(00)01283-1

[7] L.L. Shaw et al, Synthesis of nanostructured Si3N4/SiC composite powders through high energy reaction milling, Materials Science and Engineering A 244 (1998) 113–126.

DOI: 10.1016/s0921-5093(97)00834-4

[8] B. Ghosh, S.K. Pradhan, Microstructural characterization of nanocrystalline SiC synthesized by high-energy ball-milling, Journal of Alloys and Compounds 486 (2009) 480–485.

DOI: 10.1016/j.jallcom.2009.06.170
