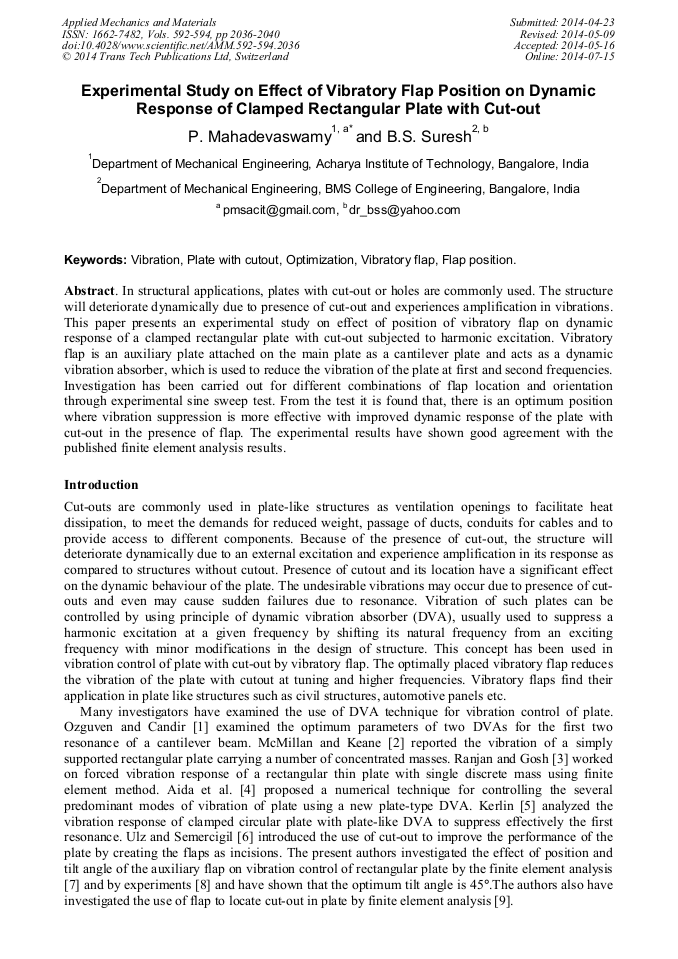

Experimental Study on Effect of Vibratory Flap Position on Dynamic Response of Clamped Rectangular Plate with Cut-Out

Abstract:

In structural applications, plates with cut-out or holes are commonly used. The structure will deteriorate dynamically due to presence of cut-out and experiences amplification in vibrations. This paper presents an experimental study on effect of position of vibratory flap on dynamic response of a clamped rectangular plate with cut-out subjected to harmonic excitation. Vibratory flap is an auxiliary plate attached on the main plate as a cantilever plate and acts as a dynamic vibration absorber, which is used to reduce the vibration of the plate at first and second frequencies. Investigation has been carried out for different combinations of flap location and orientation through experimental sine sweep test. From the test it is found that, there is an optimum position where vibration suppression is more effective with improved dynamic response of the plate with cut-out in the presence of flap. The experimental results have shown good agreement with the published finite element analysis results.

• Periodical: Applied Mechanics and Materials (Volumes 592-594)
• Pages: 2036-2040
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.592-594.2036
• Online since: July 2014
• Authors: P. Mahadevaswamy*, B.S. Suresh
• Keywords: Flap Position, Optimization, Plate with Cutout, Vibration, Vibratory Flap

References

[1] H.N. Ozguven and B. Candir, Suppressing the first and second resonances of beams by dynamic vibration absorbers, J. Sound Vib. 111 (3) (1986) 377-390.

DOI: 10.1016/s0022-460x(86)81399-2

[2] A. J . McMillan and A. J. Keane, Vibration isolation in a thin rectangular plate using a large number of optimally positioned point masses, J. Sound Vib. 202(2) (1997) 219-234.

DOI: 10.1006/jsvi.1996.0861

[3] V. Ranjan and M.K. Gosh, Forced vibration response of thin plate with attached discrete dynamic absorbers, Thin Wall. Struct. 43(10) (2005) 1513-1533.

DOI: 10.1016/j.tws.2005.07.001

[4] T. Aida, K. Kawazoe and S. Toda, Vibration control of plates by plate-type dynamic vibration absorbers, J. Sound Vib. 117(3A) (1995) 332-338.

DOI: 10.1115/1.2874455

[5] R. L. Kerlin, Predicted attenuation of the plate-like dynamic vibration absorber when attached to a clamped circular plate at a non-central point of excitation, Appl. Acoust. 23(1) (1988) 17-27.

DOI: 10.1016/0003-682x(88)90078-3

[6] M.H. Ulz and E.S. Semercigil, Vibration control for plate-like structures using strategic cut-outs, J. Sound Vib. 309(1-2) (2008) 246-261.

DOI: 10.1016/j.jsv.2007.06.068

[7] P. Mahadevaswamy and B.S. Suresh, Effect of position and tilt angle of the flap on vibration control of plate-A Finite Element Analysis, Int. J. Mech. Solids, 06 (1) (2011) 27-38.

[8] P. Mahadevaswamy and B.S. Suresh, Experimental study of effect of tilt angle of the flap on transverse vibration of plate, Int. J. Eng. Res. Technol. 01 (10) (2012)1-7.

[9] P. Mahadevaswamy and B.S. Suresh, Effect of flap position on transverse vibration of rectangular plate with cutout, J. Eng. Sci. Technol. 09 (02) (2014) 233-245.
