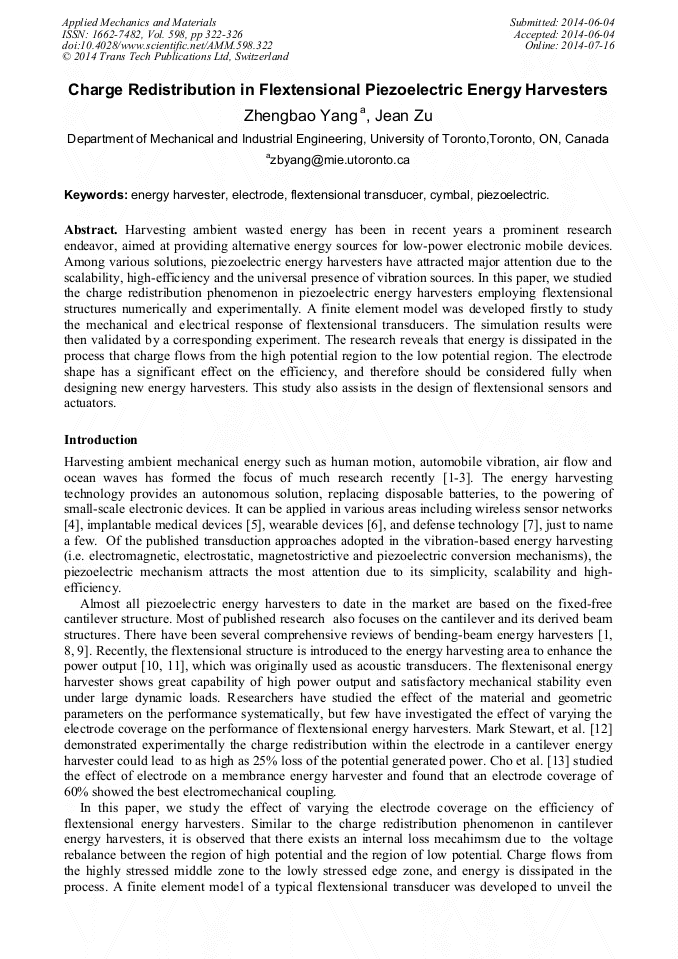

Charge Redistribution in Flextensional Piezoelectric Energy Harvesters

Abstract:

Harvesting ambient wasted energy has been in recent years a prominent research endeavor, aimed at providing alternative energy sources for low-power electronic mobile devices. Among various solutions, piezoelectric energy harvesters have attracted major attention due to the scalability, high-efficiency and the universal presence of vibration sources. In this paper, we studied the charge redistribution phenomenon in piezoelectric energy harvesters employing flextensional structures numerically and experimentally. A finite element model was developed firstly to study the mechanical and electrical response of flextensional transducers. The simulation results were then validated by a corresponding experiment. The research reveals that energy is dissipated in the process that charge flows from the high potential region to the low potential region. The electrode shape has a significant effect on the efficiency, and therefore should be considered fully when designing new energy harvesters. This study also assists in the design of flextensional sensors and actuators.

• Periodical: Applied Mechanics and Materials (Volume 598)
• Pages: 322-326
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.598.322
• Online since: July 2014
• Authors: Zheng Bao Yang*, Jean Zu
• Keywords: Cymbal, Electrode, Energy Harvester, Flextensional Transducer, Piezoelectric

References

[1] Anton, S.R. and H.A. Sodano, A review of power harvesting using piezoelectric materials (2003–2006). Smart Materials and Structures, 2007. 16(3): p. R1-R21.

DOI: 10.1088/0964-1726/16/3/r01

[2] Kim, S. -G., S. Priya, and I. Kanno, Piezoelectric MEMS for energy harvesting. MRS bulletin, 2012. 37(11): pp.1039-1050.

DOI: 10.1557/mrs.2012.275

[3] Harne, R.L. and K.W. Wang, A review of the recent research on vibration energy harvesting via bistable systems. Smart Materials and Structures, 2013. 22(2): p.023001.

DOI: 10.1088/0964-1726/22/2/023001

[4] Roundy, S., P.K. Wright, and J.M. Rabaey, Energy scavenging for wireless sensor networks: with special focus on vibrations. 2004: Springer.

DOI: 10.1007/978-1-4615-0485-6

[5] Romero, E., R.O. Warrington, and M.R. Neuman, Energy scavenging sources for biomedical sensors. Physiological Measurement, 2009. 30(9): p. R35.

DOI: 10.1088/0967-3334/30/9/r01

[6] Swallow, L., et al., A piezoelectric fibre composite based energy harvesting device for potential wearable applications. Smart Materials and Structures, 2008. 17(2): p.025017.

DOI: 10.1088/0964-1726/17/2/025017

[7] Sladea, J.R., J. Bowmana, and R. Kornbluhb. Bio-kinetic energy harvesting using electroactive polymers. in Proc. of SPIE Vol. (2012).

[8] Tang, L., Y. Yang, and C.K. Soh, Toward Broadband Vibration-based Energy Harvesting. Journal of Intelligent Material Systems and Structures, 2010. 21(18): pp.1867-1897.

DOI: 10.1177/1045389x10390249

[9] Ibrahim, S.W. and W.G. Ali, A review on frequency tuning methods for piezoelectric energy harvesting systems. Journal of Renewable and Sustainable Energy, 2012. 4(6): pp.062703-29.

DOI: 10.1063/1.4766892

[10] Kim, H.W., et al., Energy Harvesting Using a Piezoelectric``Cymbal'Transducer in Dynamic Environment. Japanese journal of applied physics, 2004. 43: p.6178.

DOI: 10.1143/jjap.43.6178

[11] Ren, B., et al., Energy harvesting using a modified rectangular cymbal transducer based on 0. 71Pb (Mg 1/3 Nb 2/3) O 3–0. 29PbTiO 3 single crystal. Journal of Applied Physics, 2010. 107(3): pp.034501-4.

DOI: 10.1063/1.3296156

[12] Stewart, M., P.M. Weaver, and M. Cain, Charge redistribution in piezoelectric energy harvesters. Applied Physics Letters, 2012. 100(7): pp.073901-3.

DOI: 10.1063/1.3685701

[13] Cho, J., et al., Optimization of electromechanical coupling for a thin-film PZT membrane: II. Experiment. Journal of Micromechanics and Microengineering, 2005. 15(10): p.1804.

DOI: 10.1088/0960-1317/15/10/003

[14] Erturk, A. and D.J. Inman, Piezoelectric Energy Harvesting. 2011: Wiley.

[15] http: /www. makeitfrom. com/material-data/?for=3003-H14-Aluminum.
