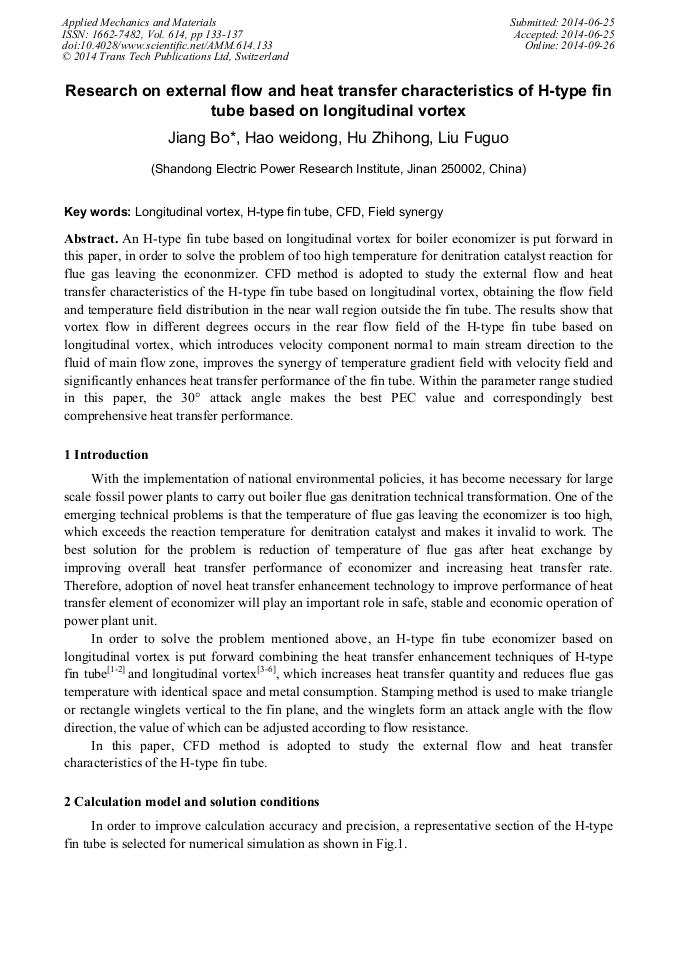

Research on External Flow and Heat Transfer Characteristics of H-Type Fin Tube Based on Longitudinal Vortex

Abstract:

An H-type fin tube based on longitudinal vortex for boiler economizer is put forward in this paper, in order to solve the problem of too high temperature for denitration catalyst reaction for flue gas leaving the econonmizer. CFD method is adopted to study the external flow and heat transfer characteristics of the H-type fin tube based on longitudinal vortex, obtaining the flow field and temperature field distribution in the near wall region outside the fin tube. The results show that vortex flow in different degrees occurs in the rear flow field of the H-type fin tube based on longitudinal vortex, which introduces velocity component normal to main stream direction to the fluid of main flow zone, improves the synergy of temperature gradient field with velocity field and significantly enhances heat transfer performance of the fin tube. Within the parameter range studied in this paper, the 30° attack angle makes the best PEC value and correspondingly best comprehensive heat transfer performance.

• Periodical: Applied Mechanics and Materials (Volume 614)
• Pages: 133-137
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.614.133
• Online since: September 2014
• Authors: Bo Jiang*, Wei Dong Hao, Zhi Hong Hu, Fu Guo Liu
• Keywords: CFD, Field Synergy, H-Type Fin Tube, Longitudinal Vortex

References

[1] B. T. F. Chung, B. X. Zhang. Optimum design for a radiative fin array system with least horizontal dimension, Journal of the Franklin Institute, 1993, 330( 5): 869-884.

DOI: 10.1016/0016-0032(93)90082-6

[2] H. T. Chen, J. C. Chou. Investigation of natural-convection heat transfer coefficient on a vertical square fin of finned-tube heat exchangers. International Journal of Heat and Mass Transfer, 2006, 49: 3034-3044.

DOI: 10.1016/j.ijheatmasstransfer.2006.02.009

[3] F. J. Edwards, G. J. R. Alker. The improvement of forced convection surface heat transfer using surfaces protrusions in the form of (A) cubes and (B) vortex generators. Proceedings of the 5th International Heat Conference, Tokyo, 1974, 2: 244-248.

DOI: 10.1615/ihtc5.2140

[4] C. M. B. Russell, T. V. Jones, G. H. Lee. Heat transfer enhancement using vortex generators. Heat Transfer 1982, Proc. Seventh Int. Heat Transfer Conf., Hemisphere, NewYork, 1982, 3: 283-288.

DOI: 10.1615/ihtc7.1850

[5] Y. Chen, M. Fiebig, N. K. Mitra. Conjugate heat transfer of a finned oval tube with a punched longitudinal vortex generation in form of a delta winglet-parametric investigations of the winglet. International Journal of Heat and Mass Transfer, 1998, 41: 3961-3978.

DOI: 10.1016/s0017-9310(98)00076-3

[6] Y. Chen, M. Fiebig, N. K. Mitra. Heat transfer enhancement of finned oval tubes with staggered punched longitudinal vortex generators. International Journal of Heat and Mass Transfer, 2000, 43: 417-435.

DOI: 10.1016/s0017-9310(99)00157-x
