A Two-Stage Double-Acting Hydraulic Pump Based on Crank Rod in Series with Symmetrical Hinge

Abstract:

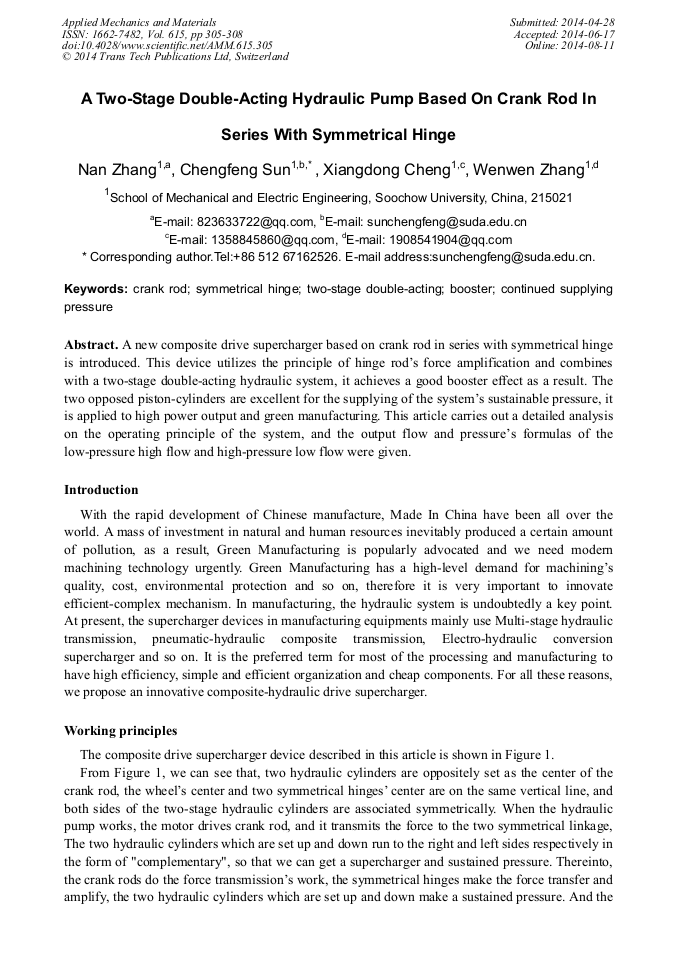

A new composite drive supercharger based on crank rod in series with symmetrical hinge is introduced. This device utilizes the principle of hinge rod’s force amplification and combines with a two-stage double-acting hydraulic system, it achieves a good booster effect as a result. The two opposed piston-cylinders are excellent for the supplying of the system’s sustainable pressure, it is applied to high power output and green manufacturing. This article carries out a detailed analysis on the operating principle of the system, and the output flow and pressure’s formulas of the low-pressure high flow and high-pressure low flow were given.
