Analysis of Geometric Characteristic of Missile Vertical Launching System Guide Rail

Abstract:

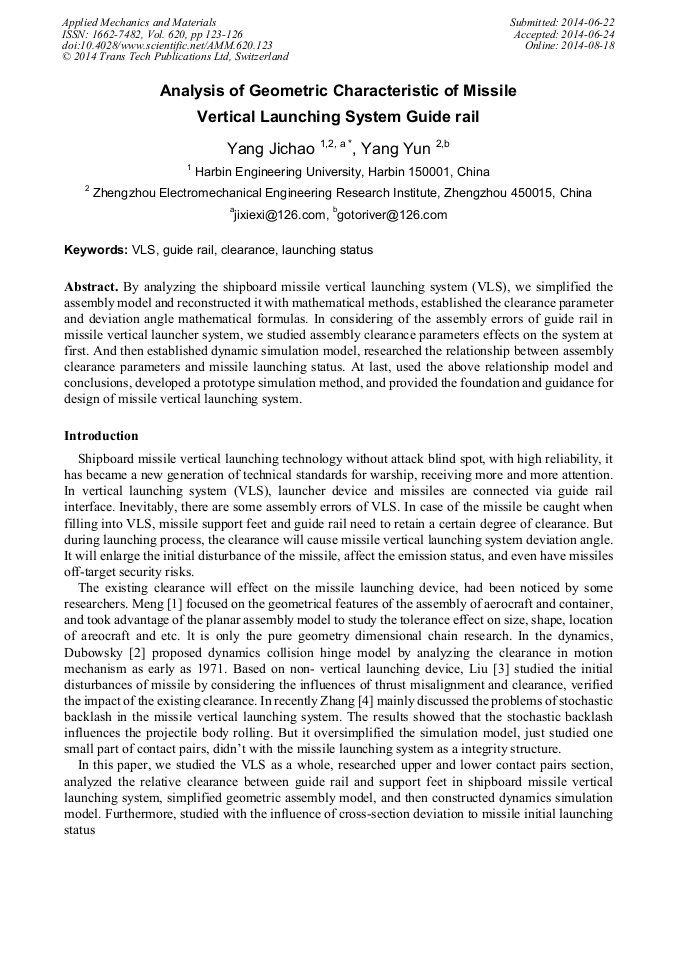

By analyzing the shipboard missile vertical launching system (VLS), we simplified the assembly model and reconstructed it with mathematical methods, established the clearance parameter and deviation angle mathematical formulas. In considering of the assembly errors of guide rail in missile vertical launcher system, we studied assembly clearance parameters effects on the system at first. And then established dynamic simulation model, researched the relationship between assembly clearance parameters and missile launching status. At last, used the above relationship model and conclusions, developed a prototype simulation method, and provided the foundation and guidance for design of missile vertical launching system.
