Deflection Analysis of Ionic Polymer Metal Composites (IPMC) Actuators for Bionic Joints

Abstract:

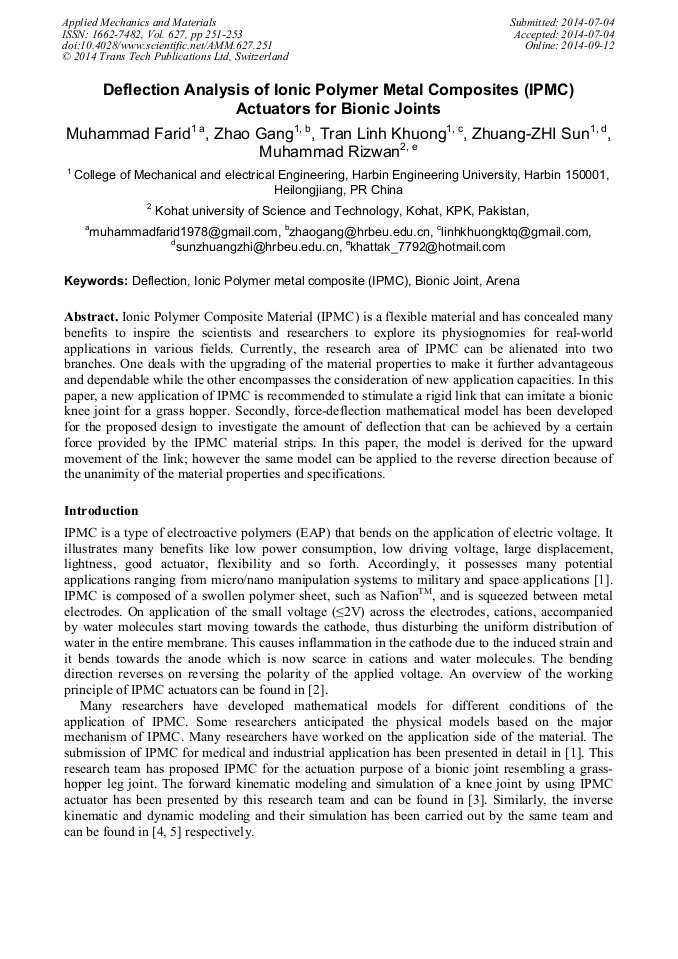

Article Preview

Ionic Polymer Composite Material (IPMC) is a flexible material and has concealed many benefits to inspire the scientists and researchers to explore its physiognomies for real-world applications in various fields. Currently, the research area of IPMC can be alienated into two branches. One deals with the upgrading of the material properties to make it further advantageous and dependable while the other encompasses the consideration of new application capacities. In this paper, a new application of IPMC is recommended to stimulate a rigid link that can imitate a bionic knee joint for a grass hopper. Secondly, force-deflection mathematical model has been developed for the proposed design to investigate the amount of deflection that can be achieved by a certain force provided by the IPMC material strips. In this paper, the model is derived for the upward movement of the link; however the same model can be applied to the reverse direction because of the unanimity of the material properties and specifications.

Info:

Periodical:

Edited by:

Bale V. Reddy, Shishir Kumar Sahu, A. Kandasamy and Manuel de La Sen

Pages:

251-253

Citation:

M. Farid et al., "Deflection Analysis of Ionic Polymer Metal Composites (IPMC) Actuators for Bionic Joints", Applied Mechanics and Materials, Vol. 627, pp. 251-253, 2014

Online since:

September 2014

Export:

Price:

$38.00

* - Corresponding Author

[1] M. Shahinpoor and J. K. Kim, Ionic Polymer metal composites: Industrial and medical applications IV", , Smart Materials and Structures, Vol. 14, pp.197-214, (2005).

DOI: https://doi.org/10.1088/0964-1726/14/1/020

[2] M. Shahinpoor and J. K. Kim, Ionic Polymer metal composites as biomimetic sensors, robotic actuators and artificial muscles-a review, Electromechanical actuators, vol. 48, no. 23, pp.43-53, (2003).

[3] Muhammad Farid et. al, Forward Kinematic modeling and simulation of Ionic Polymer Metal Composites (IPMC) actuators for bionic knee joint, Advanced Materials Research Vols. 889-890 (2014) pp.938-941.

DOI: https://doi.org/10.4028/www.scientific.net/amr.889-890.938

[4] Muhammad Farid et. al, Grasshopper knee joint- Inverse Kinematic modeling and simulation of Ionic Polymer Metal Composites (IPMC) actuators, Journal of Biomimetic, Biomaterials & Tissue Engineering Vol. 19 (2014) pp.1-11.

DOI: https://doi.org/10.4028/www.scientific.net/jbbte.19.1

[5] Muhammad Farid et. al, Dynamic Modeling and Simulation of Ionic Polymer Metal Composites (IPMC) Actuated Manipulator, Journal of Applied Science, Issue 11, Vol. 14, (2014).
