Bistatic LIDAR System for the Characterisation of Aviation-Related Pollutant Column Densities

Abstract:

Article Preview

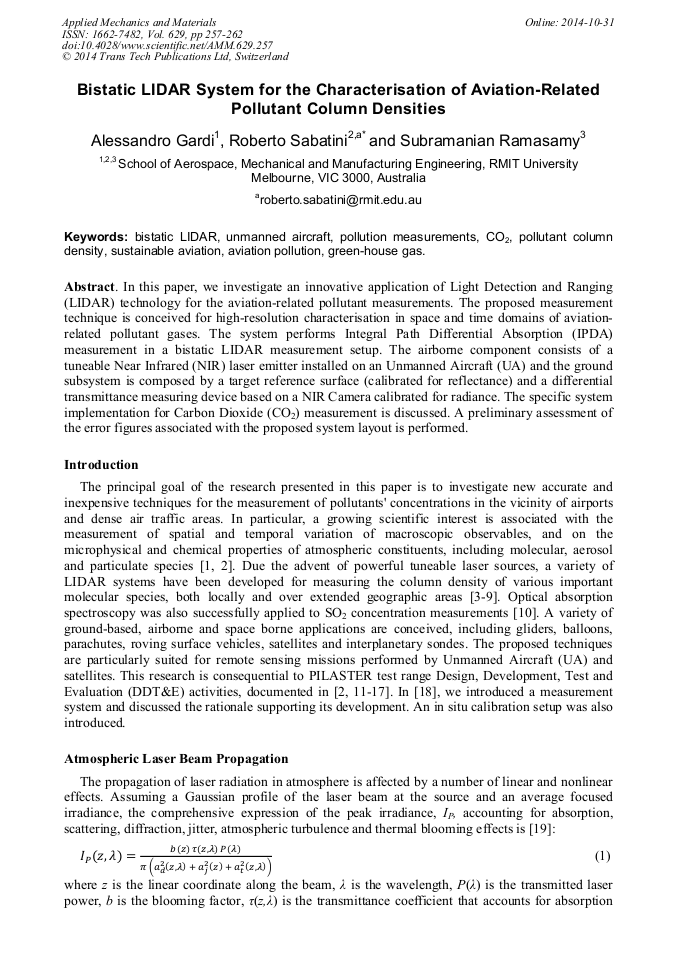

In this paper, we investigate an innovative application of Light Detection and Ranging (LIDAR) technology for the aviation-related pollutant measurements. The proposed measurement technique is conceived for high-resolution characterisation in space and time domains of aviation-related pollutant gases. The system performs Integral Path Differential Absorption (IPDA) measurement in a bistatic LIDAR measurement setup. The airborne component consists of a tuneable Near Infrared (NIR) laser emitter installed on an Unmanned Aircraft (UA) and the ground subsystem is composed by a target reference surface (calibrated for reflectance) and a differential transmittance measuring device based on a NIR Camera calibrated for radiance. The specific system implementation for Carbon Dioxide (CO2) measurement is discussed. A preliminary assessment of the error figures associated with the proposed system layout is performed.

Info:

Periodical:

Edited by:

R. Varatharajoo, F.I. Romli, K.A. Ahmad, D.L. Majid and F. Mustapha

Pages:

257-262

Citation:

A. Gardi et al., "Bistatic LIDAR System for the Characterisation of Aviation-Related Pollutant Column Densities", Applied Mechanics and Materials, Vol. 629, pp. 257-262, 2014

Online since:

October 2014

Export:

Price:

$38.00
