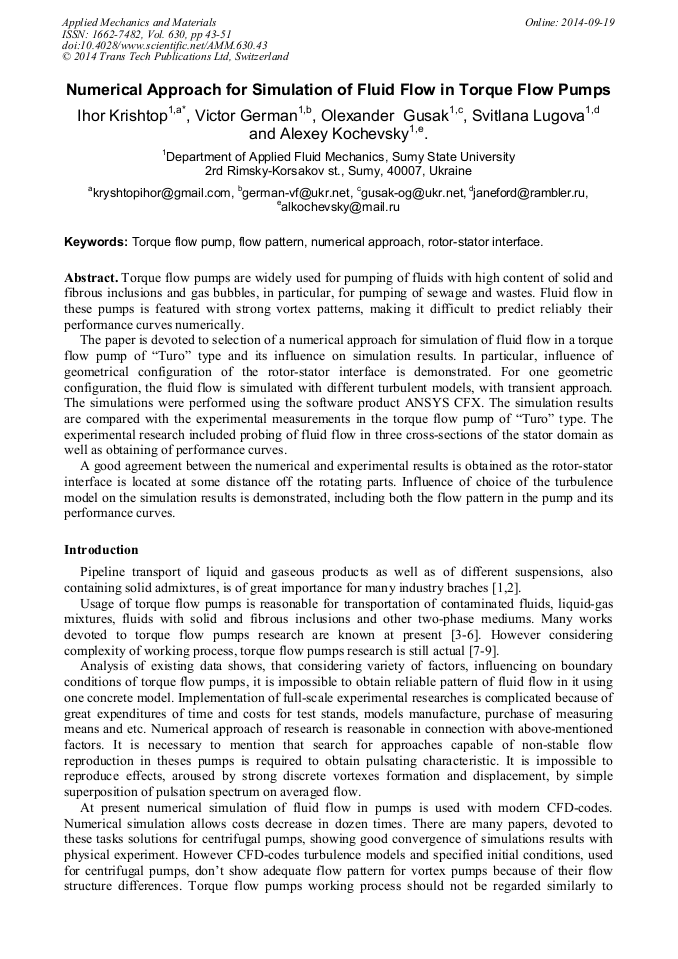

Numerical Approach for Simulation of Fluid Flow in Torque Flow Pumps

Abstract:

Torque flow pumps are widely used for pumping of fluids with high content of solid and fibrous inclusions and gas bubbles, in particular, for pumping of sewage and wastes. Fluid flow in these pumps is featured with strong vortex patterns, making it difficult to predict reliably their performance curves numerically. The paper is devoted to selection of a numerical approach for simulation of fluid flow in a torque flow pump of “Turo” type and its influence on simulation results. In particular, influence of geometrical configuration of the rotor-stator interface as well as numerical grid fineness is demonstrated. For one geometric configuration, the fluid flow is simulated with different turbulent models, with a steady state as well as transient approach. The simulations were performed using the software product ANSYS CFX. The simulation results are compared with the experimental measurements in the torque flow pump of “Turo” type. The experimental research included probing of fluid flow in three cross-sections of the stator domain, visualizing of streamlines along the rotating and stationary walls, as well as obtaining of performance curves. A good agreement between the numerical and experimental results is obtained as the rotor-stator interface is located at some distance off the rotating parts. Influence of choice of the turbulence model on the simulation results is demonstrated. Conclusions and recommendations are made concerning the choice of initial and boundary conditions, geometrical configuration of the rotor-stator interface, and parameters of turbulence models that affect both the flow pattern in the pump and its performance curves as well as the numerical solution time and required computational resources.

• Periodical: Applied Mechanics and Materials (Volume 630)
• Pages: 43-51
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.630.43
• Online since: September 2014
• Authors: Ihor Krishtop*, Victor German, Alexander Gusak, Svitlana Lugova, Alexey Kochevsky
• Keywords: Flow Pattern, Numerical Approach, Rotor-Stator Interface, Torque Flow Pump

References

[1] Yu.D. Baranov, B.А. Blyuss, Ye.V. Semenenko, V.D. Shurygin, Explanation of parameters and modes of hydraulic transport systems of mining enterprises, Novaya ideologiya, 2006. (in Russian).

[2] Ye.L. Zvyagilsky, B. А. Blyuss, Ye. I. Nazimko, Ye. V. Semenenko, Modernization of working modes of hydraulic transport installations for coal-separating technologies, Sevastopol, Veber, 2002. (in Russian).

[3] J. Rokita, Wpływ geometrycznych cech konstrukcyjnych na parametry pomp kretnych o swobodnym przepływie. Rozprawa doktorska, Gliwice, 1970. (in Polish).

[4] G. Grabow, Untersuchungen an Freistrompumpen. Internationale Symposium «Pumpen und Verdichter». Leipzig, (1970) 15-19. (in German).

[5] V. F. German, I.А. Kovalyov, А.I. Kotenko, Torque flow pumps, Sumy State University, Sumy, 2013. (in Russian).

[6] V.А. Solyanik, Approaches of hydraulic flow part simulation for torque flow pumps of TURO, type based on generalized criteria of regime and geometrical parameters connection, Visnyk SumDU, Sumy, (1998) 81-84. (in Russian).

[7] А.G. Gusak, V.F. German, А.I. Kotenko, S.М. Yakhnenko, Expansion of torque flow pumps application area, Visnyk SumDU, Technical sciences series, Sumy, (2012) 3-29. (in Russian).

[8] I.V. Krishtop, V.F. German, Optimization of outlet construction of torque flow pumps of TURO, type. Modern technologies of industrial production: materials of ІІ All-Ukrainian inter-university science-technical conference, SumDU, Sumy, (2012).

[9] S. S. Rudnev, Bases of torque flow pumps working process. Works of VNIIGidromash, № 43 (1972) 3–9. (in Russian).

[10] O.I. Kotenko, L. Nikolayenko, S.O. Luhova, Investigation of Small-Sized Axial-Flow Stage of a Borehole Pump for Water Supply. Proceedings of the 4th International Meeting on Cavitation and Dynamic Problems in Hydraulic Machinery and Systems. Belgrade, (2011).

[11] О.V. Yaremenko, Pump tests: Handbook, Mashinostroyeniye, Moscow, 1976. (in Russian).

[12] A.N. Kochevsky, Computation of Internal Fluid Flows in Channels Using the Package CFX-5, International arXiv. org e-Print archive: http: /arxiv. org/abs/physics/0509192.

[13] А.N. Kochevsky, Possibilities for simulation of fluid flows using the modern CFD software tools, Ploiesti (Romania), (2005) 64-79.

[14] K. Rütschi, Die Arbeitweise von Freistrompumpen. Bauzeitung, Schweiz, Vol. 86, No. 32 (1968) 575–582. (in German).

[15] ANSYS CFX 10. 0 Solver Models. Release 10. 0, (2005).

[16] М.V. Karapuzova, S.О. Lugovaya, I.B. Tverdokhleb, Research of flow structure in side inputs of hydraulic machines and some recommendations for their designing. Theory and practice of pump and compressor building: monography, edited by V.А. Martsinkosky, I.B. Tverdokhleb, Ye.N. Savchenko, Sumy (2011).

DOI: 10.1016/j.proeng.2012.07.018

[17] G.P. Schivley, Theoretical and experimental research of vortex pump. Works of American association of mechanical engineers (АSME), № 4 (1970) 192–202.
