Experimental Research on Medium Leakage of CFRP Laminates after Impact

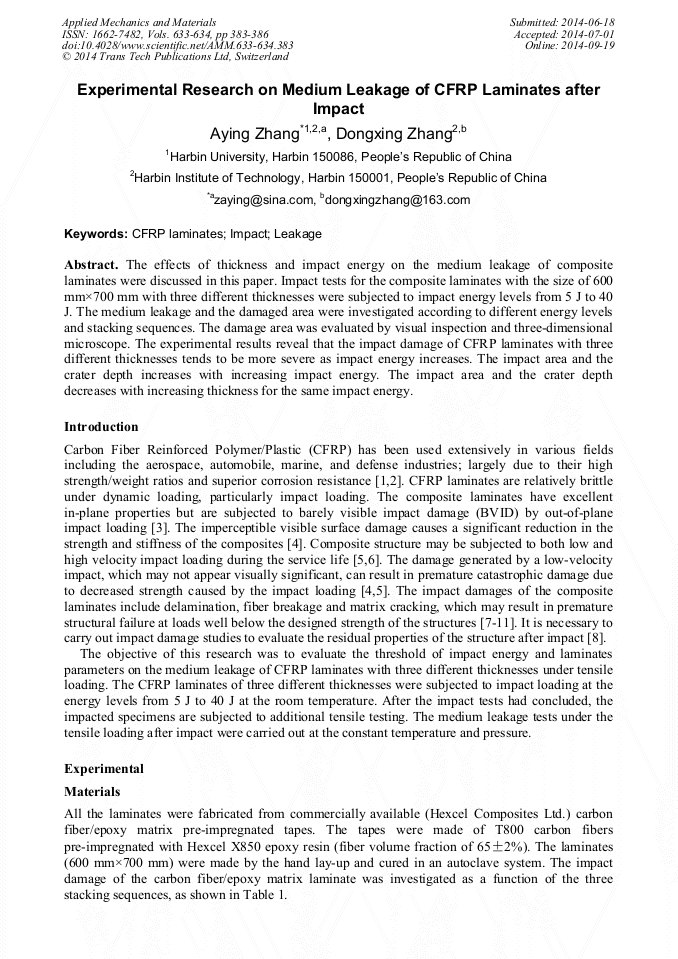

Article Preview

Abstract:

The effects of thickness and impact energy on the medium leakage of composite laminates were discussed in this paper. Impact tests for the composite laminates with the size of 600 mm×700 mm with three different thicknesses were subjected to impact energy levels from 5 J to 40 J. The medium leakage and the damaged area were investigated according to different energy levels and stacking sequences. The damage area was evaluated by visual inspection and three-dimensional microscope. The experimental results reveal that the impact damage of CFRP laminates with three different thicknesses tends to be more severe as impact energy increases. The impact area and the crater depth increases with increasing impact energy. The impact area and the crater depth decreases with increasing thickness for the same impact energy.

You might also be interested in these eBooks
Advanced Materials and Processes IV View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 633-634)

Pages:

383-386

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.633-634.383

Citation:

Cite this paper

Online since:

September 2014

Authors:

A Ying Zhang*, Dong Xing Zhang

Keywords:

CFRP Laminate, Impact, Leakage

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2014 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] O. Asi: Compos Struct. Vol. 90 (2009), p.43.

Google Scholar

[2] F. Awaja, B. Arhatari and et al: Polym Degrad Stab. Vol. 94 (2009), p.814.

Google Scholar

[3] T. R. Andrew, B. Richard and W. H Giles: Int J Solids Struct. Vol. 45 (2008), p.4349.

Google Scholar

[4] V. P. W Shim, L. M. Yang: Int J Mech Sci. Vol. 47 (2005), p.647.

Google Scholar

[5] K. H. Im, C. S. Cha and et al: Compos Part B. Vol. 32 (2001), p.669.

Google Scholar

[6] S. Sanchez-Saez, E. Barbero and C. Navarro: Compos Struct. Vol. 85 (2008), p.226.

Google Scholar

[7] K.W. Kang, H. S. Kim and et al: Mater Sci Eng. Vol. A483-484 (2008), p.333.

Google Scholar

[8] C. Santiuste, S. Sanchez-Saez, and E. Barbero: Compos Struct. Vol. 92 (2010), p.25.

Google Scholar

[9] M.L. Costa, M.C. Rezende and S.F.M. Almeida: J Compos. Mater. Vol. 39(2005), p. (1943).

Google Scholar

[10] D. Fatih, H. Homayoun and et al: Cen Eur J Engi. Vol. 2(2012), p.612.

Google Scholar

[11] G. Minak, P. Morelli and A. Zucchelli: Compos. Sci. Technol. Vol. 69(2009), p.1358.

Google Scholar
