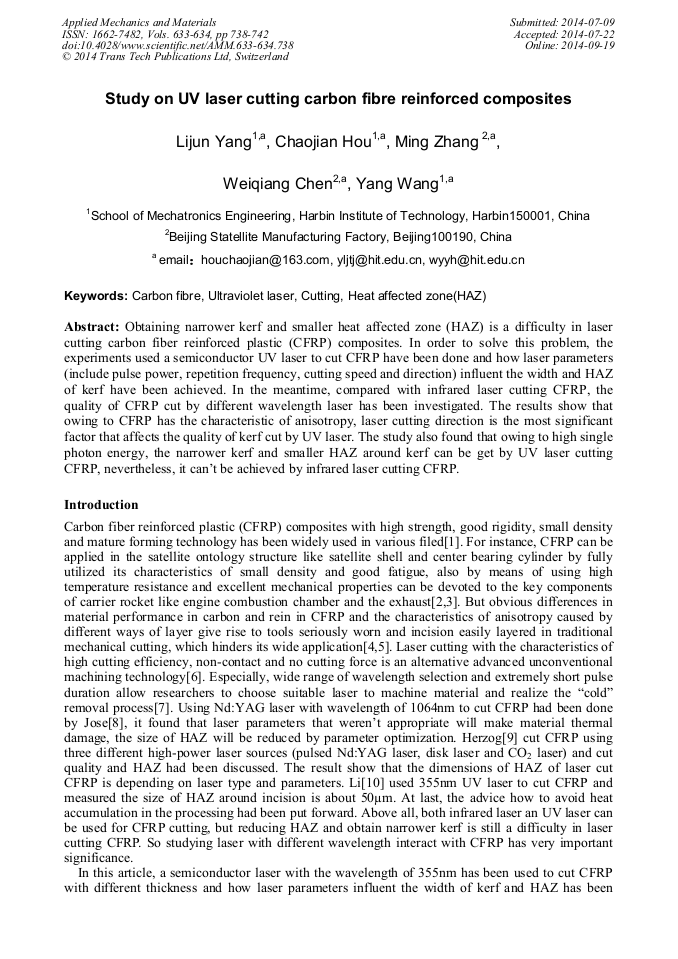

Study on UV Laser Cutting Carbon Fibre Reinforced Composites

Abstract:

Obtaining narrower kerf and smaller heat affected zone (HAZ) is a difficulty in laser cutting carbon fiber reinforced plastic (CFRP) composites. In order to solve this problem, the experiments used a semiconductor UV laser to cut CFRP have been done and how laser parameters (include pulse power, repetition frequency, cutting speed and direction) influent the width and HAZ of kerf have been achieved. In the meantime, compared with infrared laser cutting CFRP, the quality of CFRP cut by different wavelength laser has been investigated. The results show that owing to CFRP has the characteristic of anisotropy, laser cutting direction is the most significant factor that affects the quality of kerf cut by UV laser. The study also found that owing to high single photon energy, the narrower kerf and smaller HAZ around kerf can be get by UV laser cutting CFRP, nevertheless, it can’t be achieved by infrared laser cutting CFRP.

• Periodical: Applied Mechanics and Materials (Volumes 633-634)
• Pages: 738-742
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.633-634.738
• Online since: September 2014
• Authors: Li Jun Yang, Chao Jian Hou, Ming Zhang, Wei Qiang Chen, Yang Wang
• Keywords: Carbon Fiber, Cutting, Heat Affected Zone (HAZ), Ultraviolet Laser

References

[1] MO Hong-song. Study on microwave absorbing ability and mechanical properties of carbonous composiyes[D]. Dong hua university, 2008: 27-28.

[2] LI Wei, GUO Quan-feng. Application of carbon fiber composites to cosmonautic fields[J]. Chinese Optics，2011(4)：201-212.

[3] Cui juan. Machining Technology of Composites in Aviation Industry[J]. Composite machining，2013(15)：74-76.

[4] Wang Xiao-bo. Research on Ultrasonic High-speed Milling Technology of Carbon Fiber Reinforced Composites[D]. Mechanical Design and Theory in Hebei University of Science and Technology，2012: 1-5.

[5] BO Yong-jie, GAO Hang, MA Hai-long. Research on grinding heat impact on surface quality of the carbon fiber composite materials[J]. Journal of Dalian University of Technology，2011(51): 809-813.

[6] SHEN Yiyu, JIANG Zhaohua, CHEN Jun. A Study on Large Area Laser Cutting of High Strength Laminated Fiber Composites[J]. Applied Laser，2012(32): 188-192.

DOI: 10.3788/al20123203.188

[7] E. Sutcliffe, R. Srinivasan. Dynamics of UV laser ablation of organic polymer surface [J]. Appl . Phys，1986(9)：3315-3322.

DOI: 10.1063/1.337698

[8] Jose Mathew G.L. Goswami,N. Ramakrishnan. Parametric studies on pulsed Nd: YAG laser cutting of carbon fibre reinforced plastic composites[J]. Journal of Materials Processing Technology，1999(89): 198-203.

DOI: 10.1016/s0924-0136(99)00011-4

[9] Dirk Herzog, Peter Jaeschke, Oliver Meier, Heinz Haferkamp. Investigations on the thermal effect caused by laser cutting with respect to static strength of CFRP[J]. International Journal of Machine Tools & Manufacture，2008(48)：1464-1473.

DOI: 10.1016/j.ijmachtools.2008.04.007

[10] Z.L. Li, H.Y. Zheng, G. C Lim, P.L. Chu, L. Li. Study on UV laser machining quality of carbon fibre reinforced composites[J]. Composites: Part A，2010(41)：1403-1408.

DOI: 10.1016/j.compositesa.2010.05.017
