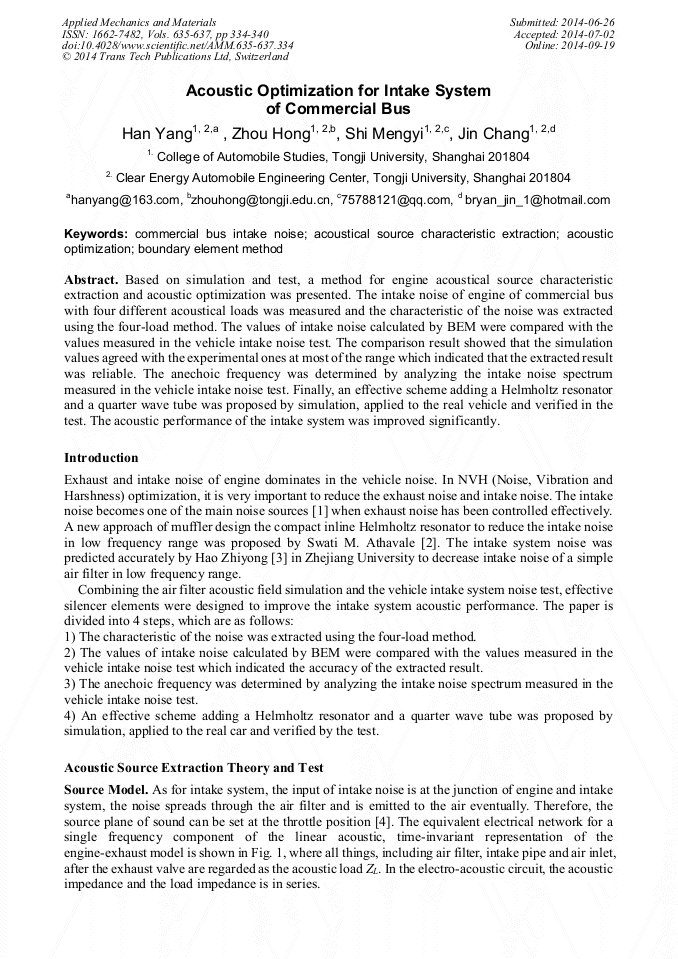

Acoustic Optimization for Intake System of Commercial Bus

Abstract:

Based on simulation and test, a method for engine acoustical source characteristic extraction and acoustic optimization was presented. The intake noise of engine of commercial bus with four different acoustical loads was measured and the characteristic of the noise was extracted using the four-load method. The values of intake noise calculated by BEM were compared with the values measured in the vehicle intake noise test. The comparison result showed that the simulation values agreed with the experimental ones at most of the range which indicated that the extracted result was reliable. The anechoic frequency was determined by analyzing the intake noise spectrum measured in the vehicle intake noise test. Finally, an effective scheme adding a Helmholtz resonator and a quarter wave tube was proposed by simulation, applied to the real vehicle and verified in the test. The acoustic performance of the intake system was improved significantly.

You might also be interested in these eBooks

Advanced Design and Manufacturing Technology IV

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 635-637)

Pages:

334-340

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.635-637.334

Citation:

Cite this paper

Online since:

September 2014

Authors:

Yang Han*, Hong Zhou, Meng Yi Shi, Chang Jin

Keywords:

Acoustic Optimization, Acoustical Source Characteristic Extraction, Boundary Element Method (BEM), Commercial Bus Intake Noise

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Jin Xiaoxiong, Hu Zigu. Construction Mechanical Noise Control Science．Shanghai：Tonji University Press，(1997).

Google Scholar

[2] Swati M. Athavale, P.R. Sajanpawar. Analysis and Development of Inline Helmholtz Resonator through Computer Simulation for Elimination of Low Frequency Intake Noise Character. SAE Paper 1999-01-1662.

DOI: 10.4271/1999-01-1662

Google Scholar

[3] Jia Weixin, Hao Zhiyong. Prediction of Air Cleaner and the study of Noise Control at Low Frequency Chinese Internal Combustion Engine Engineering，2006, 27（5）：67-70.

Google Scholar

[4] J. Lavrentjev, H. Boden, M. Abom. A Linearity Test for Acoustic One-port Source [J]. Journal of Sound and Vibration. 1992, 155: 534-539.

DOI: 10.1016/0022-460x(92)90718-d

Google Scholar

[5] K.S. Peat, J.G. Ih. Measurement Method of Estimation the Acoustic Impedance of a Time-varying Source [J]. Journal of Sound and Vibration (2001) 244(5), 821-835.

DOI: 10.1006/jsvi.2001.3533

Google Scholar

[6] Z. Tao and A. F. Seybert. A Review of Current Techniques for Measuring Muffler Transmission Loss. University of Kentucky. SAE Paper 2003-01-1653.

DOI: 10.4271/2003-01-1653

Google Scholar

[7] Pang Jian，Zhan Gang，He Hua. Automotive Noise and Vibration [M]. Beijing: Higher Education Press，(2002).

Google Scholar
