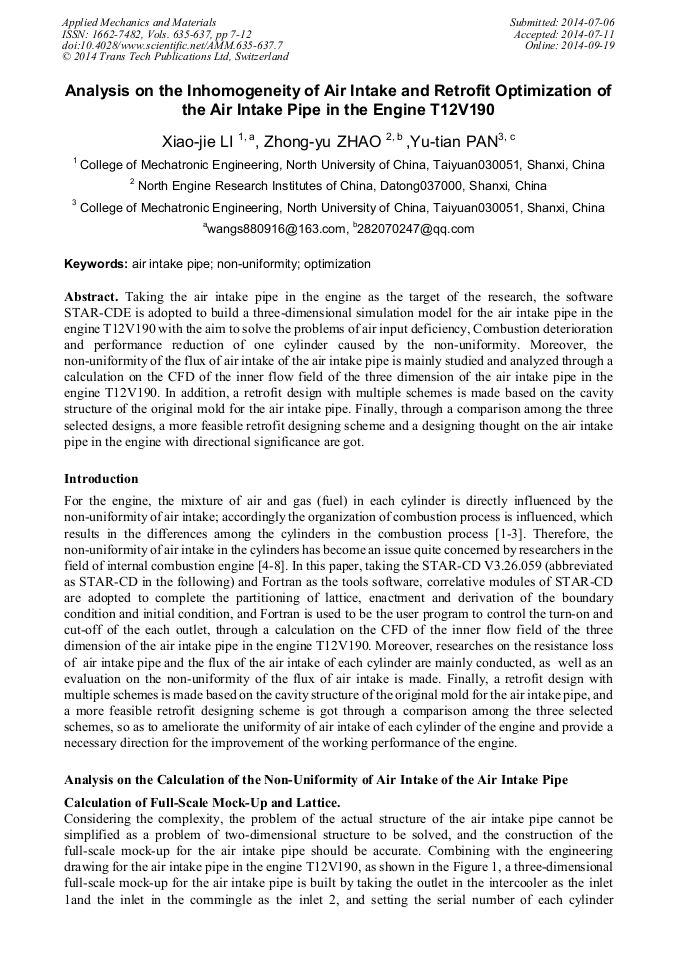

Analysis on the Inhomogeneity of Air Intake and Retrofit Optimization of the Air Intake Pipe in the Engine T12V190

Abstract:

Taking the air intake pipe in the engine as the target of the research, the software STAR-CDE is adopted to build a three-dimensional simulation model for the air intake pipe in the engine T12V190 with the aim to solve the problems of air input deficiency, Combustion deterioration and performance reduction of one cylinder caused by the non-uniformity. Moreover, the non-uniformity of the flux of air intake of the air intake pipe is mainly studied and analyzed through a calculation on the CFD of the inner flow field of the three dimension of the air intake pipe in the engine T12V190. In addition, a retrofit design with multiple schemes is made based on the cavity structure of the original mold for the air intake pipe. Finally, through a comparison among the three selected designs, a more feasible retrofit designing scheme and a designing thought on the air intake pipe in the engine with directional significance are got.

• Periodical: Applied Mechanics and Materials (Volumes 635-637)
• Pages: 7-12
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.635-637.7
• Online since: September 2014
• Authors: Xiao Jie Li*, Zhong Yu Zhao, Yu Tian Pan
• Keywords: Air Intake Pipe, Non-Uniformity, Optimization

References

[1] Bin Xu, Yanbin Shi. Engine intake flow simulation and optimization [J]. Chinese Internal Combustion Engine Engineering, 2005, 26(4) page: 12-15.

[2] Tongqun Han. The design and development of EFI engine intake pipe [J]. Chinese Internal Combustion Engine Engineering, 2005, 26(3) page: 22-26.

[3] Guohai Yu, Xiangan Yan, Hong Jun Xu. The intake duct structure influence on the property of single-cylinder engine power [J]. China Mechanical Engineering, 2006, 2.

[4] Guohua Jiang, Miaomiao Wen. EQD180N-20 engine intake Unevenness Analysis [J]. Journal of Wuhan University of Technology (TransportationScience&Engineering). 2006, 6: 021.

[5] Tongqun Han, Xiangning Ma. Application of CFD / CAD technology to optimize the design of diesel engine intake pipe [J]. Transactions of Csice, 2006, 1: 003.

[6] Hongling Jin. The gasoline engine of 469Q intake system flow characteristics and optimization [D], Taiyuan: Taiyuan University of Technology. (2006).

[7] Nan Ma, Yaowu Liu, Suojin Zhang, etc. The study of intake pipe length variable system [J]. Vehicle Engine. 2003, 4: 22-24.

[8] Wei Guan, Hongyin Yuan. The improvement design of CA6102 gasoline engine intake pipe [J]. Journal Of Jilin Agricultural University, 1996, 18(1): 72-76.
