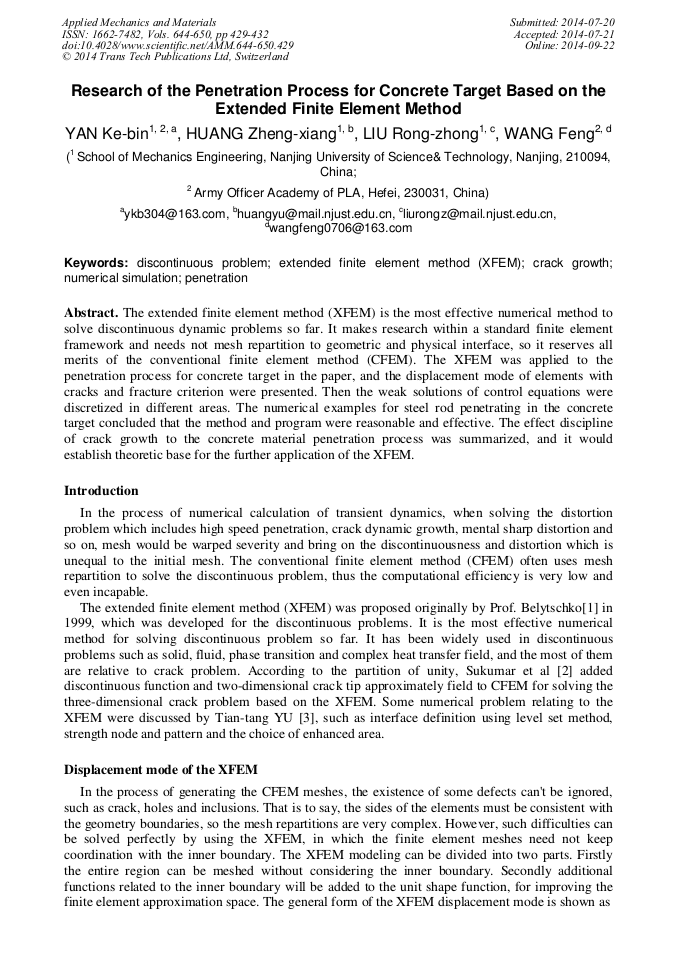

Research of the Penetration Process for Concrete Target Based on the Extended Finite Element Method

Abstract:

The extended finite element method (XFEM) is the most effective numerical method to solve discontinuous dynamic problems so far. It makes research within a standard finite element framework and needs not mesh repartition to geometric and physical interface, so it reserves all merits of the conventional finite element method (CFEM). The XFEM was applied to the penetration process for concrete target in the paper, and the displacement mode of elements with cracks and fracture criterion were presented. Then the weak solutions of control equations were discretized in different areas. The numerical examples for steel rod penetrating in the concrete target concluded that the method and program were reasonable and effective. The effect discipline of crack growth to the concrete material penetration process was summarized, and it would establish theoretic base for the further application of the XFEM.

• Periodical: Applied Mechanics and Materials (Volumes 644-650)
• Pages: 429-432
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.644-650.429
• Online since: September 2014
• Authors: Ke Bin Yan, Zheng Xiang Huang, Rong Zhong Liu, Feng Wang
• Keywords: Crack Growth, Discontinuous Problem, Extended Finite Element Method (XFEM), Numerical Simulation, Penetration

References

[1] Moes N, Dolbow J, Belytschko T. A finite element method for crack growth without remeshing [J]. International Journal for Numerical Methods in Engineering, 1999, 46: 131-150.

DOI: 10.1002/(sici)1097-0207(19990910)46:1<131::aid-nme726>3.0.co;2-j

[2] Sukumar N, Moes N, Moran B, et al. Extended finite element method for three-dimensional crack modeling [J]. International Journal for Numerical Methods in Engineering, 2000, 48: 1549-1570.

DOI: 10.1002/1097-0207(20000820)48:11<1549::aid-nme955>3.0.co;2-a

[3] Tian-tang YU. Numerical aspects of the extended finite element method [J]. Rock and Soil Mechanics, 2007, 28: 305-310. (in Chinese).

[4] Feng WANG, Xiao-jun WANG, Xiu-zhang HU, et al. Oblique penetration of an ogive-nosed rod into the aluminum target．Explosion and Shock Waves, 2005, 25(3): 265-270. (In Chinese).

[5] Feng WANG, Xiu-zhang HU, Xiao-jun WANG, et al．Numerical Simulations of an Ogive-noded Rod Penetration in the Concrete Target by Finite Element Method J]．Journal of Ballistics, 2008, 20(2): 1-4(In Chinese).
