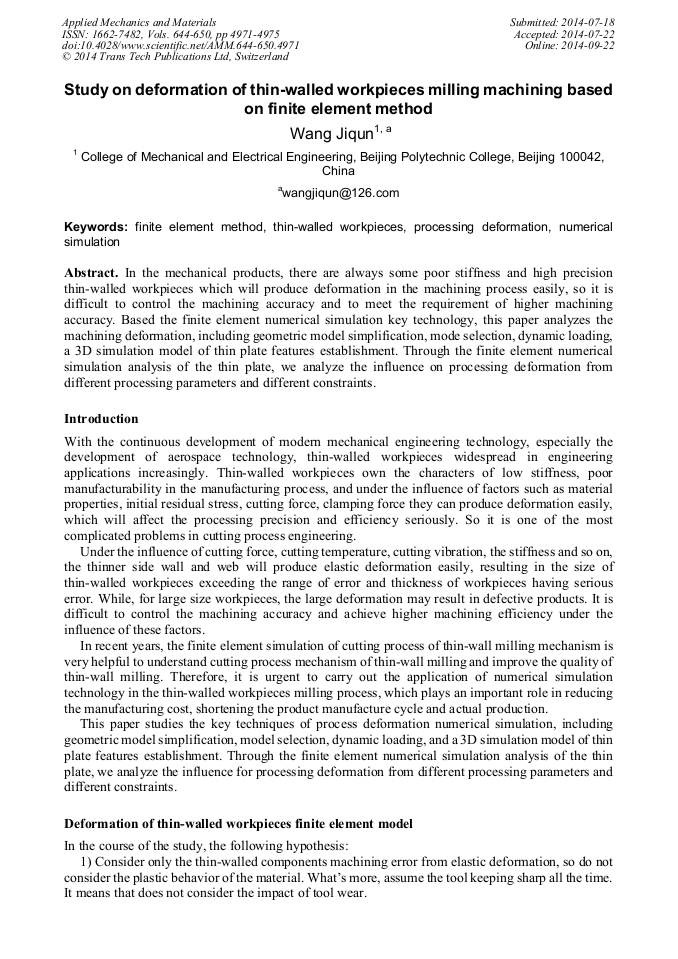

Study on Deformation of Thin-Walled Workpieces Milling Machining Based on Finite Element Method

Abstract:

In the mechanical products, there are always some poor stiffness and high precision thin-walled workpieces which will produce deformation in the machining process easily, so it is difficult to control the machining accuracy and to meet the requirement of higher machining accuracy. Based the finite element numerical simulation key technology, this paper analyzes the machining deformation, including geometric model simplification, mode selection, dynamic loading, a 3D simulation model of thin plate features establishment. Through the finite element numerical simulation analysis of the thin plate, we analyze the influence on processing deformation from different processing parameters and different constraints.

• Periodical: Applied Mechanics and Materials (Volumes 644-650)
• Pages: 4971-4975
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.644-650.4971
• Online since: September 2014
• Authors: Ji Qun Wang*
• Keywords: Finite Element Method (FEM), Numerical Simulation, Processing Deformation, Thin-Walled Workpieces

References

[1] Wang Zhi-gang, He Ning, Zhang Bing et al. (1. Department of Mechanical Engineering of NUAA, Nanjiny 210016; 2. Chengdu Industrial Enterprise of Aircrafts, Chengdu 610041).

[2] Kline W.A., DeVor R.E., Shareef I.A. The Prediction of Surface Accuracy in End Milling [J]. Transactions of ASME Journal of Engineering for Industry, 1982, 104: 272-278.

DOI: 10.1115/1.3185830

[3] Jer-Sh yong Tsai et al. Finite-element modeling of static surface errors in the peripheral milling ofthin-walled workieces, JJ. of Mater. Proc. Tech. 1999, 94: 235-246.

DOI: 10.1016/s0924-0136(99)00109-0

[4] Zhang B, Bagchi A. Finite element simulation of chip formation and comparison with machining experiment [J]. J. Eng. Ind., 1994, 116: 289-296.

DOI: 10.1115/1.2901944

[5] Ratchev S., Huang W., Liu S., et al. Modelling and simulation environment for machining of low-rigidity components[J]. Journal of Materials Processing Technology, 2004, 153-154: 67-73.

DOI: 10.1016/j.jmatprotec.2004.04.301

[6] Strenkowski J S, Shih A J, Lin J C. An analytical finite element model for predicting three-dimensional tool forces and chip flow [J]. Int. J. Mach. Tools Manuf., 2002, 42: 723-731.

DOI: 10.1016/s0890-6955(01)00162-6

[7] Mechanics of metal machining-from"deseriptive"to"predietive"theory，on the art of cutting metals: Attribute to F.W. Taylor，PED7, The winner annual meeting of the American Society of Mechanieal Engineers, Ed. KoPs,L. Ramalingam. S, 1995: 275-281.

[8] Sunju Fang, Wang Rong Wu finite element method and its application M. Beijing: Beijing University of Aeronautics and Astronautics Press, 1990: 42-44.

[9] Zengpan finite element analysis and application, Beijing: Tsinghua University Press, (2004).
