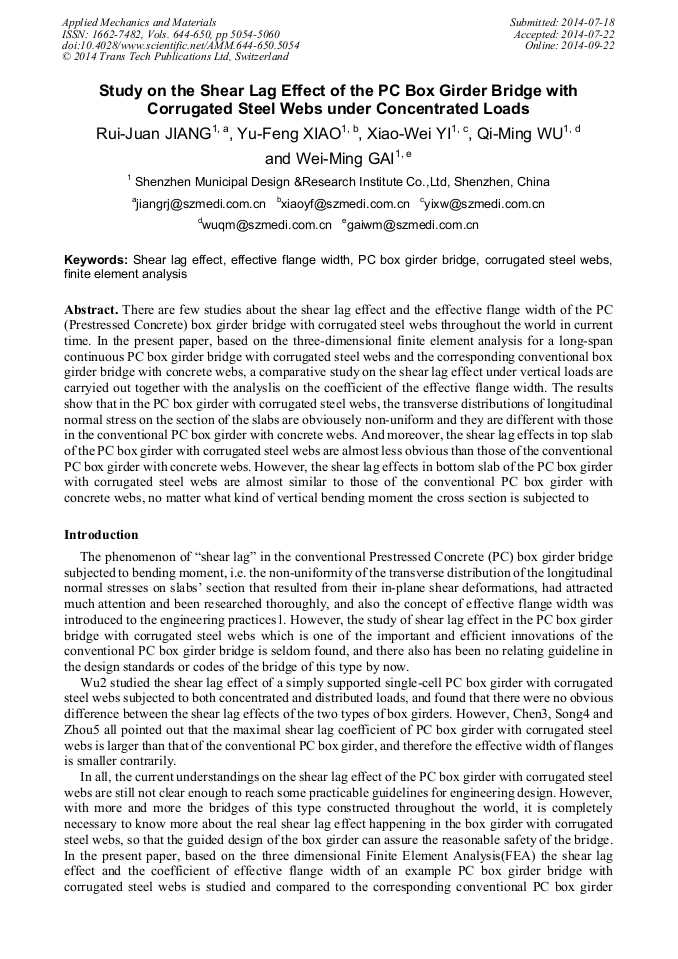

Study on the Shear Lag Effect of the PC Box Girder Bridge with Corrugated Steel Webs under Concentrated Loads

Abstract:

There are few studies about the shear lag effect and the effective flange width of the PC (Prestressed Concrete) box girder bridge with corrugated steel webs throughout the world in current time. In the present paper, based on the three-dimensional finite element analysis for a long-span continuous PC box girder bridge with corrugated steel webs and the corresponding conventional box girder bridge with concrete webs, a comparative study on the shear lag effect under vertical loads are carryied out together with the analyslis on the coefficient of the effective flange width. The results show that in the PC box girder with corrugated steel webs, the transverse distributions of longitudinal normal stress on the section of the slabs are obviousely non-uniform and they are different with those in the conventional PC box girder with concrete webs. And moreover, the shear lag effects in top slab of the PC box girder with corrugated steel webs are almost less obvious than those of the conventional PC box girder with concrete webs. However, the shear lag effects in bottom slab of the PC box girder with corrugated steel webs are almost similar to those of the conventional PC box girder with concrete webs, no matter what kind of vertical bending moment the cross section is subjected to

• Periodical: Applied Mechanics and Materials (Volumes 644-650)
• Pages: 5054-5060
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.644-650.5054
• Online since: September 2014
• Authors: Rui Juan Jiang*, Yu Feng Xiao, Xiao Wei Yi, Qi Ming Wu, Wei Ming Gai
• Keywords: Corrugated Steel Webs, Effective Flange Width, Finite Element Analysis (FEA), PC Box Girder Bridge, Shear Lag Effect

References

[1] Chang S.T. 2004. Shear Lag Effect in Simply Supported Prestressed Concrete Box Girder. Journal of Bridge Engineering 9(2): 178-184.

DOI: 10.1061/(asce)1084-0702(2004)9:2(178)

[2] Wu W.Q., Wan S., Ye J.S. 2004. 3-D Finite Element Analysis On Shear Lag Effect in Composite Box Girder with Corrugated Steel Web. China Civil Engineering Journal 37(9): 31-36.

[3] Chen X. 2008. Finite Element Analysis On Shear-Lag Effect in Curved Continuous Box-Girder with Corrugated Steel Webs (in Chinese). Chang'an: Chang'an University.

DOI: 10.1061/41064(358)310

[4] Song J., Hu Y., Yang Y.B. 2009. Shear Lag Effect of Composite Box Girder with Corrugated Steel Web (in Chinese). Urban Roads Bridges & Flood Control (9): 68-74.

[5] Zhou X.H., Zhang Q., He S.H., et al. 2005. The Mechanical Property of the Prestressed Concrete Composite Box Girders with Corrugated Steel Webs (in Chinese). Journal of Harbin Institute of Technology 37 supp.: 575-580.

[6] 2004. Code for Design of Highway Reinforced Concrete and Prestressed Concrete Bridges and Culverts JTG D62-2004. China Communication Press.

[7] Zhu M.Q. 2008. Experimental Research and Analysis On Shear Lag Effect of Concrete Thin-Walled Box Continuous Girder (in Chinese). J. Cent. South Univ. (Science and Technology) 39(2): 375-379.
