Parameterized Modeling of Involute Helical Gear by UG Based on Symmetric Equation

Abstract:

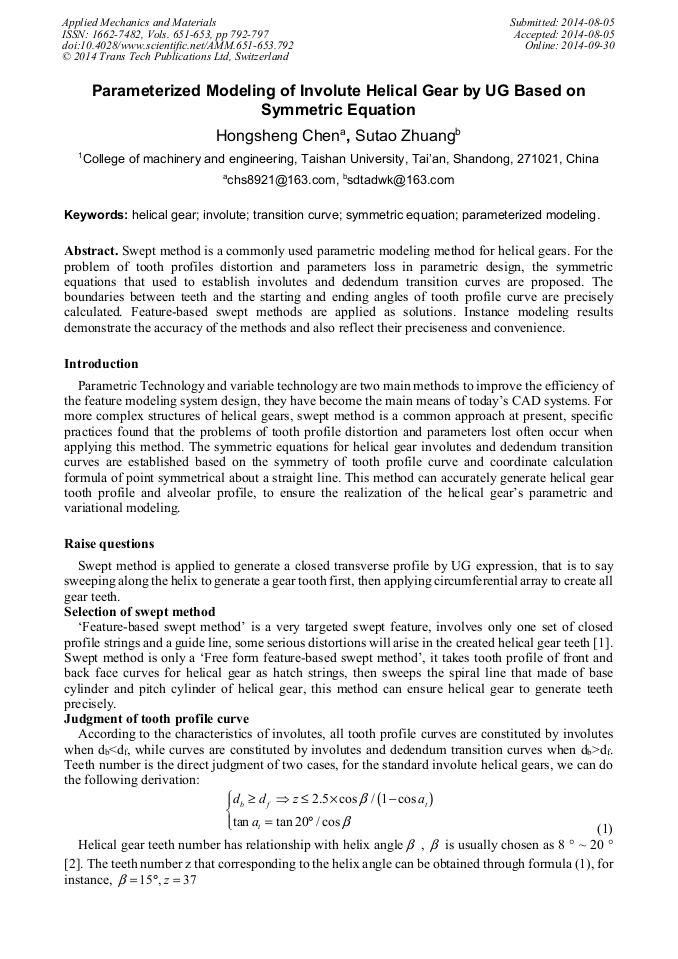

Swept method is a commonly used parametric modeling method for helical gears. For the problem of tooth profiles distortion and parameters loss in parametric design, the symmetric equations that used to establish involutes and dedendum transition curves are proposed. The boundaries between teeth and the starting and ending angles of tooth profile curve are precisely calculated. Feature-based swept methods are applied as solutions. Instance modeling results demonstrate the accuracy of the methods and also reflect their preciseness and convenience.

You might also be interested in these eBooks

Material Science, Civil Engineering and Architecture Science, Mechanical Engineering and Manufacturing Technology II

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 651-653)

Pages:

792-797

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.651-653.792

Citation:

Cite this paper

Online since:

September 2014

Authors:

Hong Sheng Chen*, Su Tao Zhuang

Keywords:

Helical Gear, Involute, Parameterized Modeling, Symmetric Equation, Transition Curve
