Gamma Titanium Aluminides Behavior at High Temperature Static Short-Term Stress

Abstract:

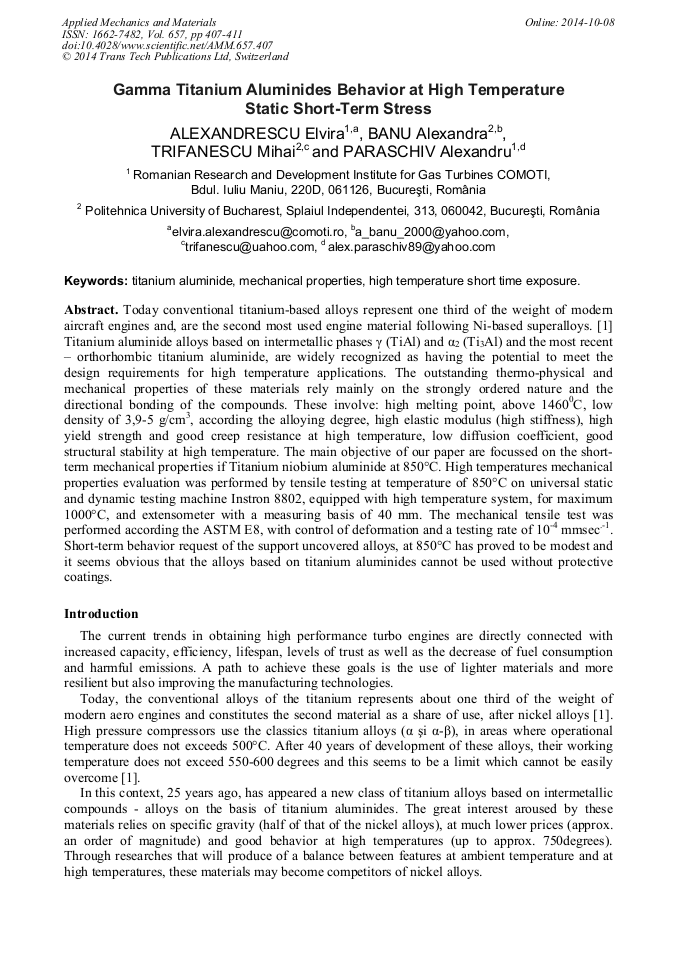

Today conventional titanium-based alloys represent one third of the weight of modern aircraft engines and, are the second most used engine material following Ni-based superalloys. [1] Titanium aluminide alloys based on intermetallic phases γ (TiAl) and α₂ (Ti₃Al) and the most recent – orthorhombic titanium aluminide, are widely recognized as having the potential to meet the design requirements for high temperature applications. The outstanding thermo-physical and mechanical properties of these materials rely mainly on the strongly ordered nature and the directional bonding of the compounds. These involve: high melting point, above 1460°C, low density of 3,9-5 g/cm³, according the alloying degree, high elastic modulus (high stiffness), high yield strength and good creep resistance at high temperature, low diffusion coefficient, good structural stability at high temperature. The main objective of our paper are focussed on the short-term mechanical properties if Titanium niobium aluminide at 850°C. High temperatures mechanical properties evaluation was performed by tensile testing at temperature of 850°C on universal static and dynamic testing machine Instron 8802, equipped with high temperature system, for maximum 1000°C, and extensometer with a measuring basis of 40 mm. The mechanical tensile test was performed according the ASTM E8, with control of deformation and a testing rate of 10^-4 mmsec^.-1. Short-term behavior request of the support uncovered alloys, at 850°C has proved to be modest and it seems obvious that the alloys based on titanium aluminides cannot be used without protective coatings. Key words: titanium aluminides, high temperatures, mechanical properties

• Periodical: Applied Mechanics and Materials (Volume 657)
• Pages: 407-411
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.657.407
• Online since: October 2014
• Authors: Elvira Alexandrescu*, Alexandra Banu, Mihai Trifănescu, Alexandru Paraschiv
• Keywords: High Temperature Short Time Exposure, Mechanical Property, Titanium Aluminide

References

[1] P.M. Sousa, A.J. Silvestre, O. Conde, Cr2O3 thin films grown at room temperature by low pressure laser chemical vapour deposition, Thin Solid Films 519 (2011) 3653–3657.

DOI: 10.1016/j.tsf.2011.01.382

[2] M. Marcius, M. Ristic, M. Ivanda, S. Music, Formation and microstructure of nickel oxide films, Journal of Alloys and Compounds 541 (2012) 238–243.

DOI: 10.1016/j.jallcom.2012.07.021

[3] D. K Aspinwall, R. C Dewes, D Clifton, P Bowen, The effects of machined workpiece surface integrity on the fatigue life of γ-titanium aluminide, International Journal of Machine Tools and Manufacture. Volume 41, Issue 11 (2001)1681-1685.

DOI: 10.1016/s0890-6955(01)00034-7

[4] S. Sarkar, S. Mitra and B. Bhattacharyya, Parametric optimisation of wire electrical discharge machining of γ titanium aluminide alloy through an artificial neural network model , The International Journal of Advanced Manufacturing Technology. 27, 5-6 (2006).

DOI: 10.1007/s00170-004-2203-7

[5] S. Sarkar, S. Mitra, B. Bhattacharyya, Wire electrical discharge machining of gamma titanium aluminide for optimum process criteria yield in single pass cutting operation, International Journal of Manufacturing Technology and Management. Vol. 7, No. 2/3/4 (2005).

DOI: 10.1504/ijmtm.2005.006831

[6] L. Nelson, H. H. K. Xu, S. Danyluk , S. Jahanmir, Subsurface damage in grinding titanium aluminide, Machining Science and Technology. Volume 1, Issue 2 (1997) 289-297.

DOI: 10.1080/10940349708945653

[7] ASTM E 8- Standard Test Methods for Tension Testing of Metallic Materials, (2001).

[8] M E 139 – Standard Test Methods for Conducting Creep, Creep-Rupture and Stress-Rupture Tests of Metallic Materials, (2000).

DOI: 10.1520/e0139-96

[9] ASTM E 83-Standard Practice for Verification and Classification of Extensometer Systems, (2010).

[10] ASTM E 384 -Standard Test Method for Knoop and Vickers Hardness of Materials, (2011).
