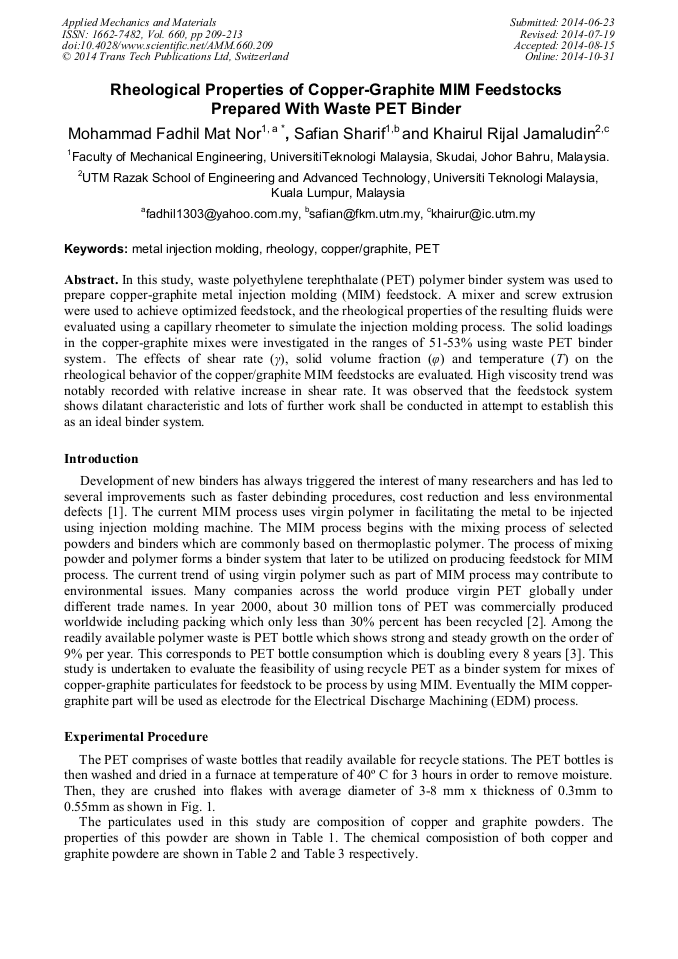

Rheological Properties of Copper-Graphite MIM Feedstocks Prepared with Waste PET Binder

Abstract:

In this study, waste polyethylene terephthalate (PET) polymer binder systems were used to prepare copper-graphite metal injection molding (MIM) feedstock. A mixer and screw extrusion were used to achieve optimized feedstock, and the rheological properties of the resulting fluids were evaluated using a capillary rheometry to simulate the injection molding process. The solid loadings in the copper-graphite mixes were investigated in the ranges of 51-53% using PET binder system. The effects of shear rate (γ), solid volume fraction (φ) and temperature (T) on the rheological behavior of the copper/graphite MIM feedstocks are discussed.High viscosity trend was notably recorded as shear rate increased relatively. The results indicated that this feedstock system shows dilatant characteristic and lots of further work shall be conducted in attempt to establish this as an ideal binder system.

You might also be interested in these eBooks

Advances in Mechanical, Materials and Manufacturing Engineering

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 660)

Pages:

209-213

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.660.209

Citation:

Cite this paper

Online since:

October 2014

Authors:

Mohammad Fadhil Mat Nor*, Safian Sharif, Khairur Rijal Jamaludin

Keywords:

Copper/Graphite, Metal Injection Molding (MIM), PET, Rheology

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Abolhasni and N. Muhamad. A new starch-based binder for metal injection molding, J. Mat. Proc. Tech. 210 (2010), 961-968.

DOI: 10.1016/j.jmatprotec.2010.02.008

Google Scholar

[2] B. Claudio, Recycling PET; Bottle to bottle process application, Scientific article presented at the 10th World Congress of Polyester, Amsterdam, The Netherlands. (2005).

Google Scholar

[3] B. Kuczenski, R. Geyer. Material flow analysis of Polyethylene Terephthalate in the US, 1996-2007, Resources, Conservation, and Recycling 54 (2010), 12, 1161-1169.

DOI: 10.1016/j.resconrec.2010.03.013

Google Scholar

[4] Sonntag, Reactions of Fats and Fatty Acids. Bailey's Industrial Oil and Fat Products, John Wiley and Sons, 1-176 (1979).

Google Scholar

[5] A. Abdul Azis, Y. Mohamud, K. Roselina, H.C. Boo, L. C, Nyuk, Y.B. Che Man, Rheological, chemical and DSC thermal characteristics of different types of palm oil/palm stearin-based shortenings, International Food Research Journal 18 (2011).

Google Scholar

[6] Shimadzu. Shimadzu flowtester CFT-500D: Instruction manual. Kyoto: Shimadzu Corp.

Google Scholar

[7] M. Khakbiz, A. Simchi, R. Bagheri, Analysis of the rheological behavior and stability of 316L stainless steel- TiC powder injection molding feedstock", Mat. Sci. and Eng. A, (2005), Vol. 407, 105-113.

DOI: 10.1016/j.msea.2005.06.057

Google Scholar

[8] M. German, A. Bose, Injection Molding of Metals and Ceramic, Metal Powder Industries Federation, Princeton, New Jersey. (1997).

Google Scholar

[9] M.K. Akkapedi, B. Van Buskirk, C.D. Mason, Performance blends based on recycled polymers. Polymer Eng, Sci , 35(1) (1995), 72-78.

DOI: 10.1002/pen.760350110

Google Scholar
