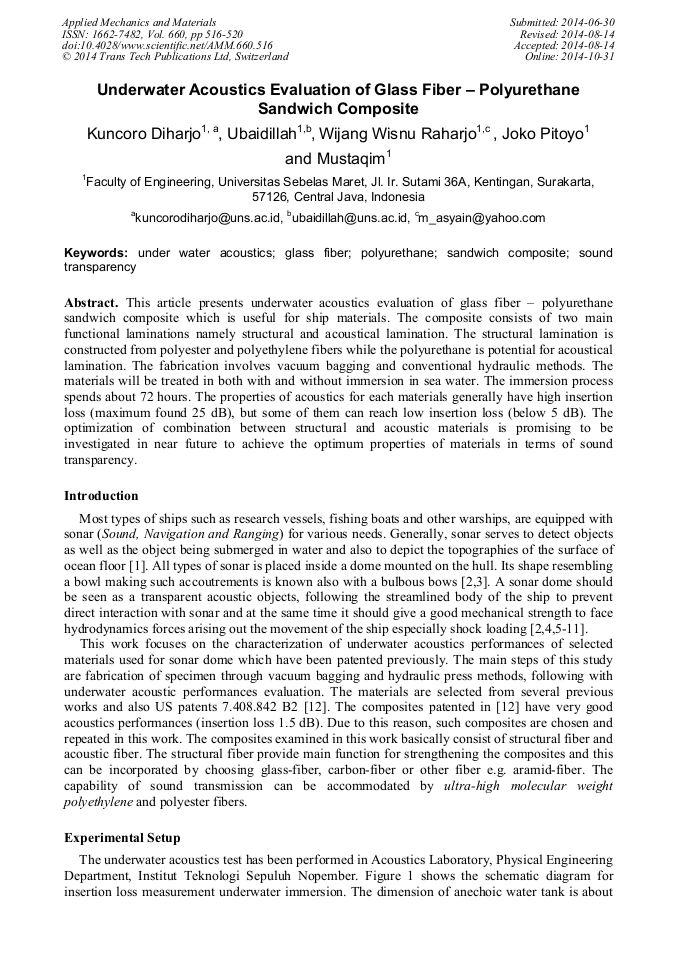

Underwater Acoustics Evaluation of Glass Fiber – Polyurethane Sandwich Composite

Abstract:

This article presents underwater acoustics evaluation of glass fiber – polyurethane sandwich composite which is useful for ship materials. The composite consists of two main functional laminations namely structural and acoustical lamination. The structural lamination is constructed from polyester and polyethylene fibers while the polyurethane is potential for acoustical lamination. The fabrication involves vacuum bagging and conventional hydraulic methods. The materials will be treated in both with and without immersion in sea water. The immersion process takes time about 72 hours. The properties of acoustics for each materials generally have high insertion loss (maximum found 25 dB), but some of them can reach low insertion loss (below 5 dB). The optimization of combination between structural and acoustic materials is promising to be investigated in near future to achieve the optimum properties of materials in terms of sound transparency.

• Periodical: Applied Mechanics and Materials (Volume 660)
• Pages: 516-520
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.660.516
• Online since: October 2014
• Authors: Kuncoro Diharjo, Ubaidillah Ubaidillah*, Wijang Wisnu Raharjo, Joko Pitoyo, Mustaqim Mustaqim
• Keywords: Glass Fiber, Polyurethane, Sandwich Composite, Sound Transparency, Under Water Acoustics

References

[1] Ji-Hye Lee, Byoung-Nam Kim, Ku-Kyun Shin, Suk Wang Yoon. Insertion loss of sound waves through composite acoustic window materials. Current Applied Physics 2010: 10: 138-144.

DOI: 10.1016/j.cap.2009.05.017

[2] P.K. Chakravorty, V. Bhujanga Rao. Some Aspect in the Design of Sonar Domes. Def Sci 1982: 32(1)47-54.

[3] A. Kootsookos, A.P. Mouritz. Seawater durability of glass and carbon-polymer composites. Composites Science and Technology 2004: 64: 1503-1511.

DOI: 10.1016/j.compscitech.2003.10.019

[4] E.P. Gellert, D.M. Turley. Seawater immersion ageing of glass-fibre reinforced polymer laminates for marine applications. Composites 1999: 30(A)1259-1265.

DOI: 10.1016/s1359-835x(99)00037-8

[5] Ji-Hye Lee, Byoung-Nam Kim, Ku-Kyun Shin, Jae-Jin Jeon, Suk Wang Yoon. A study of acoustic characteristics for sonar dome window materials. Proceedings of the Acoustical Society of Korea Conference 2007: 26(2s): 173-174.

[6] G.R. Barnard, J.L. Bardin, J.W. Whiteley. Acoustic reflection and transmission characteristics for thin plates. J. Acoust. Soc. Am. 1975: 57(3): 577-584.

DOI: 10.1121/1.380486

[7] V. Bhujanga Rao. Flow-Induced Noise of a Sonar Dome-Part 1. Applied Acoustic 1985: 18: 21-33.

DOI: 10.1016/0003-682x(85)90003-9

[8] C.M. Roland. Naval Applications of Elastomers.

[9] Apicella A, Migliaresi C, Nicolais L, Roccotelli S. The water aging of unsaturated polyester-based composites: influence of resin chemical structure. Composites 1983: 14: 387-392.

DOI: 10.1016/0010-4361(83)90160-x

[10] Y.L. Young. Fluid-structure interaction analysis of flexible composite marine propellers. Journal of Fluid and Structures 2008: 24: 799-818.

DOI: 10.1016/j.jfluidstructs.2007.12.010

[11] Karl D'Souza, Subham Sett, Woo-Jin Jung, Ku-Kyun Shin, Young-Hwan Lee. Modeling the Structural and Acoustic Behavior of a Sonar Dome with ABAQUS. ABAQUS User's Conference (2006).

[12] Anthony A.C. Sonar Dome,. USA. US 7408842 B2, Aug. 5, (2008).

[13] Y. Xiao, Y.P. Zhang, J.H. Gibson, G.G. Xie, H. Chen,. Performance Analysis of ALOHA and p-persistent ALOHA for Multi-hop Underwater Acoustic Sensor Networks. Cluster Computing 2011: 14: 65-80.

DOI: 10.1007/s10586-009-0093-z
