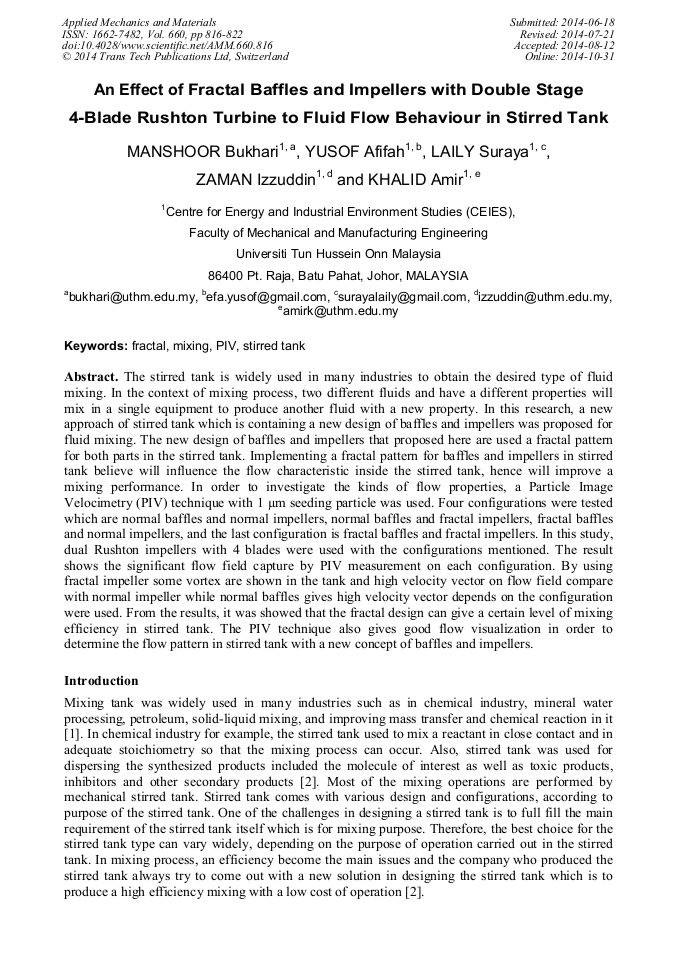

An Effect of Fractal Baffles and Impellers with Double Stage 4-Blade Rushton Turbine to Fluid Flow Behaviour in Stirred Tank

Abstract:

The stirred tank is widely used in many industries to obtain the desired type of fluid mixing. In the context of mixing process, two different fluids and have a different properties will mix in a single equipment to produce another fluid with a new property. In this research, a new approach of stirred tank which is containing a new design of baffles and impellers was proposed for fluid mixing. The new design of baffles and impellers that proposed here are used a fractal pattern for both parts in the stirred tank. Implementing a fractal pattern for baffles and impellers in stirred tank believe will influence the flow characteristic inside the stirred tank, hence will improve a mixing performance. In order to investigate the kinds of flow properties, a Particle Image Velocimetry (PIV) technique with 1 μm seeding particle was used. Four configurations were tested which are normal baffles and normal impellers, normal baffles and fractal impellers, fractal baffles and normal impellers, and the last configuration is fractal baffles and fractal impellers. In this study, dual Rushton impellers with 4 blades were used with the configurations mentioned. The result shows the significant flow field capture by PIV measurement on each configuration. By using fractal impeller some vortex are shown in the tank and high velocity vector on flow field compare with normal impeller while normal baffles gives high velocity vector depends on the configuration were used. From the results, it was showed that the fractal design can give a certain level of mixing efficiency in stirred tank. The PIV technique also gives good flow visualization in order to determine the flow pattern in stirred tank with a new concept of baffles and impellers.

• Periodical: Applied Mechanics and Materials (Volume 660)
• Pages: 816-822
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.660.816
• Online since: October 2014
• Authors: Bukhari Manshoor*, Afifah Yusof, Suraya Laily, Izzuddin Zaman, Amir Khalid
• Keywords: Fractal, Mixing, PIV, Stirred Tank

References

[1] Zadghaffari R, Moghaddas J.S. and Revstedt J. A Study on Liquid-Liquid Mixing in a Stirred Tank with a 6-Blade Rushton Turbine, Iranian Journal of Chemical Engineering. (2008) 5(4): 12-22.

DOI: 10.1016/j.compchemeng.2009.01.017

[2] Aubin J., Kresta S.M., Bertrand J., Xuereb C. and Fletcher D.F. Alternate Operating Methods for Improving the Performance of a Continuous Stirred Tank Reactor, Trans IChemE, (2006) 84: 569-582.

DOI: 10.1205/cherd.05216

[3] Kchaou H., Driss Z., Bouzgarrou G., Chtourou W., and Abid M.S. Numerical investigation of internal turbulent flow generated by a flat-blade turbine and a pitched-blade turbine in a vessel tank, International Review of Mechanical Engineering. (2008).

DOI: 10.5923/j.mechanics.20120201.03

[4] Driss Z., Bouzgarrou G., Chtourou W., Kchaou H., and Abid M.S. Computational studies of the pitched blade turbines design effect on the stirred tank flow characteristics, European Journal of Mechanics B/Fluids. (2010) 29: 236-245.

DOI: 10.1016/j.euromechflu.2010.01.006

[5] Weng Z.X., Huang Z.M., Li Y.M. The effect of the distance between multiple impellers in the turbulent tank", Chemical Engineering, (1983) 6: 1-6 (1983).

[6] Mishra V.P. and Joshi J.B. Flow generated by a disc turbine multiple impellers, Trans. IchemE, 7(1994) 2: 657-668.

[7] Franco M., Giuseppina M., Davide P., and Alessandra P, Mixing time in high aspect ratio vessel with multiple impeller, Chemical Engineering Science, (2013) 101: 712-720.

[8] Zalc J.M., Szalai E.S., Alvarez M.M. and Muzzio F.J., Using CFD to understand chaotic mixing in laminar stirred tanks, AIChE Journal, (2002), 48; 2124-2134.

DOI: 10.1002/aic.690481004

[9] Montante G, Lee K. C, Brucato A. and Yianneskis M. Experiments and predictions of the transition of the flow pattern with impeller clearance in stirred tanks. Computers and Chemical Engineering. (2001) 25: 729-735.

DOI: 10.1016/s0098-1354(01)00648-2

[10] Costes J. and Couderc J.P., Study by laser Doppler anemometry of the turbulent flow induced by a Rushton turbine in stirred tank: Influence of the size of the units. Chemical Engineering Science. (1988) 43: 2754-2772.

DOI: 10.1016/0009-2509(88)80019-8

[11] Manshoor B, Nicolleau FCGA and Beck SBM. The fractal flow conditioner for orifice plate flow meters. Flow Measurement and Instrumentation. (2011) 22: 208–214.

DOI: 10.1016/j.flowmeasinst.2011.02.003

[12] Manshoor B, Zaman I, Othman MF and Amir Khalid. Experimental study of circle grid fractal pattern on turbulent intensity in pipe flow. IOP Conference Series: Materials Science and Engineering. (2013) 50(1): 012014.

DOI: 10.1088/1757-899x/50/1/012014

[13] Manshoor B, Zaman I. and Amir Khalid. Experimental study of pressure drop after the circle grids fractal orifice. Applied Mechanics and Materials. (2010) 390: 111-115.

DOI: 10.4028/www.scientific.net/amm.390.111

[14] Hurst D. and Vassilicos J.C., Scalings and decay of fractal-generated turbulence. Physics of Fluids. (2007) 19(3).

DOI: 10.1063/1.2676448
