Design of the Millimeter-Wave Microstrip Array Antenna

Abstract:

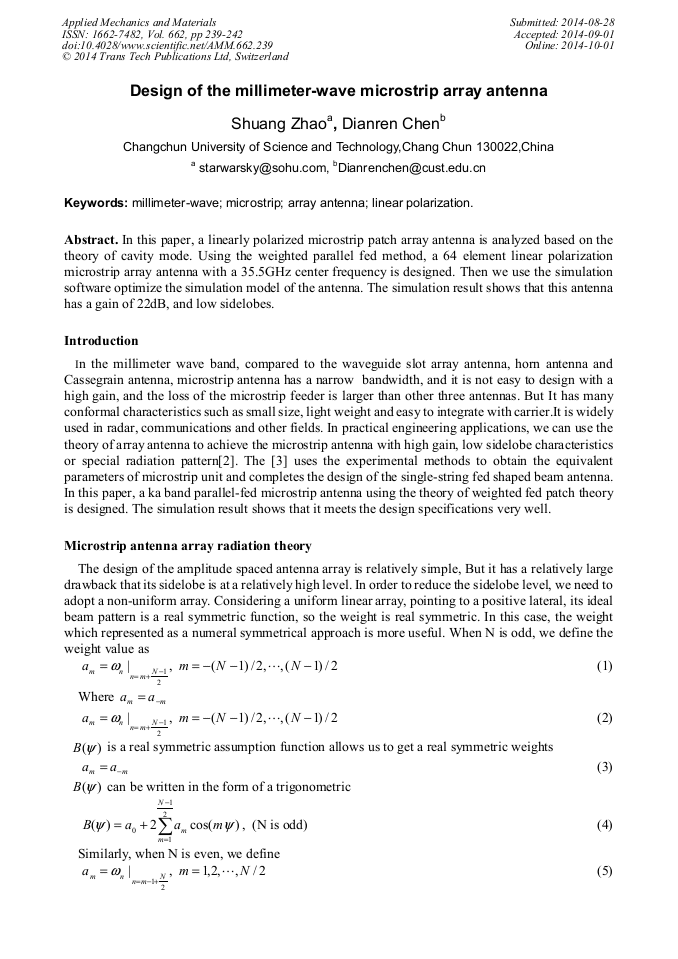

In this paper, a linearly polarized microstrip patch array antenna is analyzed based on the theory of cavity mode. Using the weighted parallel fed method, a 64 element linear polarization microstrip array antenna with a 35.5GHz center frequency is designed. Then we use the simulation software optimize the simulation model of the antenna. The simulation result shows that this antenna has a gain of 22dB, and low sidelobes.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 662)

Pages:

239-242

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.662.239

Citation:

Cite this paper

Online since:

October 2014

Authors:

Shuang Zhao*, Dian Ren Chen

Keywords:

Array Antenna, Linear Polarization, Microstrip, Millimeter-Wave
