Hardware-in-Loop of Fault Detection System for Air-Fuel Ratio Control

Abstract:

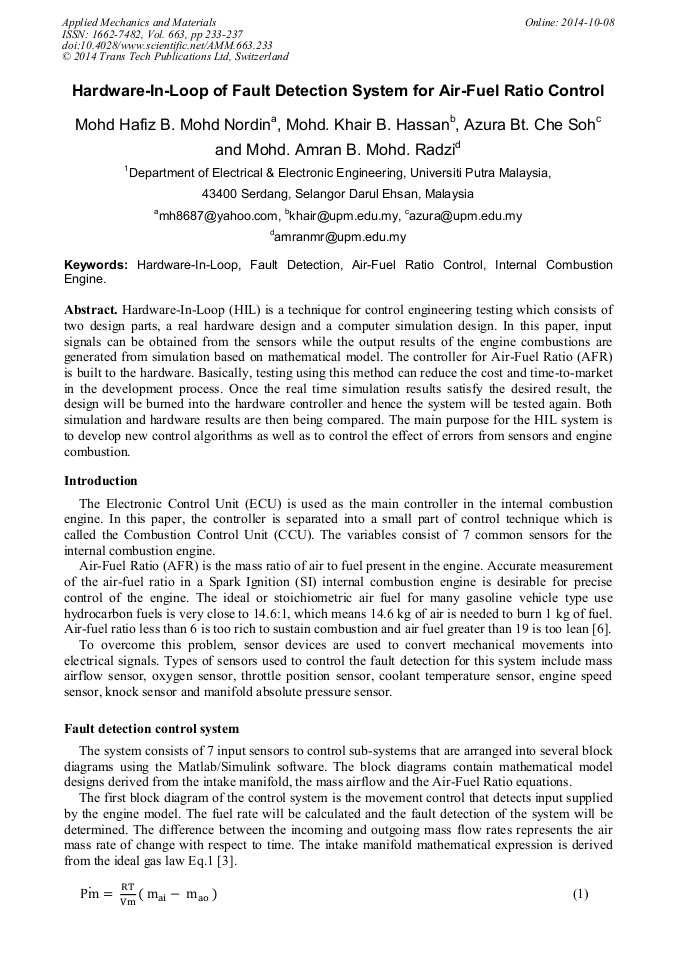

Hardware-In-Loop (HIL) is a technique for control engineering testing which consists of two design parts, a real hardware design and a computer simulation design. In this paper, input signals can be obtained from the sensors while the output results of the engine combustions are generated from simulation based on mathematical model. The controller for Air-Fuel Ratio (AFR) is built to the hardware. Basically, testing using this method can reduce the cost and time-to-market in the development process. Once the real time simulation results satisfy the desired result, the design will be burned into the hardware controller and hence the system will be tested again. Both simulation and hardware results are then being compared. The main purpose for the HIL system is to develop new control algorithms as well as to control the effect of errors from sensors and engine combustion.

You might also be interested in these eBooks

Automotive Engineering and Mobility Research

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 663)

Pages:

233-237

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.663.233

Citation:

Cite this paper

Online since:

October 2014

Authors:

Mohd Hafiz B. Mohd Nordin*, Mohd. Khair B. Hassan, Azura B. Che Soh, Mohd Amran B. Mohd Radzi

Keywords:

Air-Fuel Ratio Control, Fault Detection, Hardware-in-Loop, Internal Combustion Engine
