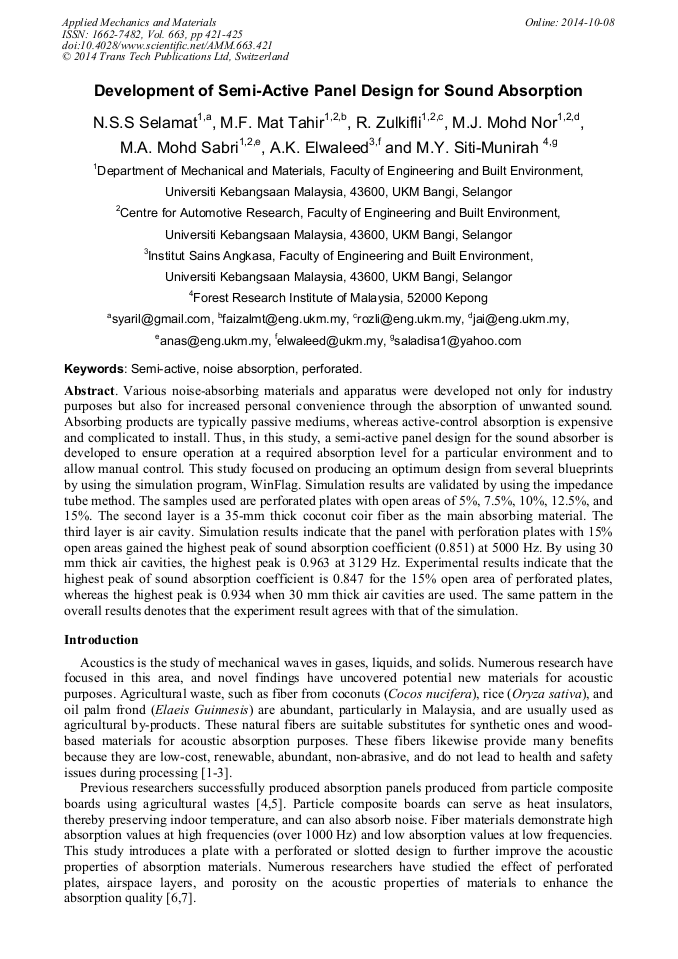

Development of Semi-Active Panel Design for Sound Absorption

Abstract:

Various noise-absorbing materials and apparatus were developed not only for industry purposes but also for increased personal convenience through the absorption of unwanted sound. Absorbing products are typically passive mediums, whereas active-control absorption is expensive and complicated to install. Thus, in this study, a semi-active panel design for the sound absorber is developed to ensure operation at a required absorption level for a particular environment and to allow manual control. This study focused on producing an optimum design from several blueprints by using the simulation program, WinFlag. Simulation results are validated by using the impedance tube method. The samples used are perforated plates with open areas of 5%, 7.5%, 10%, 12.5%, ​​and 15%. The second layer is a 35-mm thick coconut coir fiber as the main absorbing material. The third layer is air cavity. Simulation results indicate that the panel with perforation plates with 15% open areas gained the highest peak of sound absorption coefficient (0.851) at 5000 Hz. By using 30 mm thick air cavities, the highest peak is 0.963 at 3129 Hz. Experimental results indicate that the highest peak of sound absorption coefficient is 0.847 for the 15% open area of perforated plates, whereas the highest peak is 0.934 when 30 mm thick air cavities are used. The same pattern in the overall results denotes that the experiment result agrees with that of the simulation

• Periodical: Applied Mechanics and Materials (Volume 663)
• Pages: 421-425
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.663.421
• Online since: October 2014
• Authors: N.S.S. Selamat, Mohd Faizal Mat Tahir, Rozli Zulkifli, Mohd Jailani Mohd Nor, Mohd Anas Mohd Sabri, A.K. Elwaleed, M.Y. Siti-Munirah
• Keywords: Noise Absorption, Perforated, Semi-Active

References

[1] P. Wambua, J. Ivens, I. Verpoest,  Natural fibers: Can they replace glass in fiber reinforced plastics?, Compos. Sci. Tech. 63 (2003) 1259-1264.

DOI: 10.1016/s0266-3538(03)00096-4

[2] S.V. Joshi, L.T. Drzal, A.K. Mohanty, S. Arora, Are natural fiber composites environmentally superior to glass fiber reinforced composites?, Composites Part A: Applied Science and Manufacturing. 35 (2004) 371-376.

DOI: 10.1016/j.compositesa.2003.09.016

[3] R. Zulkifli, M.J. Mohd Nor, M.F. Mat Tahir, A.R. Ismail, Acoustic properties of multi-layer coir fibers sound absorption panel, Journal of Applied Sciences. 8, 20 (2008) 3709-3714.

DOI: 10.3923/jas.2008.3709.3714

[4] J. Khedari, S. Charoenvai, J. Hirunlabh, New insulating particleboards from durian peel and coconut coir, Building and Environment. 38, 3 (2003) 435-441.

DOI: 10.1016/s0360-1323(02)00030-6

[5] H-S. Yang, D-J., Kim, H-J. Kim, Rice straw-wood particle composite for sound absorbing wooden construction materials, Bioresource Technology. 86, 2 (2003) 117-121.

DOI: 10.1016/s0960-8524(02)00163-3

[6] W.A. Davern, Perforated facings backed with porous material as sound absorber-an experimental study, Applied Acoustics. 10 (1977) 85-112.

DOI: 10.1016/0003-682x(77)90019-6

[7] R. Zulkifli, Effect of perforated size and air gap thickness on acoustic properties of coir fiber sound absorber, European Journal of Scientific Research. 28, 2 (2009) 242-252.

[8] R.T. Randeberg, Perforated Panel Absorbers With Viscous Energy Dissipation Enhanced By Orifice Design, PhD, NTU (2000).

[9] Fadzlita, Rekabentuk dan Pengujian Panel Komposit Penyerap Bunyi Semi-aktif Menggunakan Bahan Sabut Kelapa, Tesis Sarjana (2006).

[10] F. -C. Lee, W. -H. Chen, Acoustic transmission analysis of multi-layer absorbers, J. Sound Vib. 248, 4 (2001) 621-634.

DOI: 10.1006/jsvi.2001.3825
