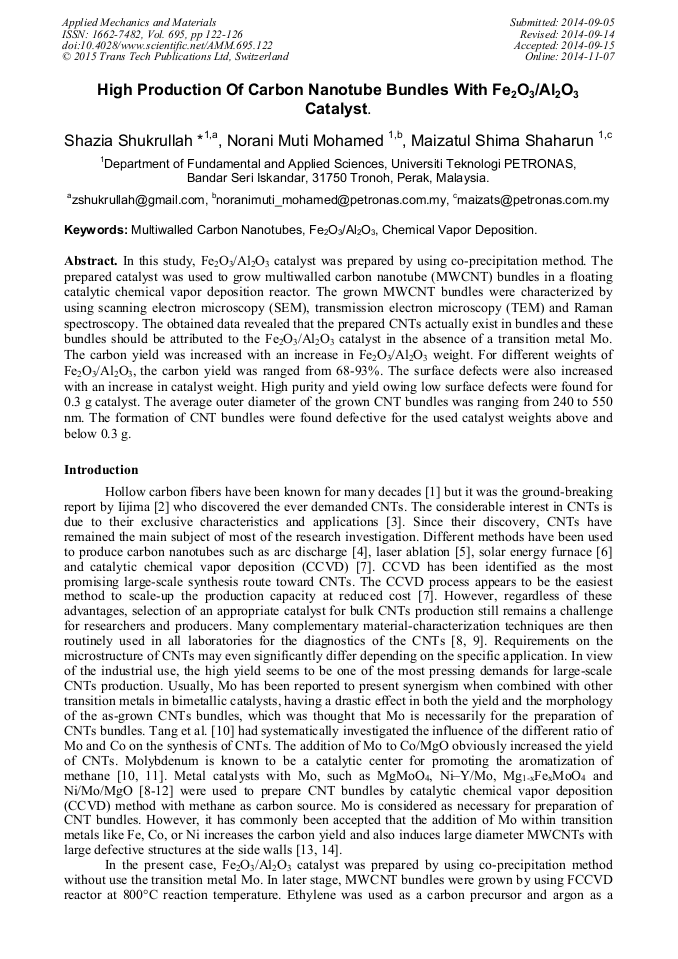

High Production of Carbon Nanotube Bundles with Fe₂O₃/Al₂O₃ Catalyst

Abstract:

In this study, Fe₂O₃/Al₂O₃ catalyst was prepared by using co-precipitation method. This catalyst weight was varied from 0.1 to 0.5 g and multiwalled carbon nanotubes (MWCNTs) bundles were synthesized with ethylene as a carbon precursor at reaction temperature of 800°C by using floating catalytic chemical vapor deposition reactor. The grown MWCNTs bundles were characterized by using scanning electron microscopy (SEM), transmission electron microscopy (TEM) and Raman spectroscopy. The obtained data revealed that as prepared CNTs actually existed in bundles and these should be attributed to the Fe₂O₃/Al₂O₃ catalyst, as transition metal Mo was not used in the catalyst. It was noted that an increase in weight of the catalyst significantly affects the quality, quantity, crystallinity, diameter and the growth of nanotubes bundles. Nanotubes yield increased with an increase in Fe₂O₃/Al₂O₃ weight. The carbon yield obtained with different weights of Fe₂O₃/Al₂O₃ was ranging from 68-93%. However, the surface defects in the grown tubes were also increased with an increase in the catalyst weight. High purity and high yield with the low surface defects was found for 0.3 g catalyst. It was found that less value of I_D/I_G ratio (0.78) was obtained in case of 0.3 g catalyst which indicated the structural perfection and low defect levels. The average outer diameter of the grown CNTs bundles were ranged from 240 to 550 nm. The formation of CNTs bundles were found defective with few black spots and impure above and below the use of 0.3 g catalyst.

• Periodical: Applied Mechanics and Materials (Volume 695)
• Pages: 122-126
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.695.122
• Online since: November 2014
• Authors: Shazia Shukrullah*, Norani Muti Mohamed, Maizatul Shima Shaharun
• Keywords: Chemical Vapor Deposition (CVD), Fe₂O₃/Al₂O₃, Multiwall Carbon Nanotube

References

[1] M. Monthioux, V. L. Kuznetsov, Who should be given the credit for the discovery of carbon nanotubes, Carbon 44 (2006) 1621–1623.

DOI: 10.1016/j.carbon.2006.03.019

[2] S. Iijima, Helical microtubules of graphitic carbon, Nature 354 (1991) 56–58.

DOI: 10.1038/354056a0

[3] N. Grobert, Review Carbon nanotubes – becoming clean, Mater. Today 10 (2007) 28–35.

DOI: 10.1016/s1369-7021(06)71789-8

[4] J. L. Hutchison, N. A. Kiselev, E. P. Krinichnaya, A. V. Krestinin, R. O. Loutfy, A. P. Morawsky, V. E. Muradyan, E. D. Obraztsova, J. Sloan, S. V. Terekhov, D. N. Zakharov, Double-walled carbon nanotubes fabricated by a hydrogen arc discharge method, Carbon 39 (2001).

DOI: 10.1016/s0008-6223(00)00187-1

[5] C. Chen, W. Chen, Y. Zhang, Synthesis of carbon nano-tubes by pulsed laser-ablation at normal pressure in metal nano-sol. Physica E 28 (2005) 121-127.

DOI: 10.1016/j.physe.2005.02.006

[6] D. Laplaze, P. Bernier, W.K. Maser, G. Flamant, T. Guillard, A. Loiseau, Carbon nanotubes: The solar approach, Carbon 36 (1998) 685–688.

DOI: 10.1016/s0008-6223(98)00025-6

[7] S. Shukrullah, N. M. Mohamed, M. S. Shaharun, and M. Y. Naz, Effect of ferrocene concentration on the quality of multiwalled the CNTs grown by floating catalytic chemical vapor deposition technique, Main Group Chem. 13 (3) (2014) 251-259.

DOI: 10.3233/mgc-140138

[8] M. Wang, X. Q. Wang, Z. H. Li, Z. Y. Liu, P.M. He, An efficient method to produce single-walled carbon nanotubes by Round-Trip Arc Discharge, Mater. Phys. Chem. 97 (2006) 243.

DOI: 10.1016/j.matchemphys.2005.08.044

[9] S. Shukrullah, N. M. Mohamed, M. S. Shaharun and M. Y. Naz, Mass production of carbon nanotubes using fluidized bed reactor: a short review, Trends Appl. Sci. Res. 9 (2014) 121-131.

DOI: 10.3923/tasr.2014.121.131

[10] S. Tang, Z. Zhong, Z. Xiong, L. Sun, L. Liu, J. Lin, Z. X. Shen, K. L. Tan, Controlled growth of single-walled carbon nanotubes by catalytic decomposition of CH4 over Mo/Co/MgO catalysts, Chem. Phys. Lett. 350 (2001) 19.

DOI: 10.1016/s0009-2614(01)01183-6

[11] X. Q. Wang, L. Li, N. J. Chu, Y. Pi Liu, H. X. Jin, H. Liang Ge, Lamellar Fe/Al2O3 Catalyst for high-yield production of multi–walled carbon nanotubes bundle, Mater. Res. Bull. 44 (2009) 422–425.

DOI: 10.1016/j.materresbull.2008.04.022

[12] M. Kadlecˇı´kova´, A. Vojacˇkova´, J. Breza, V. Lupta´kova, M. Michalka, K. Jesena´k, Bundles of carbon nanotubes grown on sapphire and quartz substrates by catalytic hot filament chemical vapor deposition, Mater. Lett. 61 (2007) 4549–4552.

DOI: 10.1016/j.matlet.2007.02.049

[13] M. Perez-Mendoza, C. Valles, W. K. Maser, M. T. Martinez, A. M. Benito. Influence of molybdenum on the chemical vapour deposition production of carbon nanotubes. Nanotechnology 16 (2005) S224.

DOI: 10.1088/0957-4484/16/5/016

[14] L. P. Zhou, K. Ohta, K. Kuroda, N. Lei, K. Matsuishi, L. Gao, T. Matsumoto, J. Nakamura. Catalytic functions of Mo/Ni/MgO in the synthesis of thin carbon nanotubes, J. Phys. Chem B. 109 (2005) 4439.

DOI: 10.1021/jp045284e
