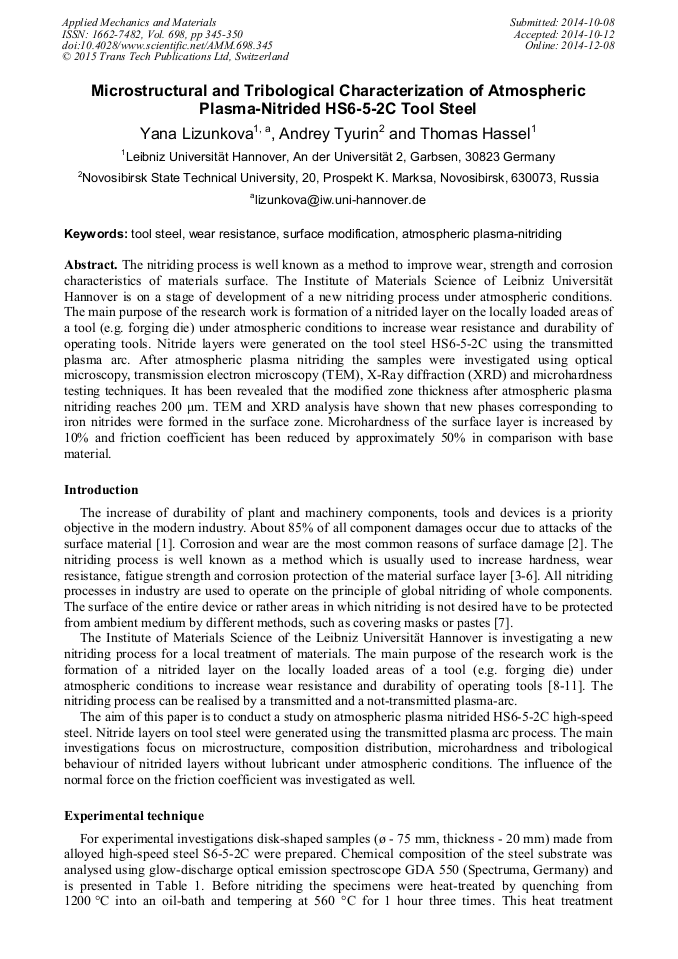

Microstructural and Tribological Characterization of Atmospheric Plasma-Nitrided HS6-5-2C Tool Steel

Abstract:

The nitriding process is well known as a method to improve wear, strength and corrosion characteristics of materials surface. The Institute of Materials Science of Leibniz Universität Hannover is on a stage of development of a new nitriding process under atmospheric conditions. The main purpose of the research work is formation of a nitrided layer on the locally loaded areas of a tool (e.g. forging die) under atmospheric conditions to increase wear resistance and durability of operating tools. Nitride layers were generated on the tool steel HS6-5-2C using the transmitted plasma arc. After atmospheric plasma nitriding the samples were investigated using optical microscopy, transmission electron microscopy (TEM), X-Ray diffraction (XRD) and microhardness testing techniques. It has been revealed that the modified zone thickness after atmospheric plasma nitriding reaches 200 μm. TEM and XRD analysis have shown that new phases corresponding to iron nitrides were formed in the surface zone. Microhardness of the surface layer is increased by 10% and friction coefficient has been reduced by approximately 50% in comparison with base material.

• Periodical: Applied Mechanics and Materials (Volume 698)
• Pages: 345-350
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.698.345
• Online since: December 2014
• Authors: Yana Lizunkova, Andrey Tyurin, Thomas Hassel
• Keywords: Atmospheric Plasma-Nitriding, Surface Modification, Tool Steel, Wear Resistance

References

[1] K. Bobzin, Oberflächentechnik für den Maschinenbau, first ed., Wiley-VCH, Weinheim, (2012).

[2] F. -W. Bach, T. Duda, Moderne Beschichtungsverfahren, Wiley-VCH, Weinheim, (2000).

[3] C. Weist, H. Westheide, K. Lange, Application of chemical and physical methods for the reduction of tool wear in bulk metal forming processes, CIRP Annals-Manufacturing Technology. 35 (1986) 199-204.

DOI: 10.1016/s0007-8506(07)61870-8

[4] T. auf dem Brinke, Plasmagestützte Oberflächenveredelung, Moderne Industrie, Landsberg/Lech, (2006).

[5] J. Yang, Y. Liu, Z. Ye, D. Yang, S. He, Microstructural and tribological characterization of plasma- and gas-nitrided 2Cr13 steel in vacuum, Mater. Des. 32 (2011) 808-814.

DOI: 10.1016/j.matdes.2010.07.022

[6] J. Michalski, P. Wach, J. Tacikowski, M. Betiuk, K. Burdynski, S. Kowalski, A. Nakonieczny, Contemporary industrial application of nitriding and its modifications, Mater. Manuf. Processes. 24 (2009) 855–858.

DOI: 10.1080/10426910902844203

[7] D. Liedtke, Wärmebehandlung von Eisenwerkstoffen, fifth ed., Expert-Verl., Renningen, (2010).

[8] D. Linse, Oberflächenbehandlung mit Lichtbogenplasmabrennern zur Standmengenerhöhung von Gesenkschmiedewerkzeugen, VDI-Verlag GmbH, Düsseldorf, (1993).

[9] T. Hassel, C. Birr, F.W. Bach, Surface zone modification by atmospheric plasma-nitriding (APN) with the aid of the transmitted plasma-arc, J. Key Eng. Mat. 438 (2010) 147–154.

DOI: 10.4028/www.scientific.net/kem.438.147

[10] M. Schaper, Y. Lizunkova, M. Vucetic, T. Cahyono, H. Hetzner, S. Opel, J. Schneider, T. Koch, B. Plugge, Sheet-bulk metal forming a new process for the production of sheet metal parts with functional components, Metallurgical and Mining Industry. 3 (2011).

DOI: 10.1007/s12289-010-0778-0

[11] Y. Lizunkova, S. Burov, T. Hassel, M.S. Bierbaum, F.W. Bach, Temperature control during the APN-process on the steel 1. 3343, J. Key Eng. Mat. 504-506 (2012) 1017–1022.

DOI: 10.4028/www.scientific.net/kem.504-506.1017

[12] H. Oettel, H. Schumann, Metallografie, 14 ed., Wiley-VCH, Weinheim, (2005).

[13] A. Smirnov, Y. Lizunkova, A. Nikulina, T. Hassel, F. -W. Bach, Structure of surface zone of the steel 1. 3343 after atmospheric plasma nitriding, XXIV Russia Conference on electron microscopy (RCEM-2012), Bogorodskiy petschatnik, Moskow, (2012).

[14] A.A. Chevakinskaya, Ya.S. Lizunkova, A.I. Smirnov, A.A. Nikulina, Formation of high-strength structure in a surface layer of HSS 1. 3343 after saturation by atmospheric plasma nitriding, book abstr., intern. conf. on surface engineering for research and industrial applications, Novosibirsk (2014).

[15] M. Goldstein, S. Grachev, Yu. Veksler, Special steels, Metallurgy, Moscow, (1985).
