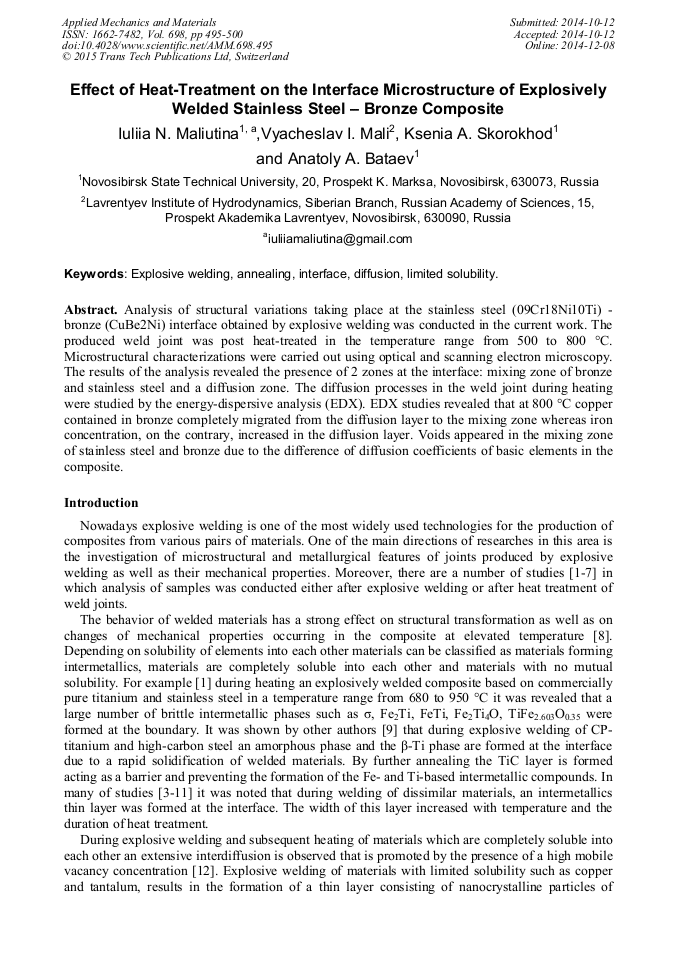

Effect of Heat-Treatment on the Interface Microstructure of Explosively Welded Stainless Steel – Bronze Composite

Abstract:

Analysis of structural variations taking place at the stainless steel (09Cr18Ni10Ti) - bronze (CuBe2Ni) interface obtained by explosive welding was conducted in the current work. The produced weld joint was post heat-treated in the temperature range from 500 to 800 °С. Microstructural characterizations were carried out using optical and scanning electron microscopy. The results of the analysis revealed the presence of 2 zones at the interface: mixing zone of bronze and stainless steel and a diffusion zone. The diffusion processes in the weld joint during heating were studied by the energy-dispersive analysis (EDX). EDX studies revealed that at 800 °С copper contained in bronze completely migrated from the diffusion layer to the mixing zone whereas iron concentration, on the contrary, increased in the diffusion layer. Voids appeared in the mixing zone of stainless steel and bronze due to the difference of diffusion coefficients of basic elements in the composite.

• Periodical: Applied Mechanics and Materials (Volume 698)
• Pages: 495-500
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.698.495
• Online since: December 2014
• Authors: Iuliia N. Maliutina*, Vyacheslav I. Mali, Ksenia A. Skorokhod, Anatoly A. Bataev
• Keywords: Annealing, Diffusion, Explosive Welding, Interface, Limited Solubility

References

[1] S.A.A. Akbari Mousavi, P. Farhadi Sartangi, Effect of post-weld heat treatment on the interface microstructure of explosively welded titanium–stainless steel composite, Mater. Sci. Eng., A. 494 (2008) 329–336.

DOI: 10.1016/j.msea.2008.04.032

[2] E.A. Prikhodko, I.A. Bataev, A.A. Bataev, V.S. Lozhkin, V.I. Mali, M.A. Esikov, The effect of heat treatment on the microstructure and mechanical properties of multilayered composites welded by explosion, Adv. Mater. Res. 535-537 (2012) 213-234.

DOI: 10.4028/www.scientific.net/amr.535-537.231

[3] I.A. Bataev, A.A. Bataev, D.V. Pavlyukova, P.S. Yartsev, E.D. Golovin, V.I. Mali, Nucleation and growth of titanium aluminide in an explosion-welded laminate composite, The Physics of Metals and Metallography. 10 (113) (2012) 947-956.

DOI: 10.1134/s0031918x12070022

[4] I.A. Bataev, A.A. Bataev, V.I. Mali, D.V. Pavliukova, Structural and mechanical properties of metallic–intermetallic laminate composites produced by explosive welding and annealing, Mater. Des. 35 (2012) 225–234.

DOI: 10.1016/j.matdes.2011.09.030

[5] M. Honarpisheh, M. Asemabadi, M. Sedighi, Investigation of annealing treatment on the interfacial properties of explosive-welded Al/Cu/Al multilayer, Mater. Des. 37 (2012) 122–127.

DOI: 10.1016/j.matdes.2011.12.045

[6] C. Xia, Z. Jin, On the evolution of microstructure and diffusion path in the titanium-steel explosion weld interface during heat treatment, J. Less Common Met. 162 (1990) 315-322.

DOI: 10.1016/0022-5088(90)90347-m

[7] E.A. Prikhodko, I.A. Bataev, V.I. Mali, A.A. Nikulina, A.I. Popeluch, V.S. Lozhkin, Structura i ustalostnaya treschinostoikost' mnogosloinih compozitov, polushennih po tehnologii svarki vzrivom raznorodnih materialov, Deformaciya i razrusheniye materialov (in Russian). 3 (2013).

[8] I.D. Zakharenko, Svarka vzrivom, Nauka i tehnika, (1990).

[9] A. Chiba, M. Nishida, Y. Morizono, K. Imamura, Bonding characteristics and diffusion barrier effect of the TiC phase formed at the bonding interface in an explosively welded titanium/high-carbon steel clad, J. Phase Equilib. 16 (1995) 411-415.

DOI: 10.1007/bf02645348

[10] N. Kahraman, B. Gulenc, F. Findik, Joining of titanium/stainless steel by explosive welding and effect on interface, J. Mater. Process. Technol. 169 (2005) 127-133.

DOI: 10.1016/j.jmatprotec.2005.06.045

[11] F. Findik, Recent developments in explosive welding, Mater. Des. 32 (2011) 1081–1093.

[12] L.F. Trueb, Microstructural effects of heat treatment on the bond interface of explosively welded metals, Metall. Trans. 2 (1971) 145-153.

DOI: 10.1007/bf02662650

[13] Iu.N. Maliutina, V.I. Mali, I.A. Bataev, A.A. Bataev, M.A. Esikov, A.I. Smirnov, K.A. Skorokhod, Structure and microhardness of Cu-Ta joints produced by explosive welding, The Scientific World Journal. 2013 (2013) 1-7.

DOI: 10.1155/2013/256758

[14] V.I. Mali, I.A. Balaganskii, E.B. Makarova, A.I. Smirnov, I.A. Bataev, T.V. Zhuravina, Structure and mechanical properties of layered composite materials, consisting of pure titanium, Obrabotka metallov (tekhnologiya, oborudovanie, instrumenty) (in Russian). 2 (2011).

[15] H. Sabetghadam, A. Zarei Hanzaki, A. Araee, A. Hadian, Microstructural evaluation of 410 SS/Cu diffusion-bonded joint, J. Mater. Sci. Technol. 26 (2010) 163-169.

DOI: 10.1016/s1005-0302(10)60027-8

[16] N.F. Kazakov, Diffuzionnaya svarka metallov, Metallurgiya, (1976).

[17] J.R. Davis, Copper and copper alloys, ASM Handbook, (2001).
