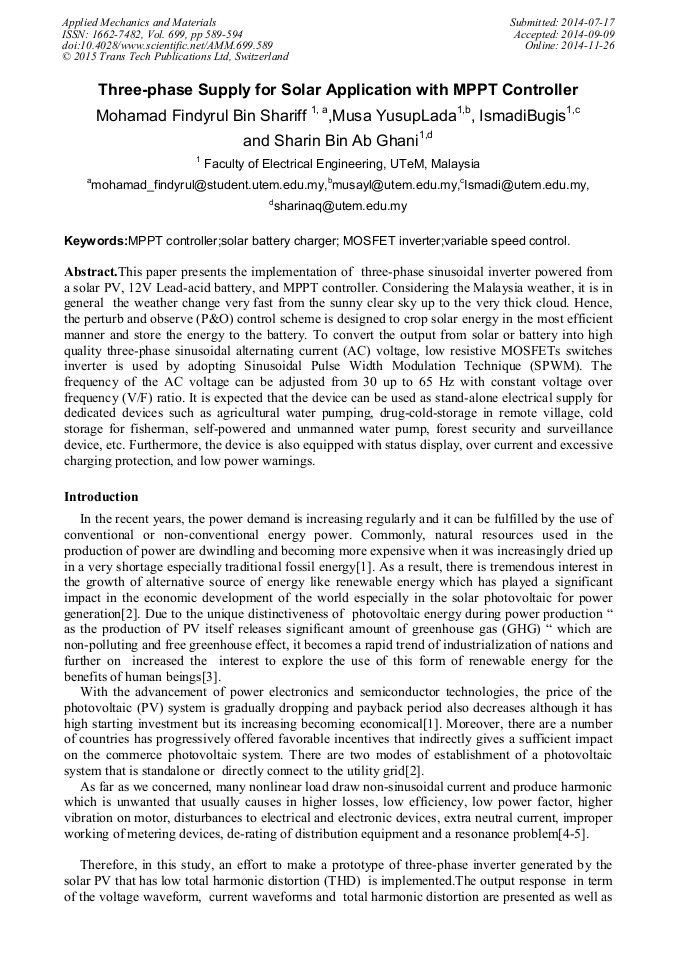

Three-Phase Supply for Solar Application with MPPT Controller

Abstract:

This paper presents the implementation of three-phase sinusoidal inverter powered from a solar PV, 12V Lead-acid battery, and MPPT controller. Considering the Malaysia weather, it is in general the weather change very fast from the sunny clear sky up to the very thick cloud. Hence, the perturb and observe (P&O) control scheme is designed to crop solar energy in the most efficient manner and store the energy to the battery. To convert the output from solar or battery into high quality three-phase sinusoidal alternating current (AC) voltage, low resistive MOSFETs switches inverter is used by adopting Sinusoidal Pulse Width Modulation Technique (SPWM). The frequency of the AC voltage can be adjusted from 30 up to 65 Hz with constant voltage over frequency (V/F) ratio. It is expected that the device can be used as stand-alone electrical supply for dedicated devices such as agricultural water pumping, drug-cold-storage in remote village, cold storage for fisherman, self-powered and unmanned water pump, forest security and surveillance device, etc. Furthermore, the device is also equipped with status display, over current and excessive charging protection, and low power warnings.

• Periodical: Applied Mechanics and Materials (Volume 699)
• Pages: 589-594
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.699.589
• Online since: November 2014
• Authors: Mohamad Findyrul bin Shariff, Musa Yusup Lada, Ismadi Bugis, Sharin bin Ab Ghani
• Keywords: MOSFET Inverter, MPPT Controller, Solar Battery Charger, Variable Speed Control

References

[1] S. Bal and B. Babu, Comparative study between P&O and current compensation method for MPPT of PV energy system, Engineering and Systems (SCES), Students Conference. (2012) 1–6.

DOI: 10.1109/sces.2012.6199023

[2] E. Natsheh and A. Albarbar, Photovoltaic model with MPP tracker for standalone/grid connected applications, Renewable Power Generation (RPG 2011), IET Conference. (2011) 1–6.

DOI: 10.1049/cp.2011.0205

[3] A. Durgadevi, S. Arulselvi, and S. P. Natarajan, Study and implementation of Maximum Power Point Tracking (MPPT) algorithm for Photovoltaic systems, 2011 1st International Conference on Electrical Energy Systems. (2011) 240–245.

DOI: 10.1109/icees.2011.5725336

[4] M. Lada, I. Bugis, and M. Talib, Simulation a shunt active power filter using MATLAB/Simulink, Power Engineering and Optimization Conf. (PEOCO2010) (2010) 23–24.

DOI: 10.1109/peoco.2010.5559218

[5] M. Y. Lada, O. Mohindo, A. Khamis, J. M. Lazi, and I. W. Jamaludin, Simulation single phase shunt active filter based on p-q technique using MATLAB/Simulink development tools environment, 2011 IEEE Applied Power Electronics Colloquium (IAPEC)(2011).

DOI: 10.1109/iapec.2011.5779860

[6] R. Faranda, S. Leva, and V. Maugeri, MPPT techniques for PV Systems: Energetic and cost comparison, 2008 IEEE Power and Energy Society General Meeting - Conversion and Delivery of Electrical Energy in the 21st Century. (2008) 1–6.

DOI: 10.1109/pes.2008.4596156

[7] A. Safari and S. Mekhilef, Incremental conductance MPPT method for PV systems, 2011 24th Canadian Conference on Electrical and Computer Engineering(CCECE). (2011) 345–347.

DOI: 10.1109/ccece.2011.6030470

[8] F. Z. Hamidon, P. D. A. Aziz, and N. H. M. Yunus, Photovoltaic array modelling with P&O MPPT algorithm in MATLAB, 2012 International Conference on Statistics in Science, Business and Engineering (ICSSBE). (2012) 1–5.

DOI: 10.1109/icssbe.2012.6396616

[9] B. Ismail, S. T. Mieee, A. R. M. Saad, M. Isa, and C. M. Hadzer, Development of a Single Phase SPWM Microcontroller-Based Inverter. 00 (2006) 437–440.

DOI: 10.1109/pecon.2006.346691

[10] D. Hart, Power Electronics, First Ed., McGraw-Hill Education, New York, (2010).

[11] M. H. Rashid, Power Electronics Handbook, First Ed., Academic Press, California, (2001).
