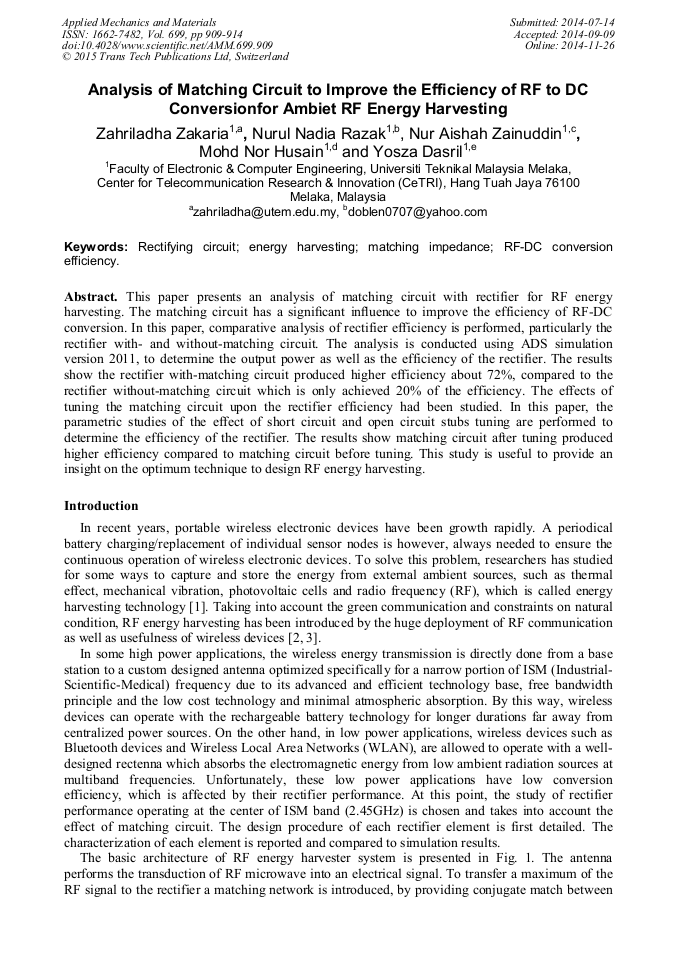

Analysis of Matching Circuit to Improve the Efficiency of RF to DC Conversion for Ambiet RF Energy Harvesting

Abstract:

This paper presents an analysis of matching circuit with rectifier for RF energy harvesting. The matching circuit has a significant influence to improve the efficiency of RF-DC conversion. In this paper, comparative analysis of rectifier efficiency is performed, particularly the rectifier with-and without-matching circuit. The analysis is conducted using ADS simulation version 2011, to determine the output power as well as the efficiency of the rectifier. The results show the rectifier with-matching circuit produced higher efficiency about 72%, compared to the rectifier without-matching circuit which is only achieved 20% of the efficiency. The effects of tuning the matching circuit upon the rectifier efficiency had been studied. In this paper, the parametric studies of the effect of short circuit and open circuit stubs tuning are performed to determine the efficiency of the rectifier. The results show matching circuit after tuning produced higher efficiency compared to matching circuit before tuning. This study is useful to provide an insight on the optimum technique to design RF energy harvesting.

• Periodical: Applied Mechanics and Materials (Volume 699)
• Pages: 909-914
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.699.909
• Online since: November 2014
• Authors: Zahriladha Zakaria*, Nurul Nadia Razak, Nur Aishah Zainuddin, Mohd Nor Husain, Yosza Dasril
• Keywords: Energy Harvesting, Matching Impedance, Rectifying Circuit, RF-DC Conversion Efficiency

References

[1] M. Ali, L. Albasha, N. Qaddoumi. RF energy harvesting for autonomous wireless sensor, 2013 8th International Conference on Design & Technology of Integrated Systems in Nanoscale Era (DTIS), Abu Dhabi, 2013, p.78 – 81.

DOI: 10.1109/dtis.2013.6527782

[2] M. Ariaudo, I. Fijalkow, J. Gautier, B. Aziz, B. Mileysky. Green radio despite dirty rf, front-end, EURASIP Journal on Wireless Communications and Networking (2012), 2012: 146.

DOI: 10.1186/1687-1499-2012-146

[3] Z. Zakaria, N.A. Zainuddin, M.N. Husain, M.Z.A. Abd Aziz, M.A. Mutalib, A.R. Othman, Current developments of rf energy harvesting system for wireless sensor networks, AISS: Advances in Information Sciences and Service Sciences, 5(11) 328-338, (2013).

DOI: 10.4156/aiss.vol5.issue11.39

[4] M. Roberg, E. Falkenstein, Z. Popovic, Z., High-Efficiency harmonically-terminated rectifier for wireless powering applications. 2012 IEEE MTT-S International Microwave Symposium Digest (MTT), Montreal, (2012) 1 – 3.

DOI: 10.1109/mwsym.2012.6259641

[5] Y. Zhou, B. Froppier, T. Razban. Schottky diode rectifier for power harvesting application. 2012 IEEE International Conference on RFID-Technologies and Applications (RFID-TA), Nice, (2012) 429 -432.

DOI: 10.1109/rfid-ta.2012.6404561

[6] M. Arrawatia, M.S. Baghini, G. Kumar. RF Energy harvesting system at 2. 67 and 5. 8Ghz. 2010 Asia-Pacific Microwave Conference Proceedings (APMC), Yokohama, (2010) 900-903.
