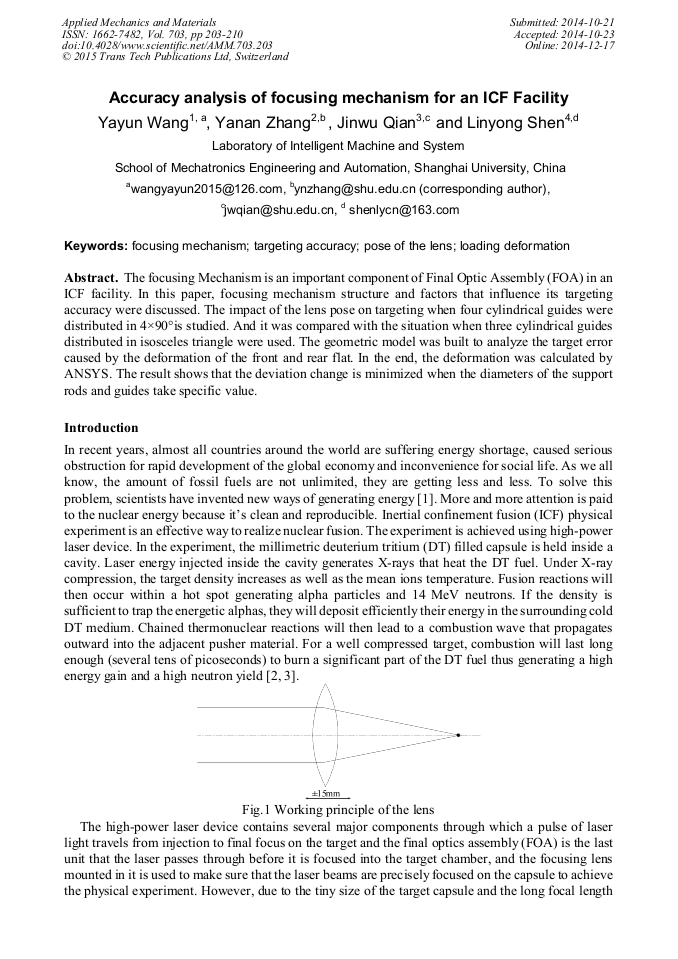

Accuracy Analysis of Focusing Mechanism for an ICF Facility

Abstract:

The focusing Mechanism is an important component of Final Optic Assembly (FOA) in an ICF facility. In this paper, focusing mechanism structure and factors that influence its targeting accuracy were discussed. The impact of the lens pose on targeting when four cylindrical guides were distributed in 4×90°is studied. And it was compared with the situation when three cylindrical guides distributed in isosceles triangle were used. The geometric model was built to analyze the target error caused by the deformation of the front and rear flat. In the end, the deformation was calculated by ANSYS. The result shows that the deviation change is minimized when the diameters of the support rods and guides take specific value.

• Periodical: Applied Mechanics and Materials (Volume 703)
• Pages: 203-210
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.703.203
• Online since: December 2014
• Authors: Ya Yun Wang, Yan An Zhang*, Jin Wu Qian, Lin Yong Shen
• Keywords: Focusing Mechanism, Loading Deformation, Pose of the Lens, Targeting Accuracy

References

[1] Jinchang Wang, Inertial confinement fusion, J. Science Chinese. 6(1995) 4-6.

[2] Peng H SH, Zhang X M and Fan D Y, Status of high - power solid - state lasers and engineering science, J. Engineering Science 3(2001), 1-7.

[3] Linford R, Bett I R and Dah Lburg J, A review of the U. S. department of energy's inertial fusion energy program, J. Journal of Fusion Energy. 22 (2003)93 - 126.

[4] Bing San, Jinglin Li, The design of the focusing mechanism for large-diameter reflecting optical system, J. Infrared and Laser Engineering. 42(2013)322-329.

[5] Mingwan Lu, Xiong Zhang and Dongyun Ge, in: Engineering Elasticity and Finite Element Method, edited by Tsinghua University Press, Beijing , (2005).

[6] Zhutang Wang, Rongzhang Tian and Jingcheng Gu, in: Aluminum and processing manual, edited by Central South University Press, Changsha, (1988).
