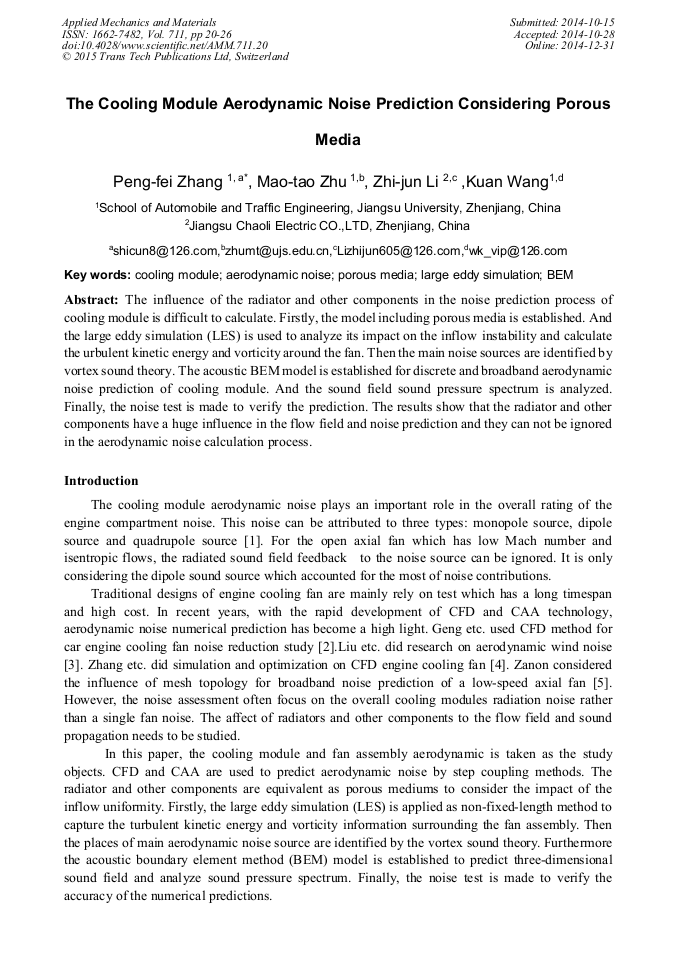

The Cooling Module Aerodynamic Noise Prediction Considering Porous Media

Abstract:

The influence of the radiator and other components in the noise prediction process of cooling module is difficult to calculate. Firstly, the model including porous media is established. And the large eddy simulation (LES) is used to analyze its impact on the inflow instability and calculate the urbulent kinetic energy and vorticity around the fan. Then the main noise sources are identified by vortex sound theory. The acoustic BEM model is established for discrete and broadband aerodynamic noise prediction of cooling module. And the sound field sound pressure spectrum is analyzed. Finally, the noise test is made to verify the prediction. The results show that the radiator and other components have a huge influence in the flow field and noise prediction and they can not be ignored in the aerodynamic noise calculation process.

• Periodical: Applied Mechanics and Materials (Volume 711)
• Pages: 20-26
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.711.20
• Online since: December 2014
• Authors: Peng Fei Zhang*, Mao Tao Zhu, Zhi Jun Li, Kuan Wang
• Keywords: Aerodynamic Noise, BEM, Cooling Module, Large Eddy Simulation, Porous Media

References

[1] Hu BB, OU YH, Wu YD, Du CH. A Acoustic Computational Model Considering the Thin-walled Scattering Effect. Chinese Journal of Computational Mechanics, 2013, 30(2)：212~217.

[2] Gen LZ, Yuan ZC, Li C B, Lan DD, Ma J Y, Li S C. A Study on CFD Simulation Analysis and Noise Reduction for the Cooling Fan of Car Engine. Automotive Engineering, 2009, 31(7)：664~668.

[3] Liu XM, Tang H, Wang X, Xi G, Gao DK. Noise-Reduction Mechanism of Bionic Coupling Blade Based on the Trailing Edge of Goshawk Wing. Journal of Xi'an Jiaotong University, 2012, 46(1)：35~41.

[4] Zhang D S, Li H, Cai S B. Simulation and Optimization Research on Engine Cooling Fan Based on CFD[J]. Journal of Hefei University of Technology, 2013, 36(9)：1029~1033.

[5] Zanon, A., De Gennaro, M., Kuehnelt, H., Caridi, D. et al. Numerical Investigation of Location and Coherence of Broadband Noise Sources for a Low Speed Axial HVAC Fan [C]. 8th International Styrian Noise, Vibration & Harshness Congress: The European Automotive Noise Conference, 2014, 01 (2054).

DOI: 10.4271/2014-01-2054

[6] Ou YH, Tian J, Wu YD, Du CH. Research of Aerodynamic Noise Source of Low Speed Axial Fans Based on Vortex-Sound Theory. Journal of Engineering Thermophysics, 2009, 30(5)：765~768.

[7] Si QR. Yuan SQ, Yuan JP, Yang J. Flow-induced Noise Calculation of Centrifugal Pumps Based on CFD/CA Method. Journal of Mechanical Engineering, 2013, 49（22）：177~184.

DOI: 10.3901/jme.2013.22.177

[8] JB/T 6723. 2—2008, Engine cooling fan Part 2: Plastic Cooling Fans Technical Conditions . Beijing: China Standard Press, (2008).
