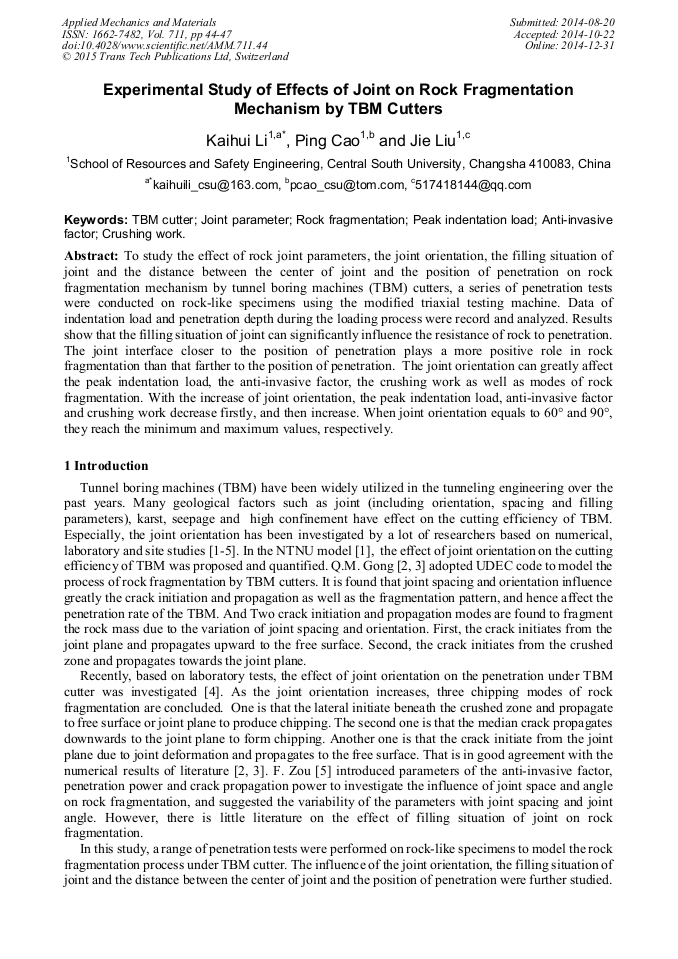

Experimental Study of Effects of Joint on Rock Fragmentation Mechanism by TBM Cutters

Abstract:

To study the effect of rock joint parameters, the joint orientation, the filling situation of joint and the distance between the center of joint and the position of penetration on rock fragmentation mechanism by tunnel boring machines (TBM) cutters, a series of penetration tests were conducted on rock-like specimens using the modified triaxial testing machine. Data of indentation load and penetration depth during the loading process were recorded and analyzed. Results show that the filling situation of joint can significantly influence the resistance of rock to penetration. The joint interface closer to the position of penetration plays a more positive role in rock fragmentation than that farther to the position of penetration. The joint orientation can greatly affect the peak indentation load, the anti-invasive factor, the crushing work as well as modes of rock fragmentation. With the increase of joint orientation, the peak indentation load, anti-invasive factor and crushing work decrease firstly, and then increase. When joint orientation equals to 60° and 90°, they reach the minimum and maximum values, respectively.

• Periodical: Applied Mechanics and Materials (Volume 711)
• Pages: 44-47
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.711.44
• Online since: December 2014
• Authors: Kai Hui Li*, Ping Cao, Jie Liu
• Keywords: Anti-Invasive Factor, Crushing Work, Joint Parameter, Peak Indentation Load, Rock Fragmentation, TBM Cutter

References

[1] BRULAND A. Hard rock tunnel boring [D]. Trondheim: Norwegian University of Science and Technology, (1998).

[2] Q.M. Gong, J. Zhao, Y.Y. Jiao. Numerical modeling of the effects of joint orientation on rock fragmentation by TBM cutters. Tunnelling and Underground Space Technology 2005; 20: 183–191.

DOI: 10.1016/j.tust.2004.08.006

[3] Q.M. Gong, Y.Y. Jiao, J. Zhao. Numerical modelling of the effects of joint spacing on rock fragmentation by TBM cutters. Tunnelling and Underground Space Technology 2006; 21: 46–55.

DOI: 10.1016/j.tust.2005.06.004

[4] F. ZOU, H. B. Li, Q. C. Zhou, et al. Experimental study of influence of joint space and joint angle on rock fragmentation by TBM disc cutter. Rock and Soil Mechanics 2012; 33 (6): 1640–1646 (in Chinese).

[5] H. S. Ma, H. G. Ji. Experimental study of the effect of joint orientation on fragmentation modes and penetration rate under TBM disc cutters. Chinese Journal of Rock Mechanics and Engineering 2011; 30 (1): 155–163 (in Chinese).

DOI: 10.4028/www.scientific.net/amm.353-356.890
