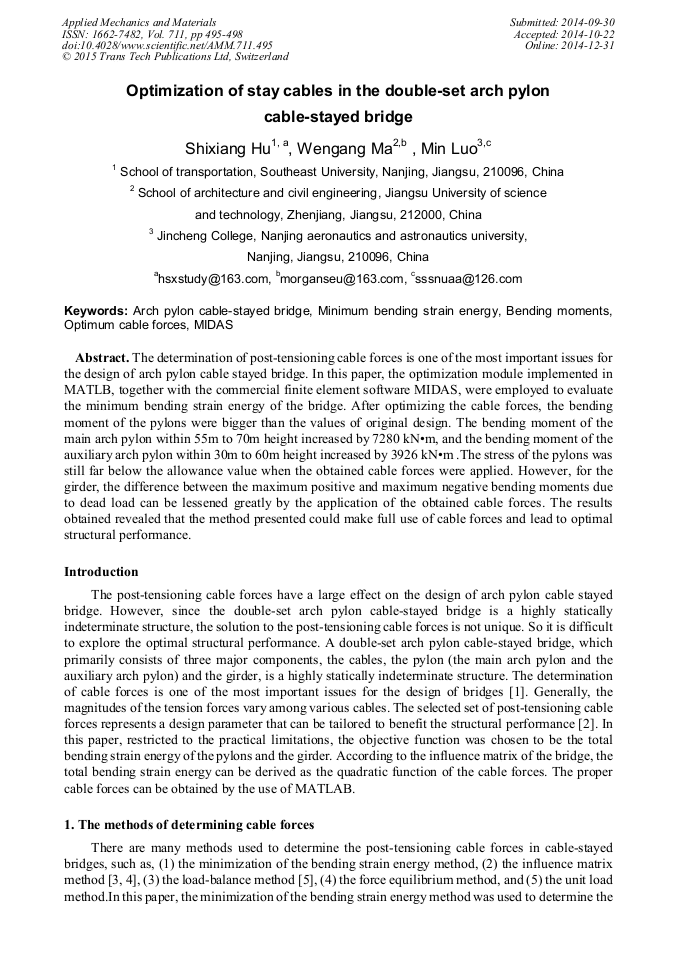

Optimization of Stay Cables in the Double-Set Arch Pylon Cable-Stayed Bridge

Abstract:

The determination of post-tensioning cable forces is one of the most important issues for the design of arch pylon cable stayed bridge. In this paper, the optimization module implemented in MATLB, together with the commercial finite element software MIDAS, were employed to evaluate the minimum bending strain energy of the bridge. After optimizing the cable forces, the bending moment of the pylons were bigger than the values of original design. The bending moment of the main arch pylon within 55m to 70m height increased by 7280 kN•m, and the bending moment of the auxiliary arch pylon within 30m to 60m height increased by 3926 kN•m .The stress of the pylons was still far below the allowance value when the obtained cable forces were applied. However, for the girder, the difference between the maximum positive and maximum negative bending moments due to dead load can be lessened greatly by the application of the obtained cable forces. The results obtained revealed that the method presented could make full use of cable forces and lead to optimal structural performance.

• Periodical: Applied Mechanics and Materials (Volume 711)
• Pages: 495-498
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.711.495
• Online since: December 2014
• Authors: Shi Xiang Hu, Wen Gang Ma*, Min Luo
• Keywords: Arch Pylon Cable-Stayed Bridge, Bending Moments, MIDAS, Minimum Bending Strain Energy, Optimum Cable Forces

References

[1] M.M. Hassan, Optimization of stay cables in cable-stayed bridges using finite element, genetic algorithm, and B-spline combined technique, J. ENG STRUCT. 49(2013) 643-654.

DOI: 10.1016/j.engstruct.2012.11.036

[2] M.M. Hassan, A.O. Nassef and A.A. El Damatty, Determination of optimum post-tensioning cable forces of cable-stayed bridges, J. ENG STRUCT. 44(2012) 248-259.

DOI: 10.1016/j.engstruct.2012.06.009

[3] Liang Peng, Xiao Rucheng and Zhang Xuesong, Practical Method of Optimization of Cable Tensions for Cable-stayed Bridges, J. Journal of Tongji University. 31(2003) 1270-1274.

[4] Xiao Rucheng, Xiang Haifan, Optimization method of cable prestresses of cable-stayed bridges and its engineering applications, J. Chinese Journal of Computational Mechanics. 15(1998) 118-126.

[5] Y.C. Sung, D.W. Chang and E.H. Teo, Optimum post-tensioning cable forces of Mau-Lo Hsi cable-stayed bridge, J. ENG STRUCT. 28(2006) 1407-1417.

DOI: 10.1016/j.engstruct.2006.01.009

[6] D. Janjic, M. Pircher and H. Pircher, Optimization of cable tensioning in cable-stayed bridges,J. J BRIDGE ENG. 8(2002) 131-137.

DOI: 10.1061/(asce)1084-0702(2003)8:3(131)
