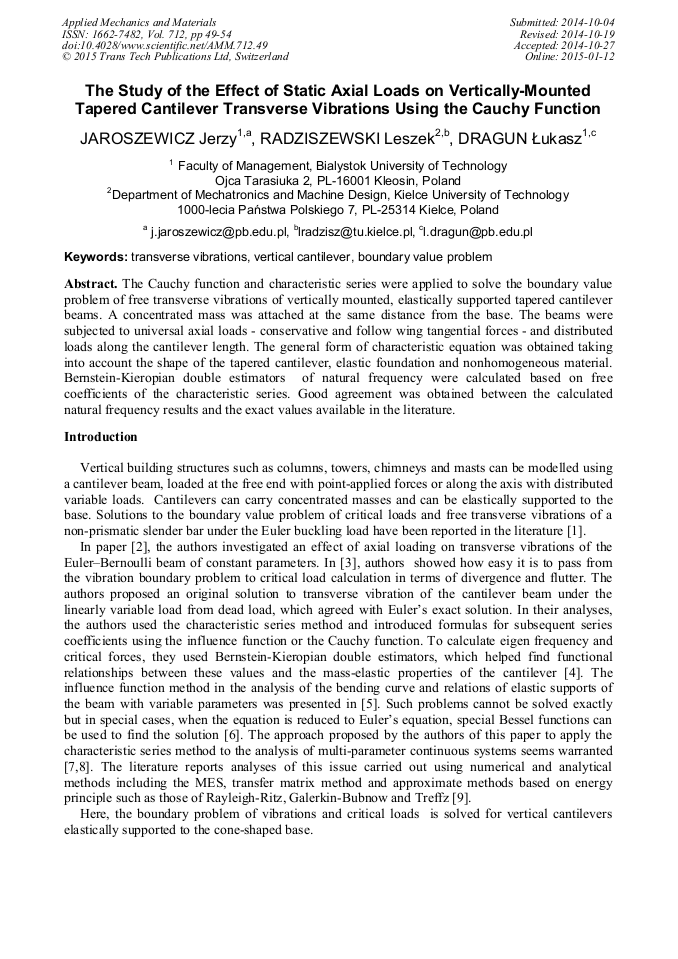

The Study of the Effect of Static Axial Loads on Vertically-Mounted Tapered Cantilever Transverse Vibrations Using the Cauchy Function

Abstract:

The Cauchy function and characteristic series were applied to solve the boundary value problem of free transverse vibrations of vertically mounted, elastically supported tapered cantilever beams. A concentrated mass was attached at the same distance from the base. The beams were subjected to universal axial loads - conservative and follow wing tangential forces - and distributed loads along the cantilever length. The general form of characteristic equation was obtained taking into account the shape of the tapered cantilever, elastic foundation and nonhomogeneous material. Bernstein-Kieropian double estimators of natural frequency were calculated based on free coefficients of the characteristic series. Good agreement was obtained between the calculated natural frequency results and the exact values available in the literature.

• Periodical: Applied Mechanics and Materials (Volume 712)
• Pages: 49-54
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.712.49
• Online since: January 2015
• Authors: Jerzy Jaroszewicz, Leszek Radziszewski, Łukasz Dragun*
• Keywords: Boundary Value Problem, Transverse Vibrations, Vertical Cantilever

References

[1] J. Szmidla, M. Kluba, Stateczność i drgania swobodne niepryzmatycznego układu smukłego poddanego obciążeniu eulerowskiemu, Modelowanie Inżynierskie 41 (2011) 385-394.

[2] S. Kukla, B. Skalmierski, The effect of Axial Load on Transverse Vibrations of an Euler –Bernoulli Beam J. Theor. and Appl. Mech. 31 (1993).

[3] J. Jaroszewicz, L. Zoryj, Investigation of axial loads on transverse vibrations of vertical cantilevers of variable parameters, JAM Kiev 36, 9 (2000) 1242-1251.

[4] J. Jaroszewicz, L. Zoryj, Critical Euler load for a cantilever tapered beam 34 (1996) 843-851.

[5] J. Jaroszewicz, K.K. Żur, Ł. Dragun, The influence function method in analysis of bending curve and relations of elastic supports of beam with variable parameters, Journal of theoretical and Applied Mechanics, 52, 1 (2014) 247-255.

[6] L.M. Zoryj, Universal characteristic equations in problems on the vibrations and stability of elastic systems, Tverd. Tela, 6 (1982) 155-162.

[7] J. Jaroszewicz, L. Zoryj, Free transversal vibrations of a cantilever beam with variable cross section, Eng. Trans. 33, 4 (1985) 537–547.

[8] J. Jaroszewicz, L. Zoryj, Transversal vibrations and stability of beams with variable parameters, Int. Ap pl. Mech . Eng. Tr. 30, 9 (1994) 713–720.

DOI: 10.1007/bf00847086

[9] R. Solecki, J. Szymkiewicz, Układy prętowe i powierzchniowe, obliczenia dynamiczne, Arkady, Warszawa (1964).

[10] J. Jaroszewicz, The effect of non-homogenous material properties on transverse vibration of elastic cantilever, JAM Kiev 35, 6 , (1999) 103-110.
