The Method Creating UML Model about Heat Pipe Network Data

Abstract:

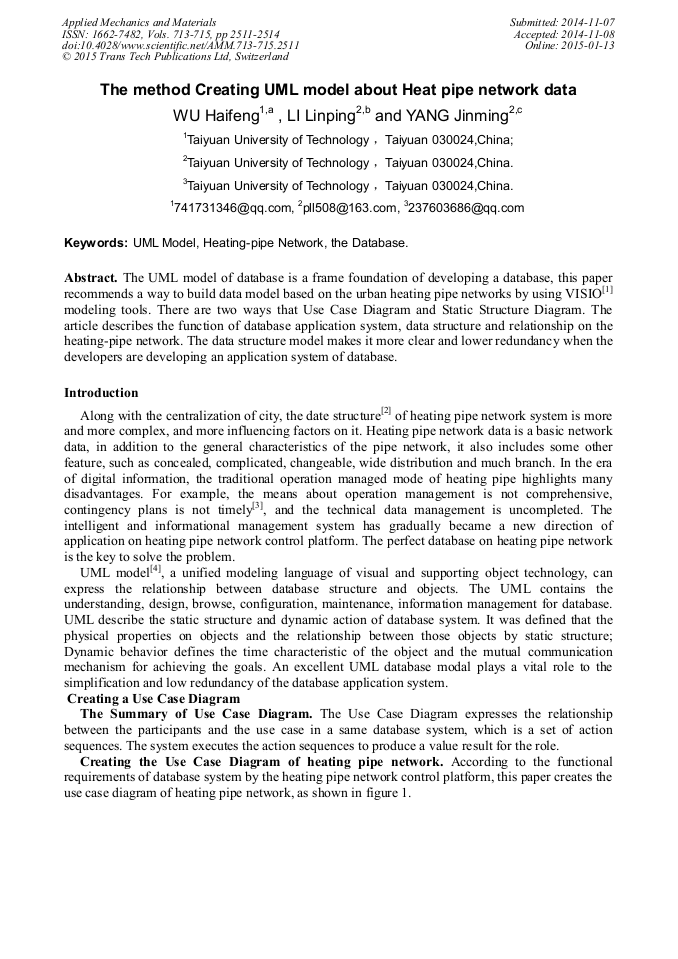

The UML model of database is a frame foundation of developing a database, this paper recommends a way to build data model based on the urban heating pipe networks by using VISIO^[1] modeling tools. There are two ways that Use Case Diagram and Static Structure Diagram. The article describes the function of database application system, data structure and relationship on the heating-pipe network. The data structure model makes it more clear and lower redundancy when the developers are developing an application system of database.
