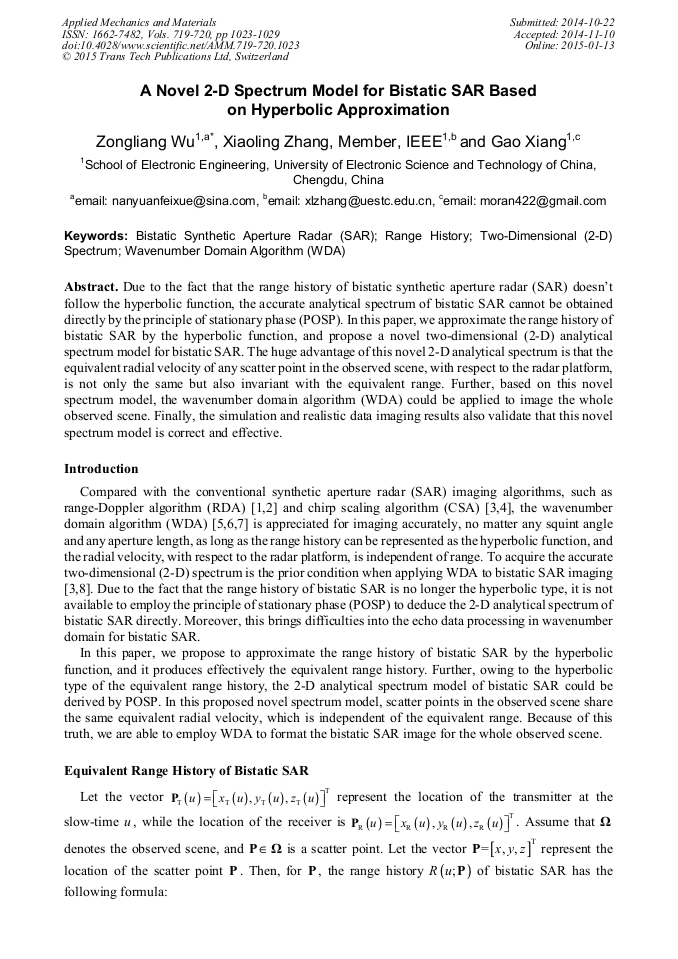

A Novel 2-D Spectrum Model for Bistatic SAR Based on Hyperbolic Approximation

Abstract:

Due to the fact that the range history of bistatic synthetic aperture radar (SAR) doesn’t follow the hyperbolic function, the accurate analytical spectrum of bistatic SAR cannot be obtained directly by the principle of stationary phase (POSP). In this paper, we approximate the range history of bistatic SAR by the hyperbolic function, and propose a novel two-dimensional (2-D) analytical spectrum model for bistatic SAR. The huge advantage of this novel 2-D analytical spectrum is that the equivalent radial velocity of any scatter point in the observed scene, with respect to the radar platform, is not only the same but also invariant with the equivalent range. Further, based on this novel spectrum model, the wavenumber domain algorithm (WDA) could be applied to image the whole observed scene. Finally, the simulation and realistic data imaging results also validate that this novel spectrum model is correct and effective.

• Periodical: Applied Mechanics and Materials (Volumes 719-720)
• Pages: 1023-1029
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.719-720.1023
• Online since: January 2015
• Authors: Zong Liang Wu*, Xiao Ling Zhang, Gao Xiang
• Keywords: Bistatic Synthetic Aperture Radar (SAR), Range History, Two-Dimensional (2-D) Spectrum, Wavenumber Domain Algorithm (WDA)

References

[1] J. Q. Huang, Q. Wang, W. Q. Wu, Motion compensation in SAS with multiple receivers based on Range-Doppler imaging algorithm, International Conference on Electric Information and Control Engineering (ICEICE), 2011, pp.1476-1479.

DOI: 10.1109/iceice.2011.5777313

[2] X. Ning, C. M. Yeh, B. Zhou, W. Gao, and J. Yang, Multiple-GPU accelerated range-Doppler algorithm for synthetic aperture radar imaging, IEEE Radar Conference (RADAR), 2011, pp.698-701.

DOI: 10.1109/radar.2011.5960627

[3] D. Li, G. S. Liao, W. Wang, and Q. Xu, Extended azimuth nonlinear chirp scaling algorithm for bistatic SAR processing in high-resolution highly squinted mode, IEEE Geoscience and Remote Sensing Letters. 11 (6) 1134-1138.

DOI: 10.1109/lgrs.2013.2288292

[4] S. C. Chen, M. D. Xing, T. L. Yang, and Z. Bao, A nonlinear chirp scaling algorithm for tandem bistatic SAR, IEEE International Geoscience and Remote Sensing Symposium (IGARSS), 2013, pp.2485-2488.

DOI: 10.1109/igarss.2013.6723325

[5] A. Ribalta, Omega-K algorithm without the stop-and-go approximation for high resolution SAR image reconstruction, IEEE International Geoscience and Remote Sensing Symposium (IGARSS), 2012, pp.3939-3942.

DOI: 10.1109/igarss.2012.6350550

[6] H. S. Shin, J. T. Lim, Omega-K algorithm for spaceborne spotlight SAR imaging, IEEE Geoscience and Remote Sensing Letters. 9 (3) 343-347.

DOI: 10.1109/lgrs.2011.2168380

[7] E. Cristofani, M. Vandewal, C. Matheis, and J. Jonuscheit, In-depth high-resolution SAR imaging using Omega-K applied to FMCW systems, IEEE Radar Conference (RADAR), 2012, pp.725-730.

DOI: 10.1109/radar.2012.6212233

[8] Y. F. Shao, R. Wang, Y. K. Deng, Y. Liu, R. P. Chen, G. Liu, T. Balz, and O. Loffeld, Error analysis of bistatic SAR imaging and stereoscopy bistatic SAR, IEEE Trans. on Geoscience and Remote Sensing. 51 (8) 4518-4543.

DOI: 10.1109/tgrs.2013.2245902

[9] Y. Wu, S. Verdu, MMSE dimension, IEEE Trans. on Information Theory. 57 (8) 4857-4879.

DOI: 10.1109/tit.2011.2158905

[10] R. Bustin, M. Payaro, D. P. Palomar, and S. Shamai, On MMSE crossing properties and implications in parallel vector Gaussian channels, IEEE Trans. on Information Theory. 59 (2) 818-844.

DOI: 10.1109/tit.2012.2225405

[11] I. G. Cumming, F. H. Wong, Digital signal processing of synthetic aperture radar data: algorithms and implementation, Boston: Artech House, (2004).
