Analysis of Structure Dynamic Characteristics of ATV Frame with Engine

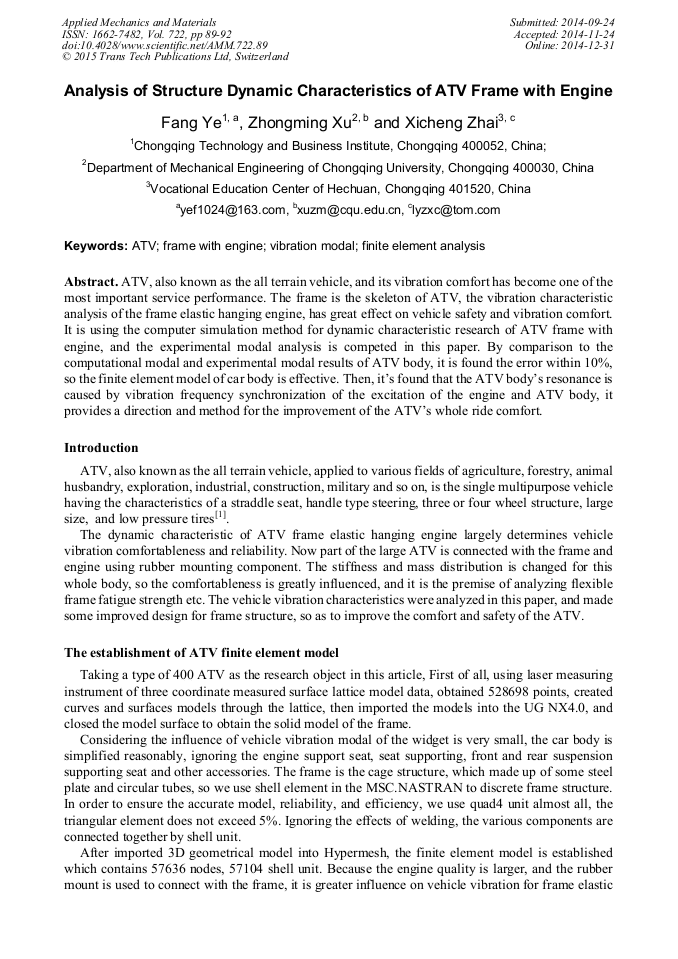

Article Preview

Abstract:

ATV, also known as the all terrain vehicle, and its vibration comfort has become one of the most important service performance. The frame is the skeleton of ATV, the vibration characteristic analysis of the frame elastic hanging engine, has great effect on vehicle safety and vibration comfort. It is using the computer simulation method for dynamic characteristic research of ATV frame with engine, and the experimental modal analysis is competed in this paper. By comparison to the computational modal and experimental modal results of ATV body, it is found the error within 10%, so the finite element model of car body is effective. Then, it’s found that the ATV body’s resonance is caused by vibration frequency synchronization of the excitation of the engine and ATV body, it provides a direction and method for the improvement of the ATV’s whole ride comfort.

You might also be interested in these eBooks
Mechanical Engineering, Manufacturing and Automation Technologies View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 722)

Pages:

89-92

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.722.89

Citation:

Cite this paper

Online since:

December 2014

Authors:

Fang Ye*, Zhong Ming Xu, Xi Cheng Zhai

Keywords:

ATV, Finite Element Analysis (FEA), Frame with Engine, Vibration Modal

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2015 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] LMS. Theroy and background. LMS International[M]. (2002).

Google Scholar

[2] G.S. Paddan and M.J. Griffin. Evaluation of whole-body vibration in vehicles. Journal of Sound and Vibration (2002) 253(1). 195-213.

DOI: 10.1006/jsvi.2001.4256

Google Scholar

[3] P. Moroney, M. Doyle, K. Mealy. All-terrain vehicles—unstable, unsafe and unregulated A prospective study of ATV-related trauma in rural Ireland [J]. Injury, Int. J. Care Injured, 2003, 34: 203~205.

DOI: 10.1016/s0020-1383(02)00317-0

Google Scholar

[4] L. Dai, J. Wu. Stability and vibrations of an all-terrain vehicle subjected to nonlinear structural deformation and resistance [J]. Communications in Nonlinear Science and Numerical Simulation, 2007, 12: 72~82.

DOI: 10.1016/j.cnsns.2006.01.006

Google Scholar

[5] B. REHN, I. A. BERGDAHL, C. AHLGREN et al. Musculoskeletal symptoms among drivers of all-terrain vehicles [J]. Journal of Sound and vibration, 2002, 253(1): 21~29.

DOI: 10.1006/jsvi.2001.4247

Google Scholar
