Experimental Study on Vertical Stiffness of WJ-8 Fastener for High-Speed Railway

Abstract:

The rail vertical displacement of CRTSII slab track structure under vertical static loads was analyzed in this paper by using 1:1 full-scale track model, based on which the WJ-8 fastener vertical static stiffness was calculated, and the rationality of the fastener vertical stiffness values and the relationship between the values and load were studied. According to the beam-plate theory and beam-solid theory for slab ballastless track, a finite element analysis model of CRTSII slab track structure was established. The rail vertical displacement under the same case as test was calculated by using the measured fastener vertical stiffness value. The rationality of the method for testing and the fastener vertical static stiffness is verified through comparing the calculated values with experimental ones.

You might also be interested in these eBooks

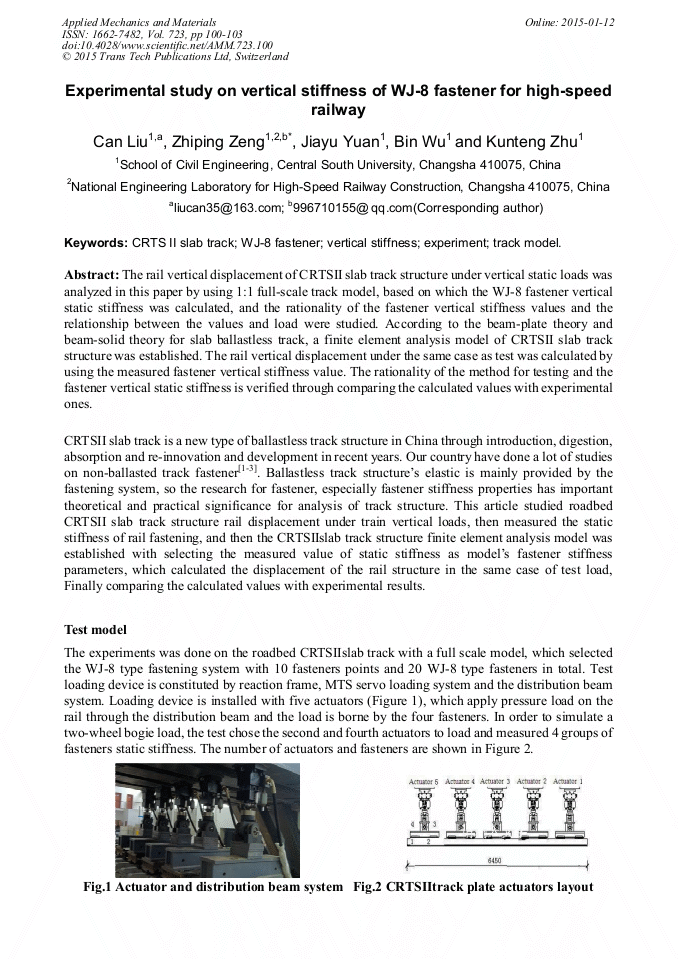

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 723)

Pages:

100-103

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.723.100

Citation:

Cite this paper

Online since:

January 2015

Authors:

Can Liu, Zhi Ping Zeng*, Jia Yu Yuan, Bin Wu, Kun Teng Zhu

Keywords:

CRTS II Slab Track, Experiment, Track Model, Vertical Stiffness, WJ-8 Fastener

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Can Liu, Zhiping Zeng, Bin Wu, Jiayu Yuan, Xianfeng He. Experimental study on the transverse stiffness of WJ-8 rail fastening[J]. Applied Mechanics and Materials, 2014, 596: 3-6.

DOI: 10.4028/www.scientific.net/amm.596.3

Google Scholar

[2] Zhiping Zeng, Jiayu Yuan, Xianfeng He, Can Liu, Kunteng, Zhu. WJ-8 rail fastener of ballastless track torque test research[J]. Applied Mechanics and Materials, 2014, 587-589: 1320-1323.

DOI: 10.4028/www.scientific.net/amm.587-589.1320

Google Scholar

[3] Zhiping Zeng, Zhiwu Yu, Yangang Zhao, Wentao Xu, Lingkun Chen, and Ping Lou. Numerical simulation of vertical random vibration of train-slab track-bridge interaction system by PEM[J]. Shock and Vibration, vol. 2014, Article ID 304219, 21 pages, 2014. doi: 10. 1155/2014/304219.

DOI: 10.1155/2014/304219

Google Scholar

[4] Ministry of Railways of the People's Republic of China. Provisional technical conditions of WJ-8 fastener [M]. Beijing: China Railway Press, 2009. (In Chinese).

Google Scholar

[5] Guoqing Cui. Reasonable stiffness values of double block ballastless track [J]. Railway Construction, 2009, (9): 93-96. (In Chinese).

Google Scholar

[6] Bofang Zhu. Application of the finite element method [M]. Beijing: China Water Power Press, 2004. (In Chinese).

Google Scholar
