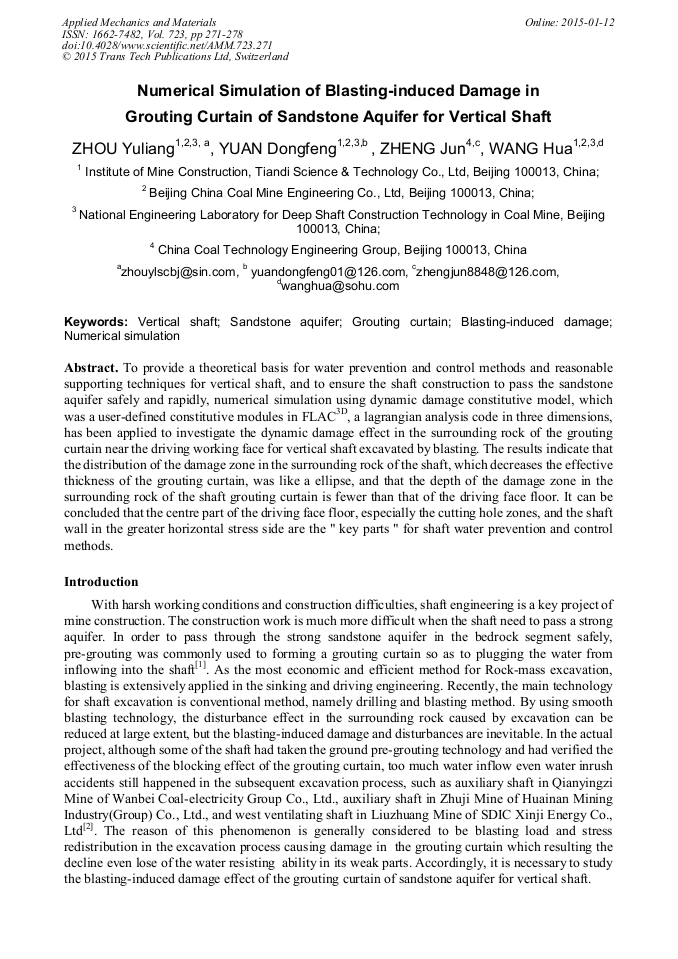

Numerical Simulation of Blasting-Induced Damage in Grouting Curtain of Sandstone Aquifer for Vertical Shaft

Abstract:

To provide a theoretical basis for water prevention and control methods and reasonable supporting techniques for vertical shaft, and to ensure the shaft construction to pass the sandstone aquifer safely and rapidly, numerical simulation using dynamic damage constitutive model, which was a user-defined constitutive modules in FLAC^3D, a lagrangian analysis code in three dimensions, has been applied to investigate the dynamic damage effect in the surrounding rock of the grouting curtain near the driving working face for vertical shaft excavated by blasting. The results indicate that the distribution of the damage zone in the surrounding rock of the shaft, which decreases the effective thickness of the grouting curtain, was like a ellip-se, and that the depth of the damage zone in the surrounding rock of the shaft grouting curtain is fewer than that of the driving face floor. It can be concluded that the centre part of the driving face floor, especially the cutting hole zones, and the shaft wall in the greater horizontal stress side are the " key parts " for shaft water prevention and control methods.

• Periodical: Applied Mechanics and Materials (Volume 723)
• Pages: 271-278
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.723.271
• Online since: January 2015
• Authors: Yu Liang Zhou*, Dong Feng Yuan, Jun Zheng, Hua Wang
• Keywords: Blasting-Induced Damage, Grouting Curtain, Numerical Simulation, Sandstone Aquifer, Vertical Shaft

References

[1] Daw G P, Pollard C A. Grouting for ground water control in underground mining[J]. Mine Water and the Environment, 1986, 5(4): 1-40.

DOI: 10.1007/bf02498134

[2] Dongfeng YUAN. Research on plastic and early-strength cement composite grout[M. S Thesis][D]. Beijing: China Coal Research Institute, 2009. (in Chinese).

[3] Yang R., W. F. Bawden, P. D. Katsabanis. A new constitutive model for blast damage[J]. International journal of rock mechanics and mining sciences & geomechanics abstracts, 1996, 33(3) : 245-254.

DOI: 10.1016/0148-9062(95)00064-x

[4] Hamdi, Essaieb, N. Bouden Romdhane, et al. A tensile damage model for rocks: Application to blast induced damage assessment[J]. Computers and Geotechnics, 2011, 38(2) : 133-141.

DOI: 10.1016/j.compgeo.2010.10.009

[5] Taylor, Lee M., Er-Ping Chen, et al. Microcrack-induced damage accumulation in brittle rock under dynamic loading[J]. Computer methods in applied mechanics and engineering, 1986, 55(3 ): 301-320.

DOI: 10.1016/0045-7825(86)90057-5

[6] Liu Liqing, P. D. Katsabanis. Development of a continuum damage model for blasting analysis[J]. International Journal of Rock Mechanics and Mining Sciences, 1997, 34(2) : 217-231.

DOI: 10.1016/s0148-9062(96)00041-1

[7] Grady D. E., M. E. Kipp. Continuum modeling of explosive fracture in oil shale[J] International Journal of Rock Mechanics and Mining Sciences & Geomechanics Abstracts, 1980, 17(3): 147-157.

DOI: 10.1016/0148-9062(80)91361-3

[8] Kuszmaul, Joel S. A new constitutive model for fragmentation of rock under dynamic loading[R]. Sandia National Labs, Albuquerque, NM (USA), (1987).

[9] Thorne B. J, P. J. Hommert, B. Brown. Experimental and computational investigation of the fundamental mechanisms of cratering[R]. Sandia National Labs, Albuquerque, NM (USA), (1990).

[10] Hao HONG, Chengqing WU, Yinxing ZHOU. Numerical analysis of blast-induced stress waves in a rock mass with anisotropic continuum damage models part 1: equivalent material property approach[J]. Rock Mechanics and Rock Engineering, 2002, 35(2): 79-94.

DOI: 10.1007/s006030200012

[11] Haibo LI, Xiang XIA, Jianchun LI, et al. Rock damage control in bedrock blasting excavation for a nuclear power plant[J]. International Journal of Rock Mechanics and Mining Sciences 48. 2 (2011): 210-218.

DOI: 10.1016/j.ijrmms.2010.11.016

[12] Yingguo HU, Wenbo LU, Xuhao JIN, et al. Numerical simulation for excavation blasting dynamic damage of rock high slope[J]. Chinese Journal of Rock Mechanics and Engineering, 2012, 31(11): 2204-2213. (in Chinese).

[13] Itasca Consulting Group Inc. Fast Lagrangian analysis of continua in 3 dimensions(Version 3. 0) user's guide[R]. Minneapolis, USA: Itasca Consulting Group Inc., (2005).

[14] Yumin CHEN, Dingping XU. Theoretical basis and engineering cases of FLAC/FLAC3D. Beijing: China Water Power Press, 2009. 254-259. (in Chinese).

[15] Jun DAI. Blasting Engineering[M]. Beijing: China Machine Press, 2005. (in Chinese).
