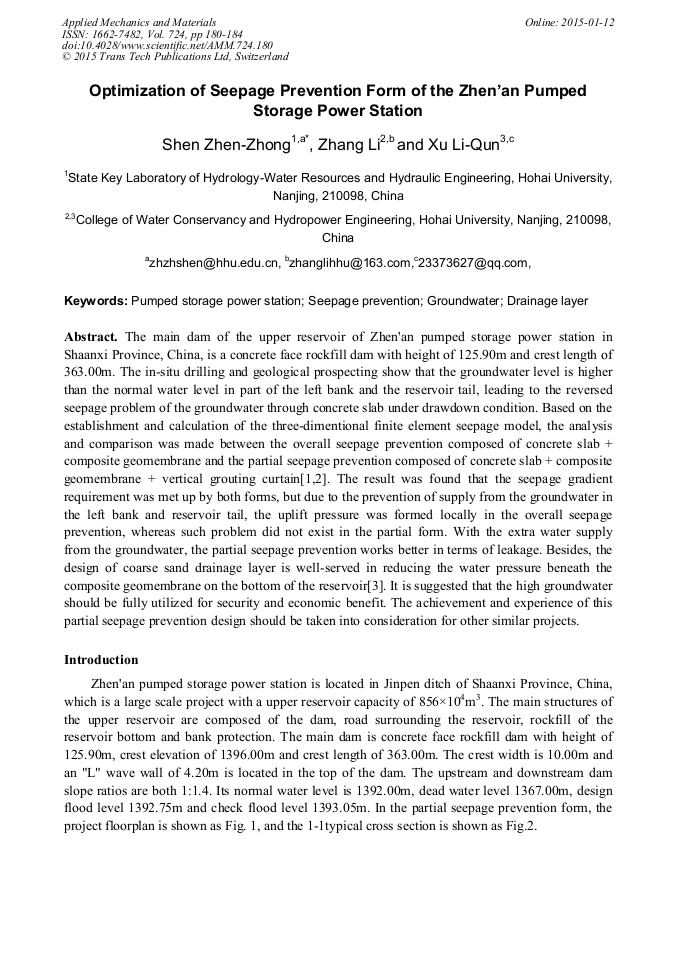

Optimization of Seepage Prevention Form of the Zhen’an Pumped Storage Power Station

Abstract:

The main dam of the upper reservoir of Zhen'an pumped storage power station in Shaanxi Province, China, is a concrete face rockfill dam with height of 125.90m and crest length of 363.00m. The in-situ drilling and geological prospecting show that the groundwater level is higher than the normal water level in part of the left bank and the reservoir tail, leading to the reversed seepage problem of the groundwater through concrete slab under drawdown condition. Based on the establishment and calculation of the three-dimentional finite element seepage model, the analysis and comparison was made between the overall seepage prevention composed of concrete slab + composite geomembrane and the partial seepage prevention composed of concrete slab + composite geomembrane + vertical grouting curtain [1,2]. The result was found that the seepage gradient requirement was met up by both forms, but due to the prevention of supply from the groundwater in the left bank and reservoir tail, the uplift pressure was formed locally in the overall seepage prevention, whereas such problem did not exist in the partial form. With the extra water supply from the groundwater, the partial seepage prevention works better in terms of leakage. Besides, the design of coarse sand drainage layer is well-served in reducing the water pressure beneath the composite geomembrane on the bottom of the reservoir [3]. It is suggested that the high groundwater should be fully utilized for security and economic benefit. The achievement and experience of this partial seepage prevention design should be taken into consideration for other similar projects.

• Periodical: Applied Mechanics and Materials (Volume 724)
• Pages: 180-184
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.724.180
• Online since: January 2015
• Authors: Zhen Zhong Shen, Li Zhang, Li Qun Xu
• Keywords: Drainage Layer, Groundwater, Pumped Storage Power Station, Seepage Prevention

References

[1] Mao, X. Y. and Pan, S. H.: Back analysis of initial seepage field of complex dam foundation at Shuangjiangkou Hydropower Station. Rock and Soil Mechanics. (2008).

[2] Shen, Z. Z. and Mao, C. M.: Calculation and automated mapping for flow net of steady seepage field. Journal of Hohai University (Natural Science). Vol: 22(5) (1994), pp.75-77.

[3] Shen, Z. Z., Zhang, X., Lu, X. and Wei, J. Z.: Seepage Control Optimization of Left Bank of Laohuzui Hydropower Station. Journal of Hydraulic Engineering. Vol: 37(10) (2006), pp.1230-1234.

[4] Xie, X. D., Li, H. X.: Simulation of the Seepage Field in the Danjiangkou Reservoir Area. Applied Mechanics and Materials. Advances in Civil Engineering(2011).

[5] Wang D., Shen, Z. Z. and Tao, X. H.: Three-dimensional Finite Element Analysis and Assessment for Seepage Field of a Tailing Dam. Journal of Hohai University (Natural Science). Vol: 40(30) (2012), pp.307-312.

[6] Lin, W. B. and Shen, Z. Z.: Finite Element Analysis of Uplift Pressure and Its Control of Plunge Pools after A high Arch Dam. The 1st International Conference on Long Time Effects and Seepage Behavior of Dams, Nanjing, China(2008).

[7] Shen, Z. Z., Tao, X. H. and Wu, Y. J.: Penalty Function Element-free Method for Solving Seepage Field of Embankments. Journal of Hohai University (Natural Science). Vol: 36(1) (2008), pp.48-52.
