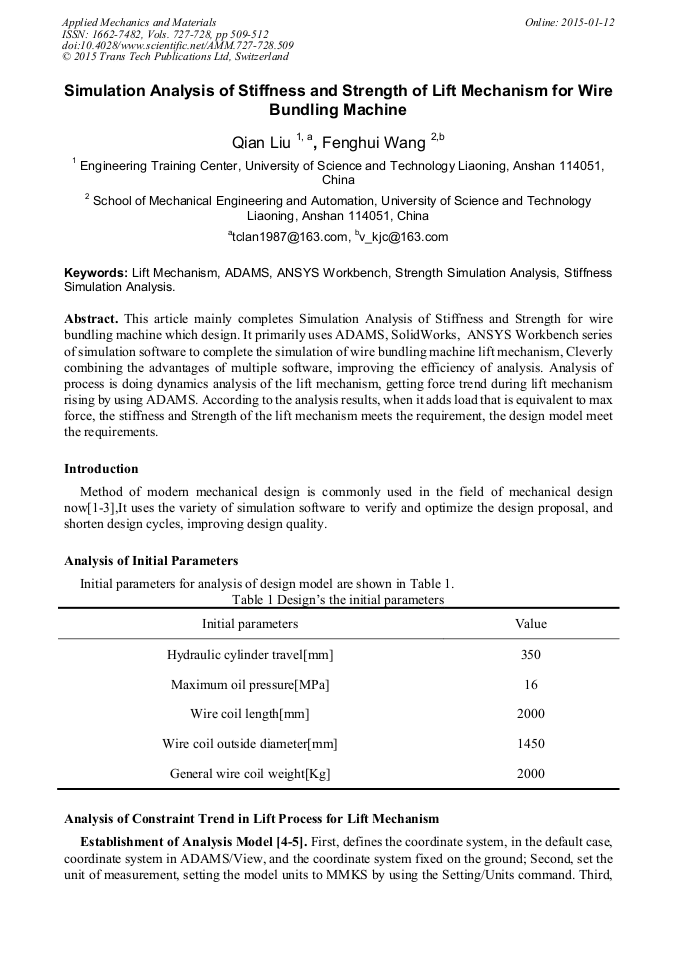

Simulation Analysis of Stiffness and Strength of Lift Mechanism for Wire Bundling Machine

Abstract:

This article mainly completes Simulation Analysis of Stiffness and Strength for wire bundling machine which design. It primarily uses ADAMS, SolidWorks, ANSYS Workbench series of simulation software to complete the simulation of wire bundling machine lift mechanism, Cleverly combining the advantages of multiple software, improving the efficiency of analysis. Analysis of process is doing dynamics analysis of the lift mechanism, getting force trend during lift mechanism rising by using ADAMS. According to the analysis results, when it adds load that is equivalent to max force, the stiffness and Strength of the lift mechanism meets the requirement, the design model meet the requirements.
